Reverse Servo Assembly: Removal

Raise and support the vehicle.
Drain the transmission fluid.

Fig 1: Identifying Transmission Drain Plug
Remove the converter housing plug.

Fig 2: Identifying Converter Housing Plug
Remove the drain plug.

Fig 3: Identifying Torque Converter Drain Plug
Remove the shift cable bracket.

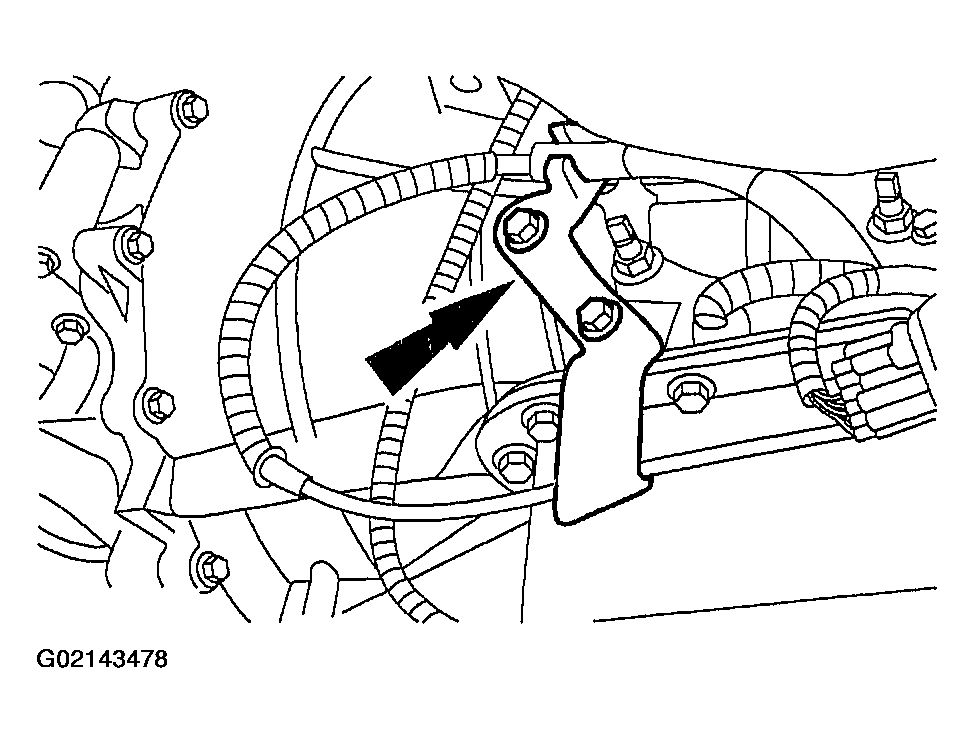

Fig 4: Identifying Transmission Shift Cable Bracket

NOTE: The transmission fluid pan gasket is reusable, clean and inspect for damage; if not damaged, the gasket should be reused.

Fig 5: Identifying Transmission Oil Pan Gasket

Remove the transmission fluid pan and gasket.
Remove the transmission fluid filter.

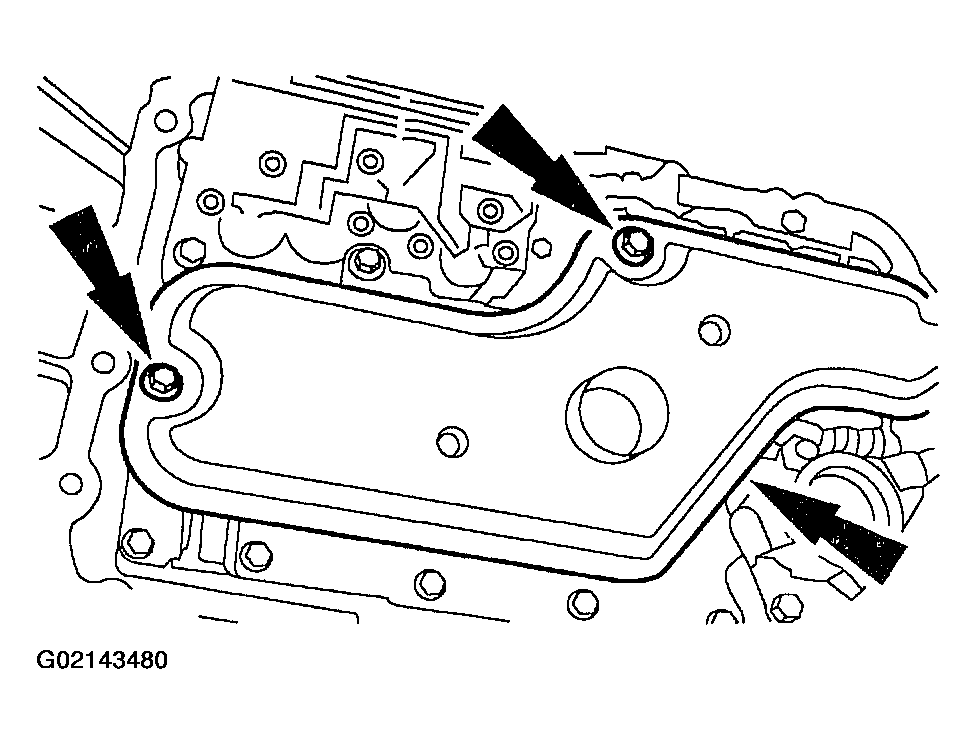

Fig 6: Identifying Transmission Oil Filter & Bolts
Remove the reverse servo.

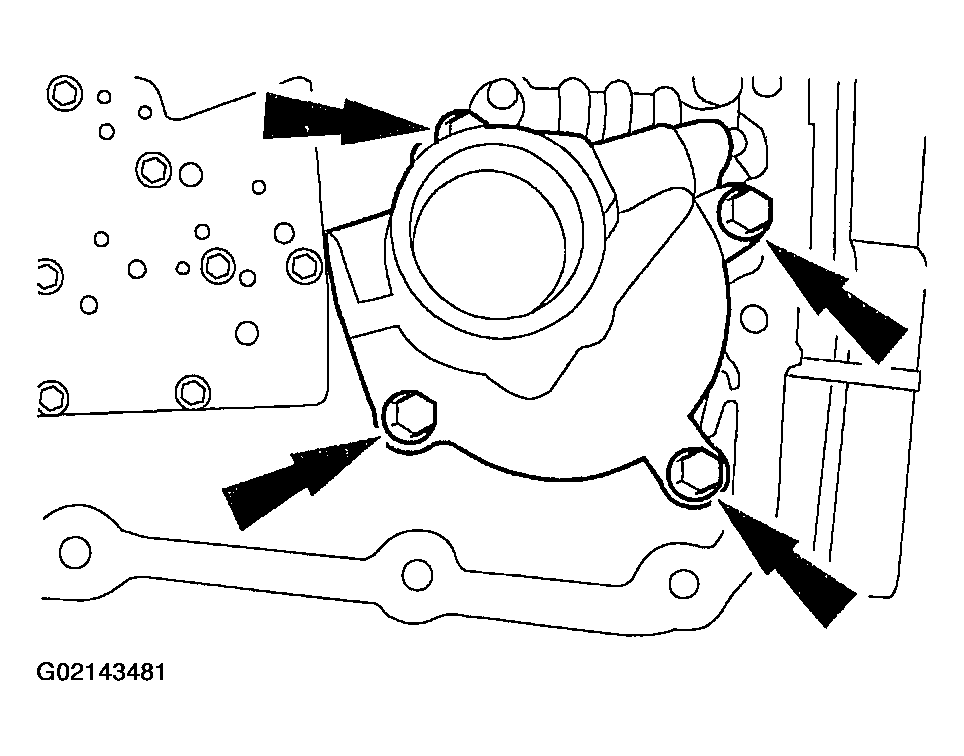

Fig 7: Identifying Reverse Servo & Bolts
