Extension Housing Seal: Installation

  1. Using the special tool, install the extension housing seal.
    Fig 1: Installing Extension Housing Seal
    G02143413
  2. Using the special tools, install the output flange.
    Fig 2: Installing Output Flange
    G02143414
  3. Install a new nut.

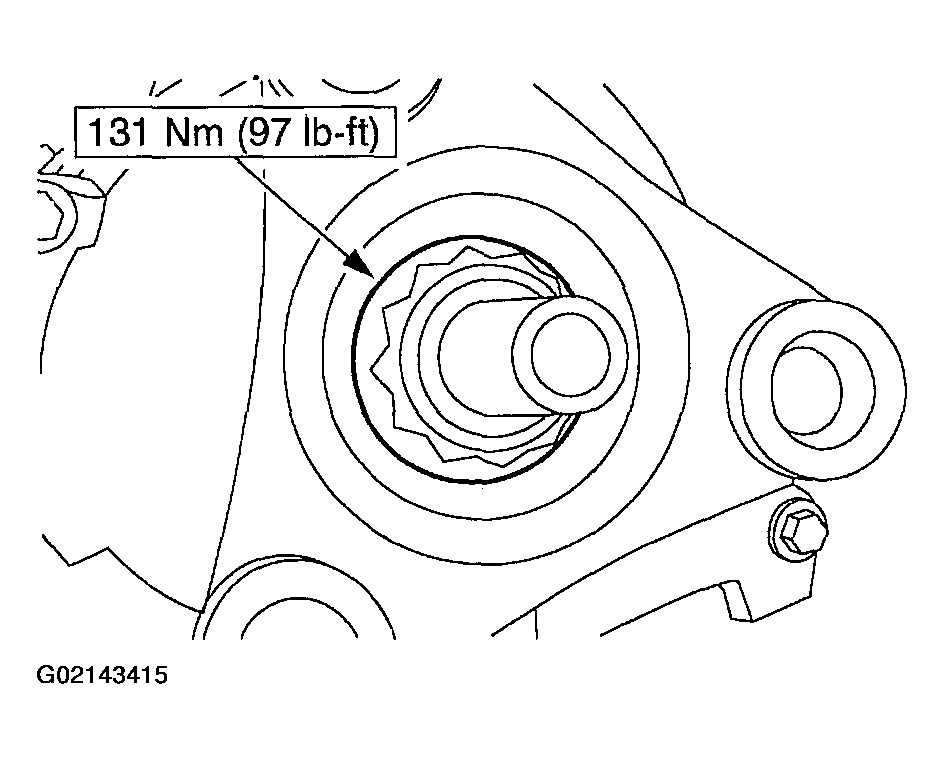

    Fig 3: Installing Output Flange Nut
    G02143415
  4. Install the driveshaft. For additional information, refer to ASSEMBLY .
  5. Install the exhaust.
  6. Fill the transmission to the correct fluid level and check for correct transmission operation. For additional information, refer to FLUID LEVEL CHECK .
