Extension Housing Gasket: Installation

Clean the extension housing and install new extension housing gasket. Make sure that the park pawl is installed correctly.

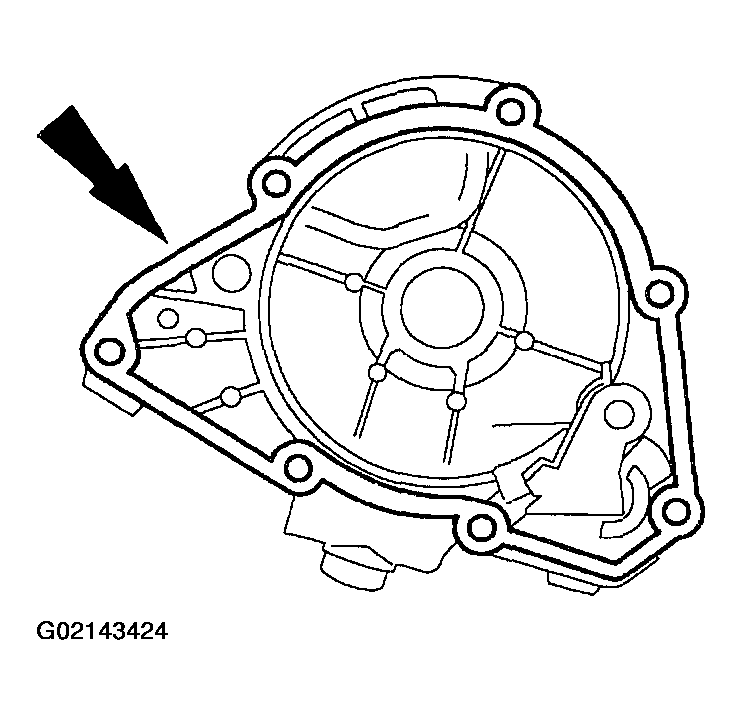

Fig 1: Identifying Extension Housing Gasket

CAUTION: Make sure the parking lever actuating rod is correctly seated into the case parking rod guide cup.

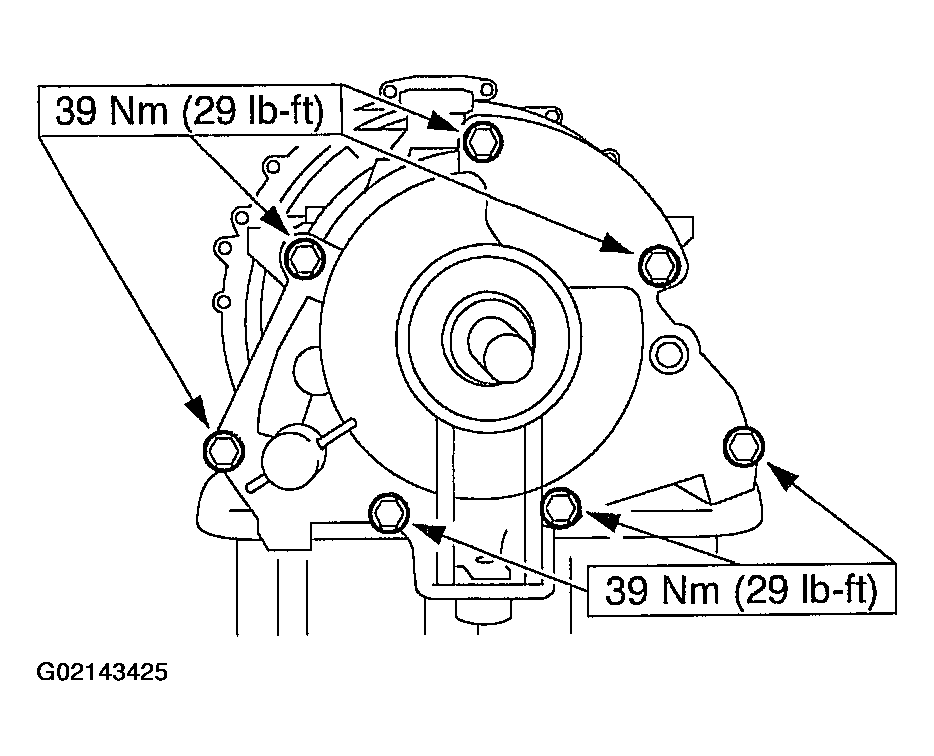

Fig 2: Tightening extension housing Bolts

Install the extension housing.
Install the shift cable.

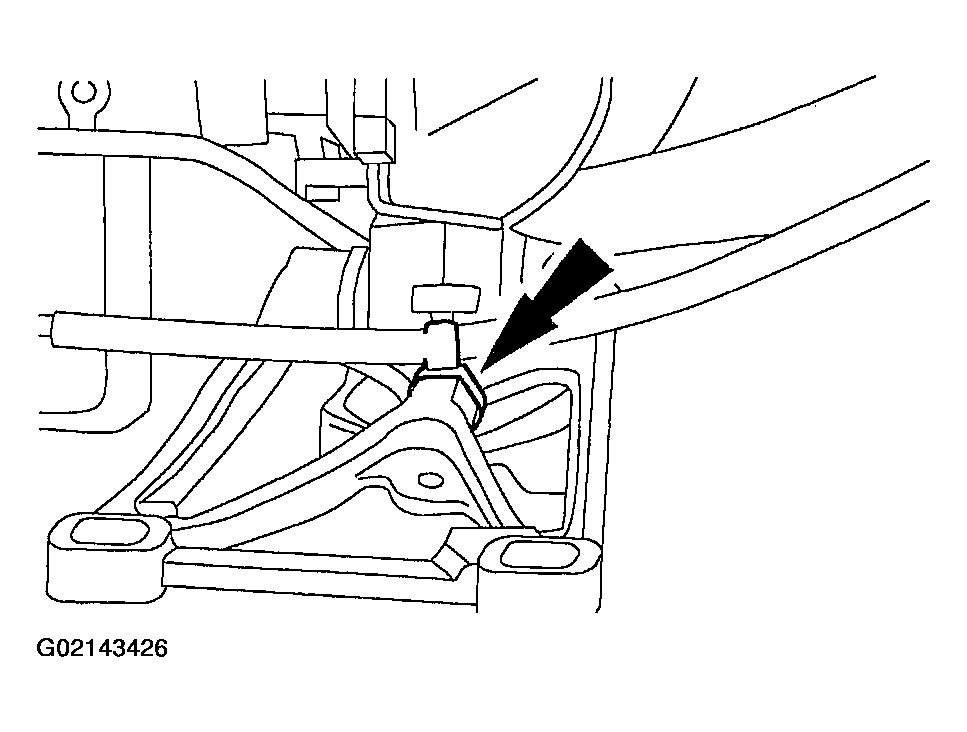

Fig 3: Identifying Shift Cable Retainer
Install the rear mount.

Fig 4: Identifying Transmission Mount Bolt
Install the rear mount.

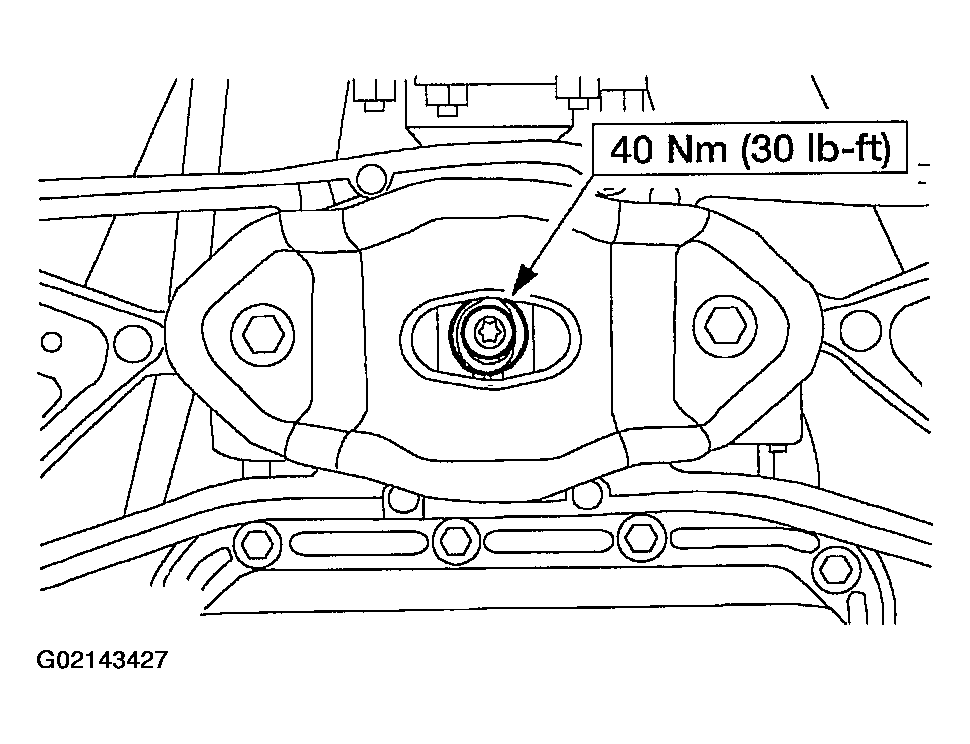

Fig 5: Tightening Transmission Crossmember Bolts
Using the special tools, install the output flange.

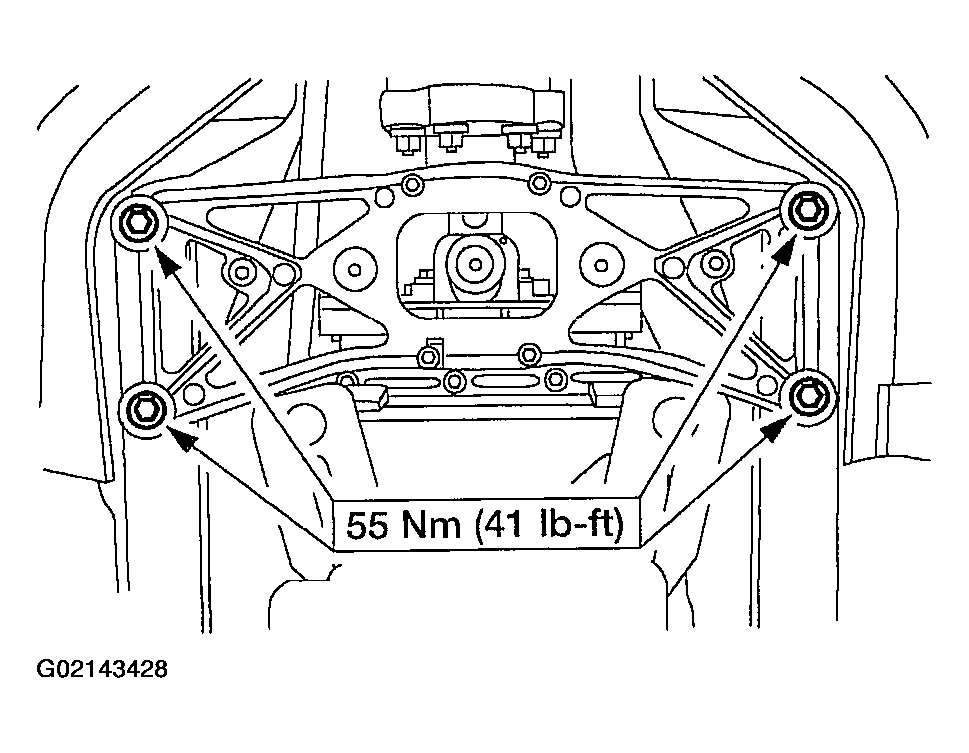

Fig 6: Installing Output Flange
Install a new nut.

Fig 7: Tightening Output Flange Nut
Install the driveshaft. For additional information, refer to ASSEMBLY .
Install the exhaust.
Fill the transmission to the correct fluid level and check for correct transmission operation. For additional information, refer to FLUID LEVEL CHECK .
