Overdrive Planetary Gears: Disassembly

CAUTION: New planetary gears must be installed. Do not restake the originals.

NOTE: Individual parts of the planetary carriers are not serviceable.

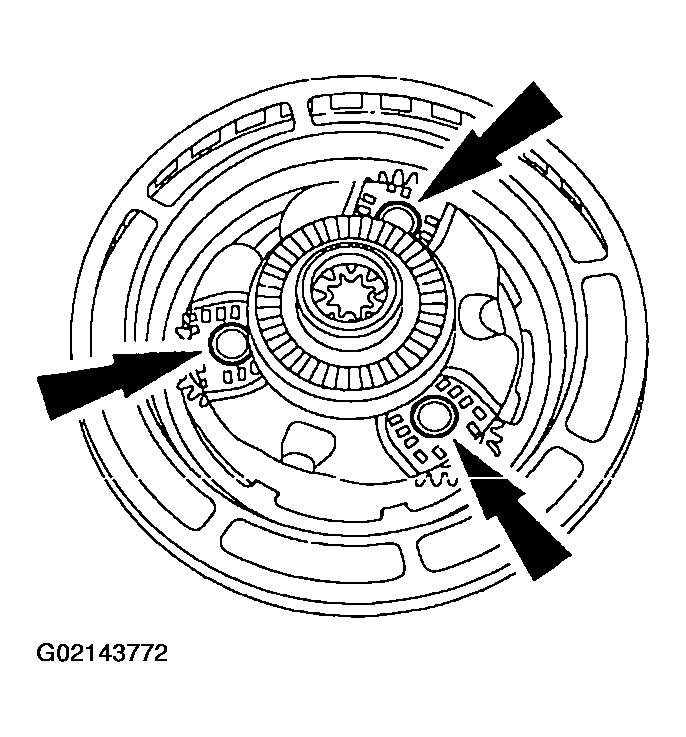

Fig 1: Identifying Shaft Retaining Pins

Before installing a planetary assembly, the shaft retaining pins should be checked for adequate staking. Check the pins and shafts in the planetary assemblies for loose fit and/or complete disengagement. Install a new planetary assembly if necessary.
Inspect the pinion gears for damaged or excessively worn teeth, and for free rotation.

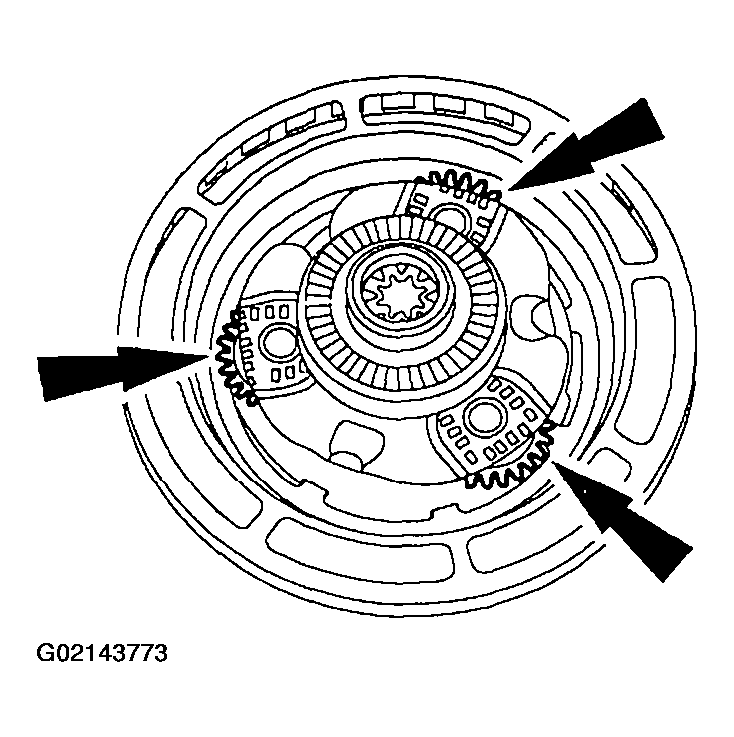

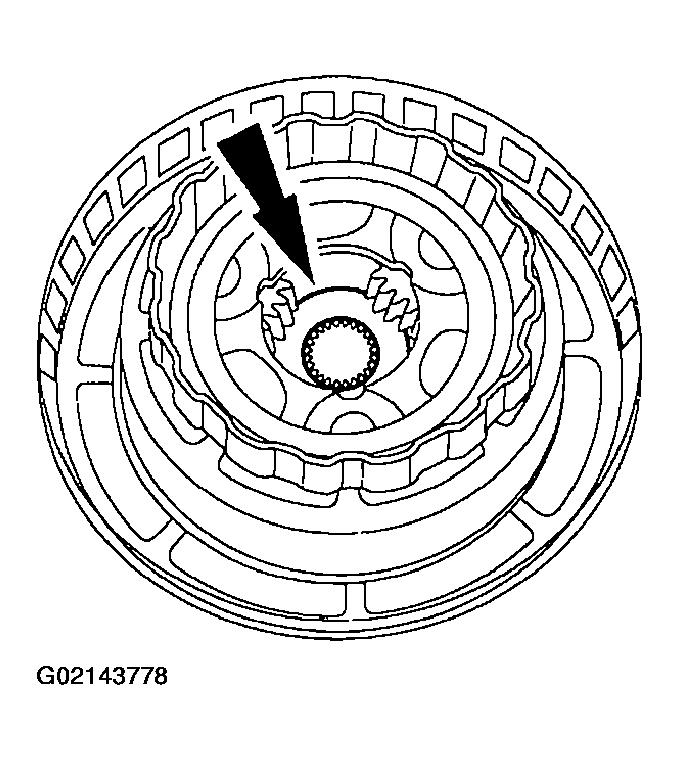

Fig 2: Identifying Pinion Gears
Inspect the overdrive one-way clutch inner race, and the inner and outer races for scored or damaged surface areas where the rollers contact the races.

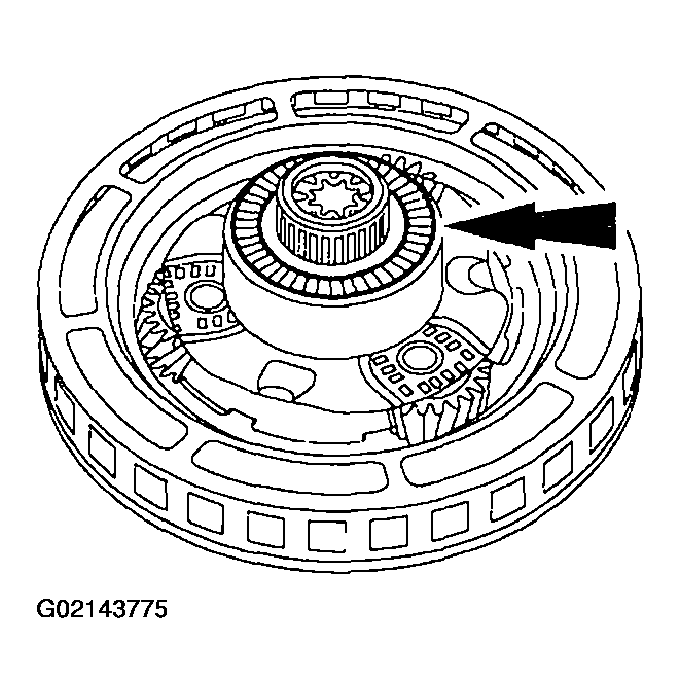

Fig 3: Identifying Overdrive One-Way Clutch Inner Race
Remove and inspect the No. 2 overdrive planetary thrust bearing on the nose of the overdrive planetary gear carrier assembly.

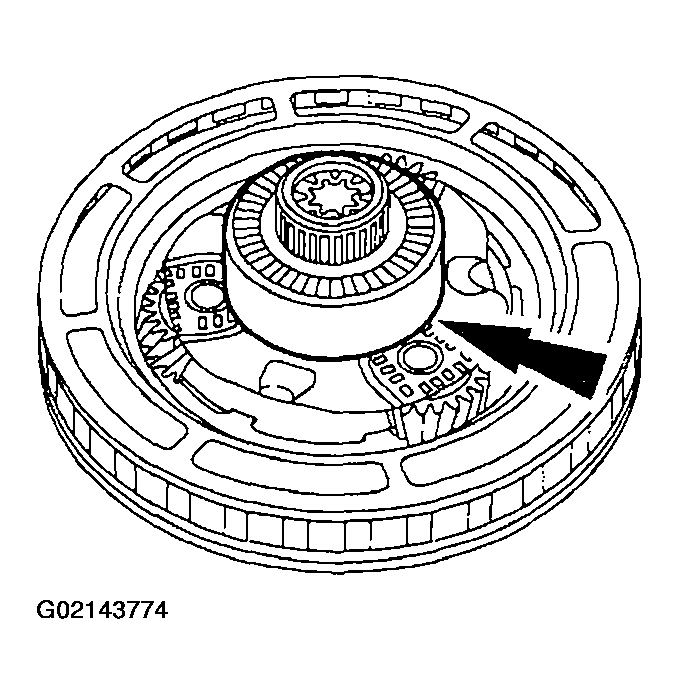

Fig 4: Identifying No. 2 Overdrive Planetary Thrust Bearing

NOTE: Inspect the sun gear for damaged or worn teeth.

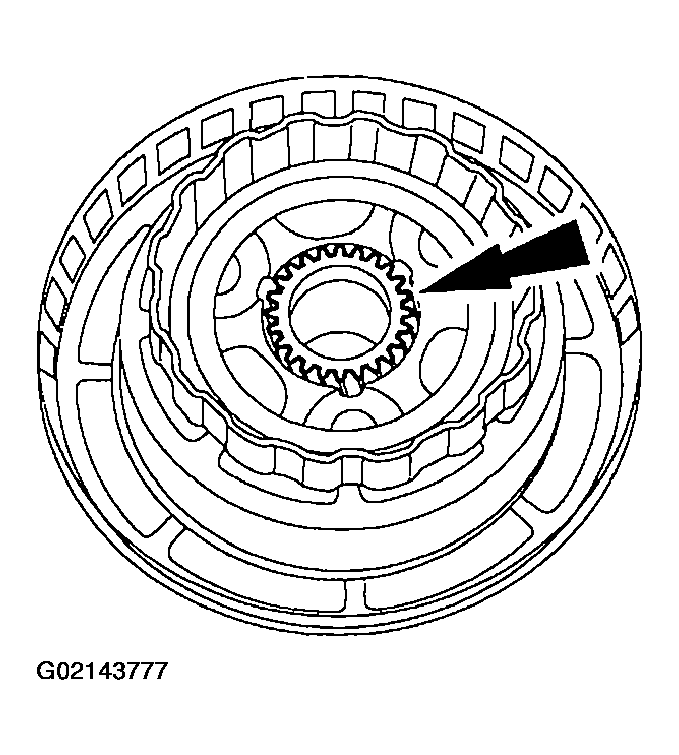

Fig 5: Identifying Coast Clutch-To-Overdrive Carrier Adapter

CAUTION: Do not attempt to remove the No. 12 bearing from behind the pinion gears.

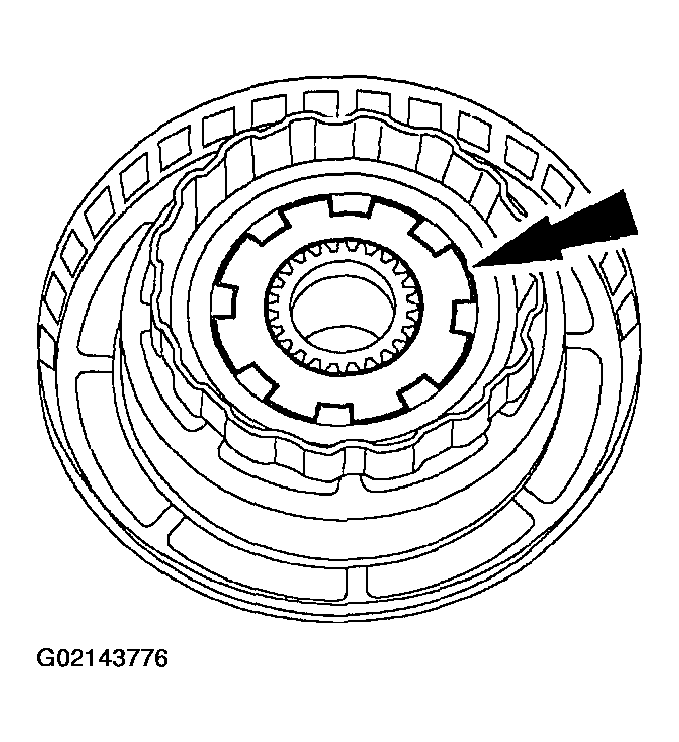

Fig 7: Identifying No. 12 Bearing
