Overdrive Planetary Gears: Assembly

NOTE: Thoroughly clean all parts and blow dry with moisture-free compressed air.

NOTE: Use petroleum jelly to hold the No. 2 overdrive planetary thrust bearing in place.

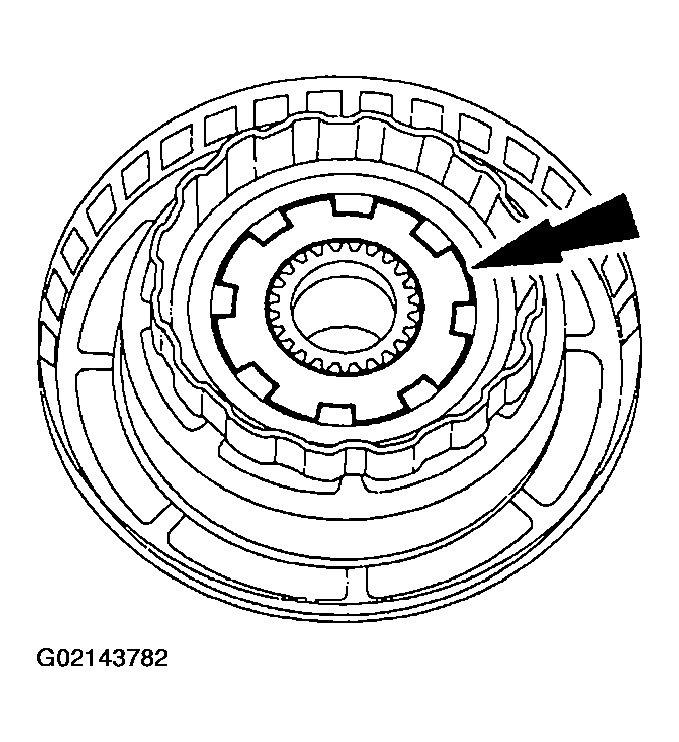

Fig 1: Identifying No. 2 Overdrive Planetary Thrust Bearing

Install the No. 2 overdrive planetary thrust bearing.
Install the overdrive planetary gear carrier into the center shaft and overdrive.

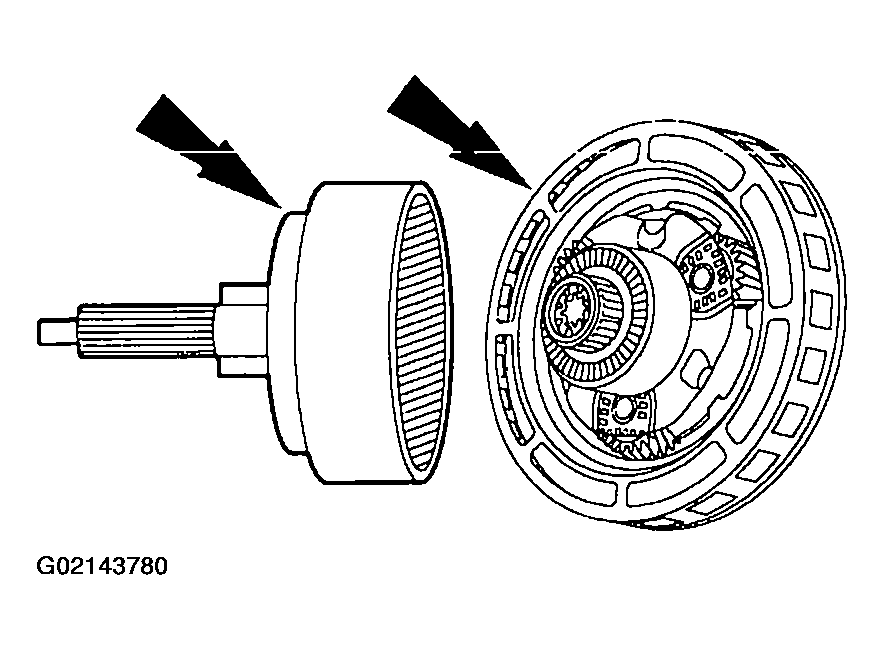

Fig 2: Identifying Overdrive Planetary Gear Carrier & Overdrive
Install the overdrive sun gear with the recessed gear teeth facing toward the adapter.

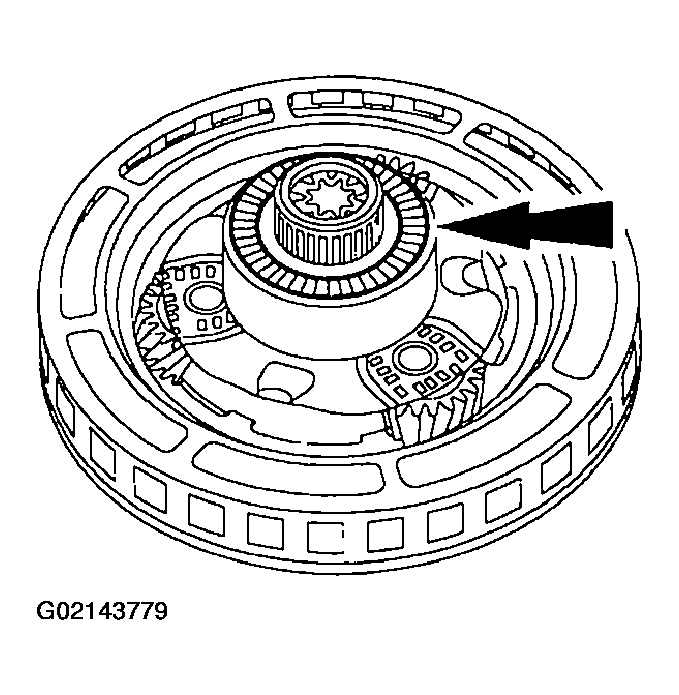

Fig 3: Identifying Overdrive Sun Gear

NOTE: Inspect the sun gear for damaged or worn teeth.

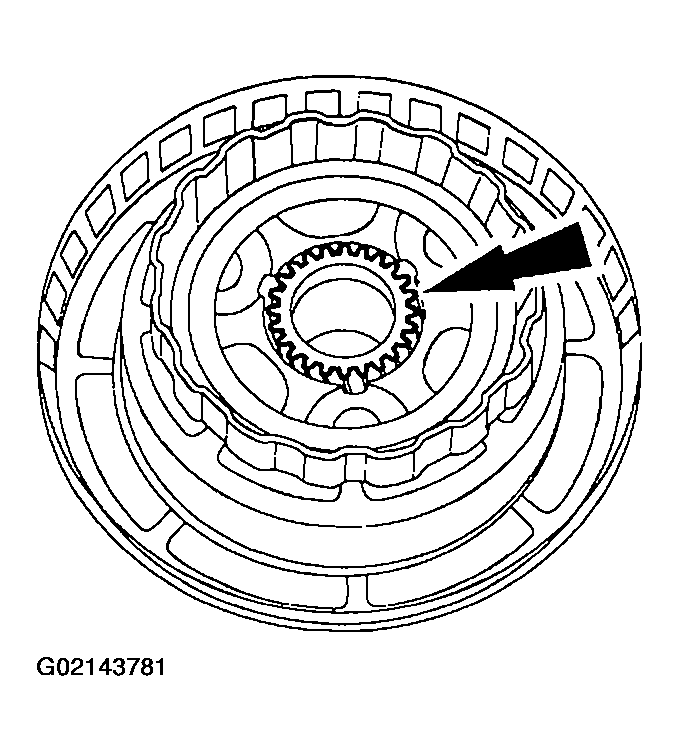

Fig 4: Identifying Coast Clutch-To-Overdrive Carrier Adapter
