Home >> Lincoln >> 2001 >> LS 3.9 A >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transmission >> Disassembly & Assembly Of Subassemblies >> Overdrive Planetary & One-Way Clutch Assembly >> Notes

Overdrive Planetary & One-Way Clutch Assembly: Notes

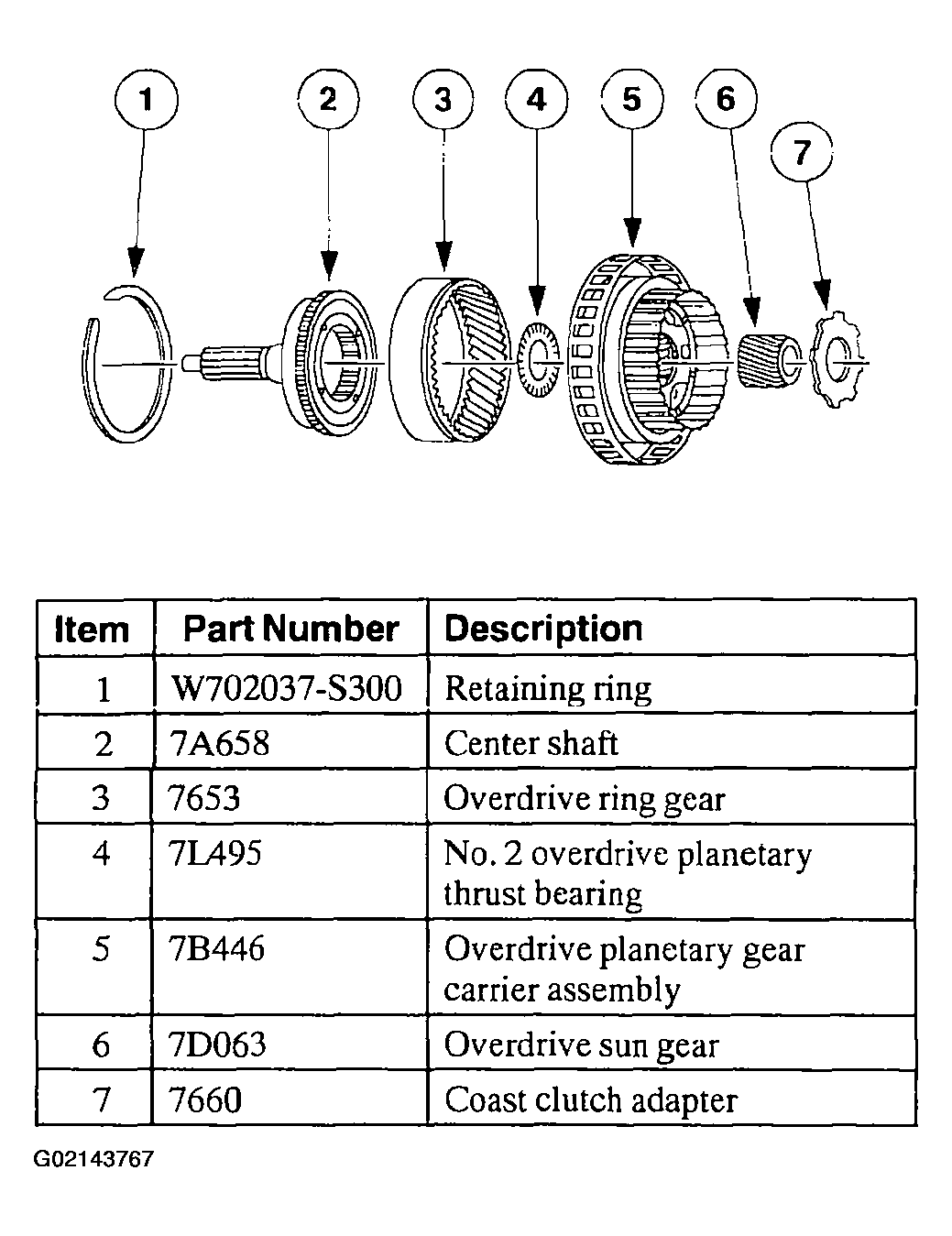

Fig 1: Overdrive Planetary & One-Way Clutch Assembly - Exploded View

G02143767
