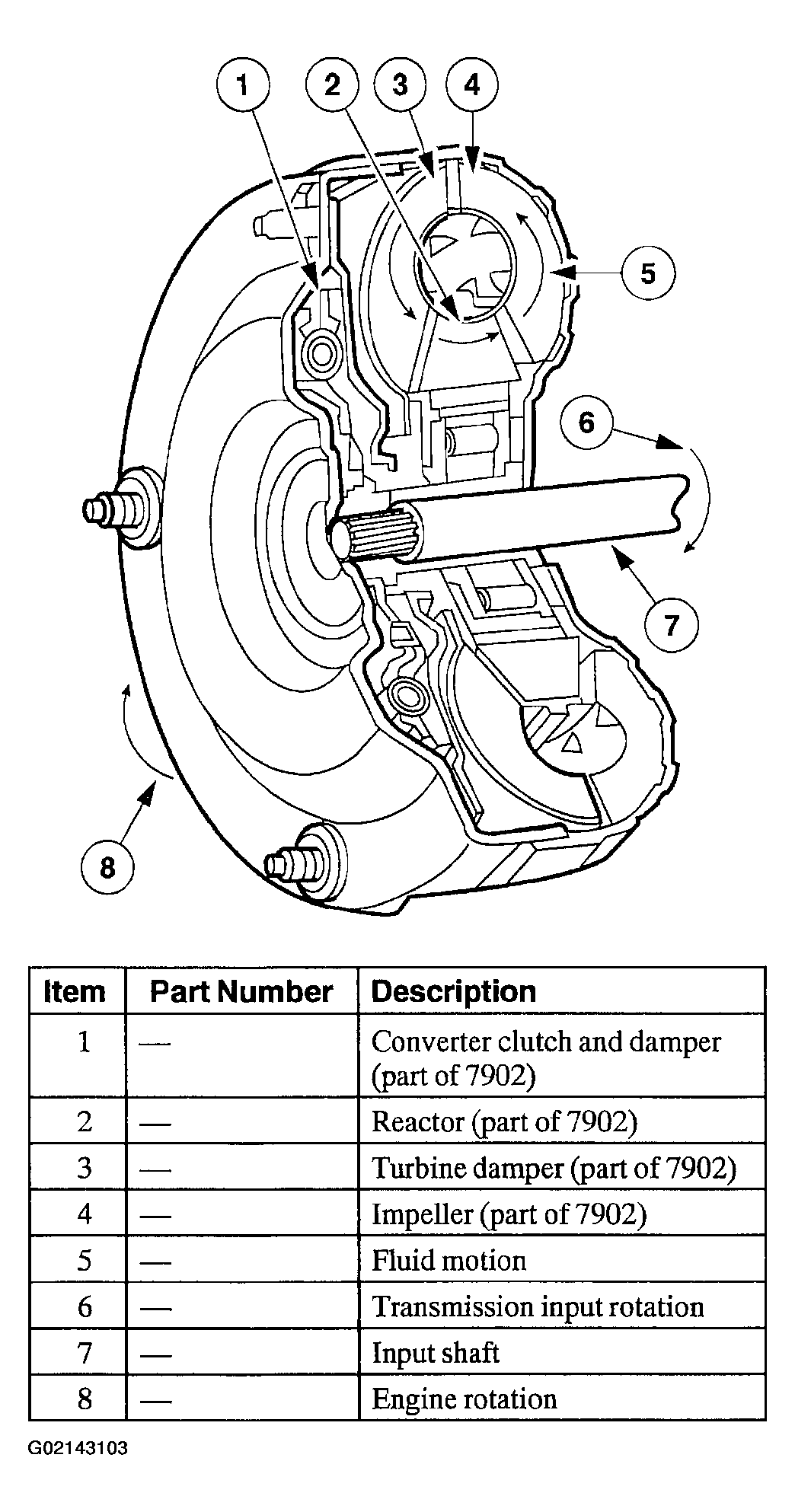

Torque Converter
The torque converter transmits and multiplies torque. The torque converter is a four-element device:
- Impeller Assembly
- Turbine And Damper Assembly
- Reactor Assembly
- Clutch
The standard torque converter components operate as follows:
- Rotation of the converter housing and impeller set the fluid in motion.
- The turbine reacts to the fluid motion from the impeller, transferring rotation to the geartrain through the input shaft.
- The reactor redirects fluid going back into the impeller, allowing for torque multiplication.
- The clutch and damper assembly dampens powertrain torsional vibration and provides a direct mechanical connection for improved efficiency.
- Power is transmitted from the torque converter to the planetary gearsets and other components through the input shaft.
