Connector Identification

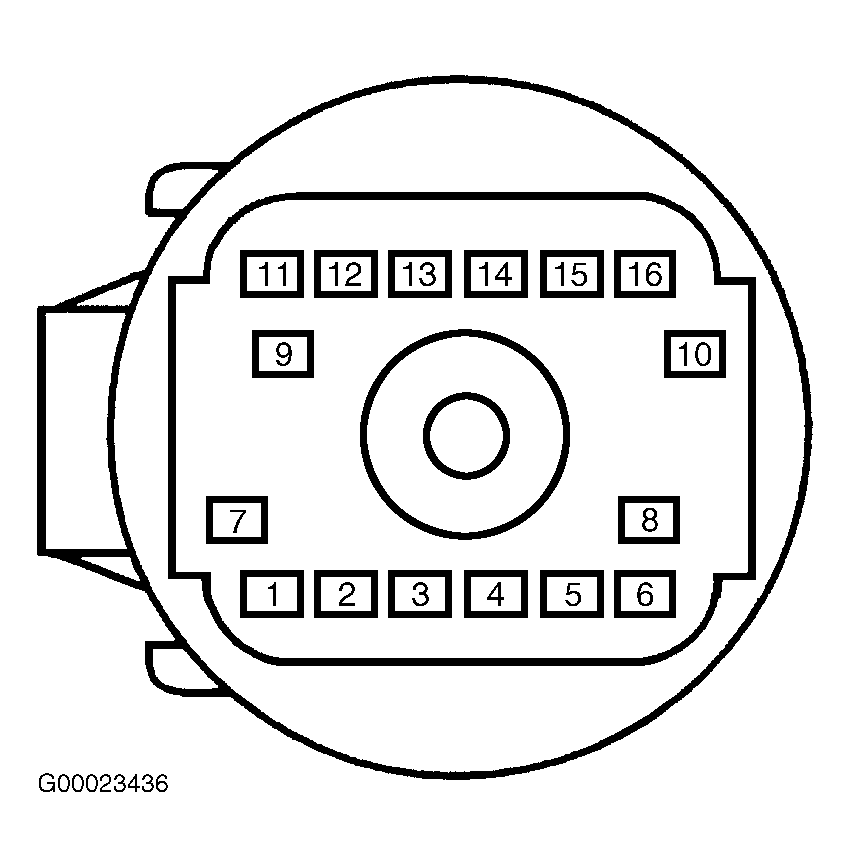

Fig 1: Identifying Transmission 16-Pin Harness Connector Terminals
G00023436Courtesy of FORD MOTOR CO.
Fig 2: Identifying PCM Harness Connector Terminals C175a, C175b & C175c
G00011081Courtesy of FORD MOTOR CO.
Fig 3: Identifying Digital TR Sensor Harness Connector Terminals
G98I01956Courtesy of FORD MOTOR CO.
Fig 4: Identifying ISS, OSS Or TSS Sensor Harness Connector Terminals
G00023438Courtesy of FORD MOTOR CO.
Fig 5: Identifying Gearshift Lever Harness Connector C307 Terminals
G99J08374Courtesy of FORD MOTOR CO.

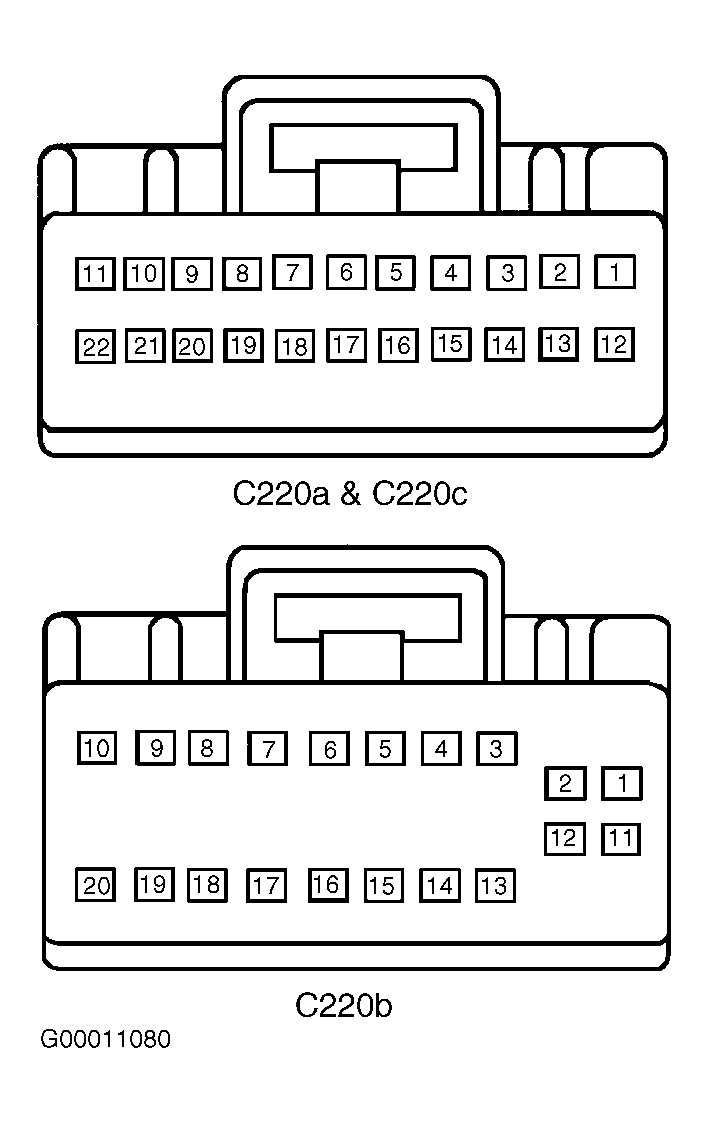

Fig 6: Identifying Instrument Cluster Harness Connector Terminals
G00011080Courtesy of FORD MOTOR CO.
