Removal And Installation: Tubes: Installation

Install the fluid cooler tube onto the radiator.
Install the upper fitting into the transaxle.

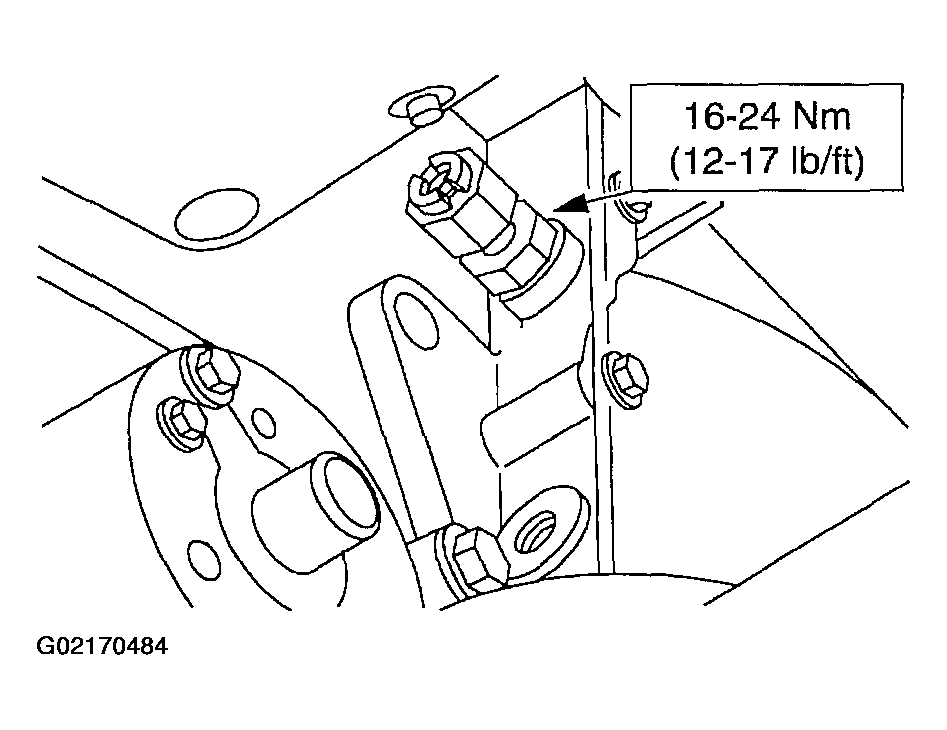

Fig 1: Installing Upper Fitting Into Transaxle
Connect the fluid cooler inlet tube and the fluid cooler tube to the transaxle by inserting the line into the fitting until the retainer engages the first tube bead. (A definite "click" should be heard.) Pull back on the line to verify full engagement.

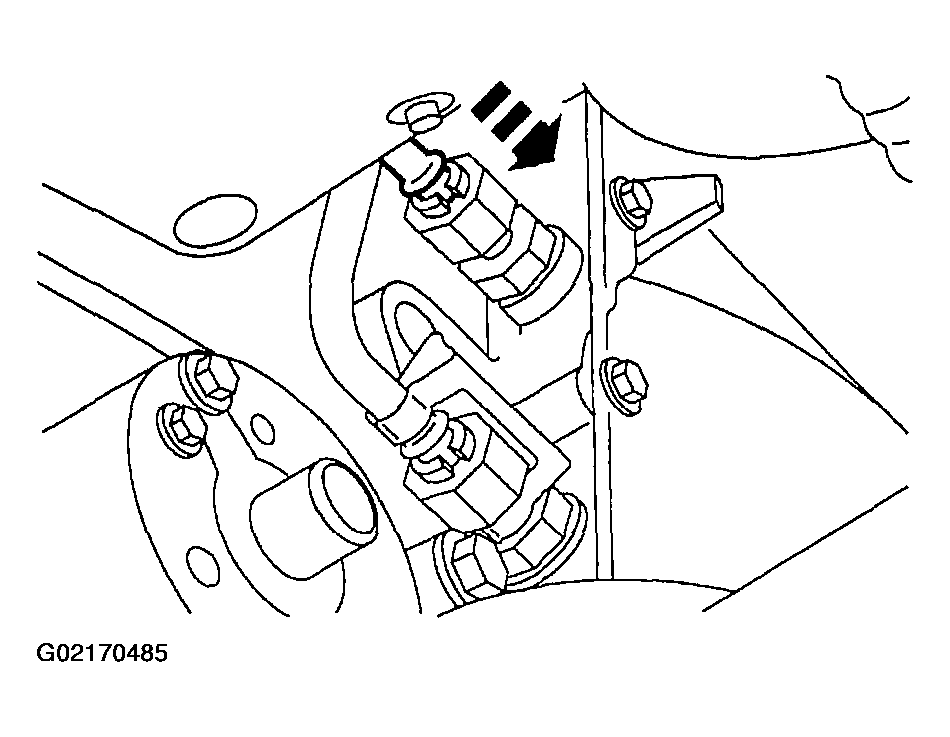

Fig 2: Connecting Fluid Cooler Inlet Tube & Fluid Cooler Tube To Transaxle
Install the retaining clip.

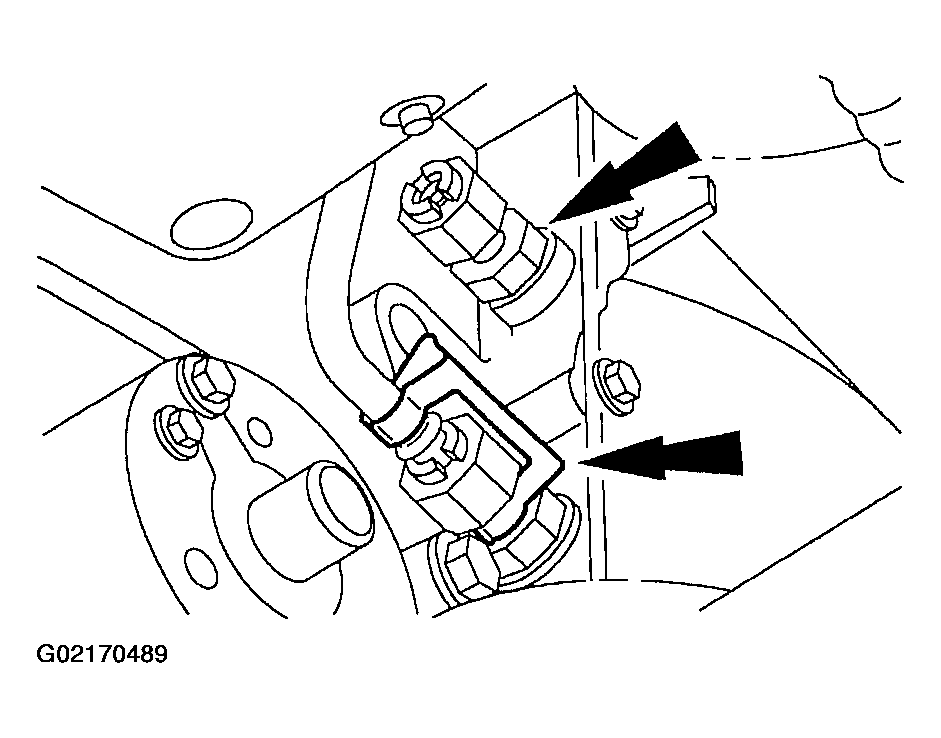

Fig 3: Installing Retaining Clip
Install the fluid cooler tube onto the radiator.
Install the lower fitting into the transaxle.

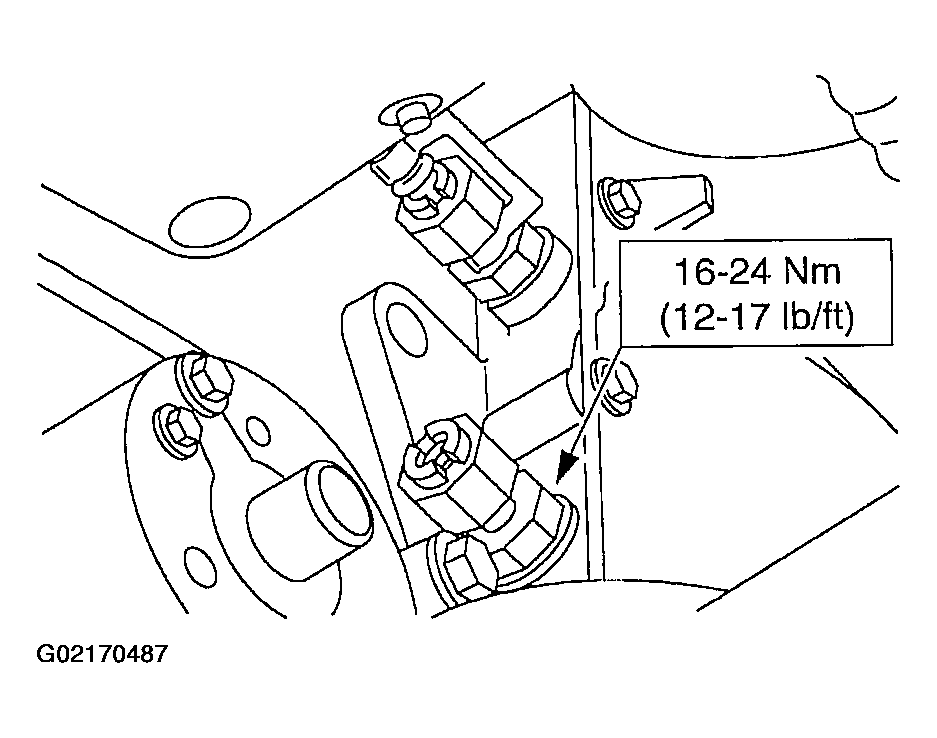

Fig 4: Installing Lower Fitting Into Transaxle
Connect the fluid cooler tube to the transaxle by inserting the line into the fitting until the retainer engages the first tube bead. (A definite "click" should be heard.) Pull back on the line to verify full engagement.

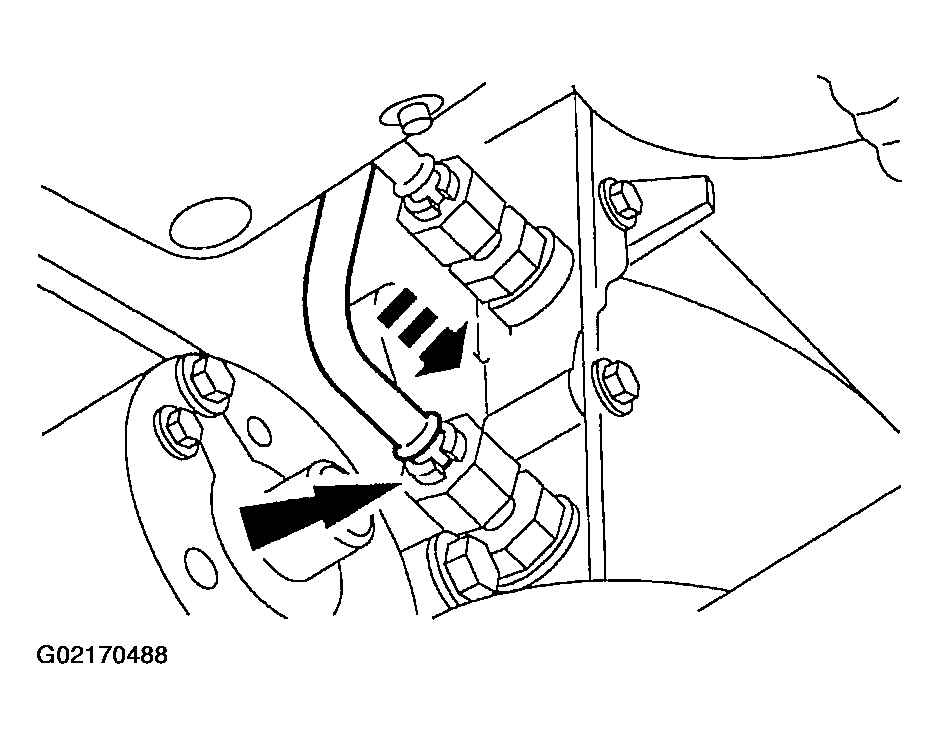

Fig 5: Connecting Fluid Cooler Tube To Transaxle
Install the retaining clip.

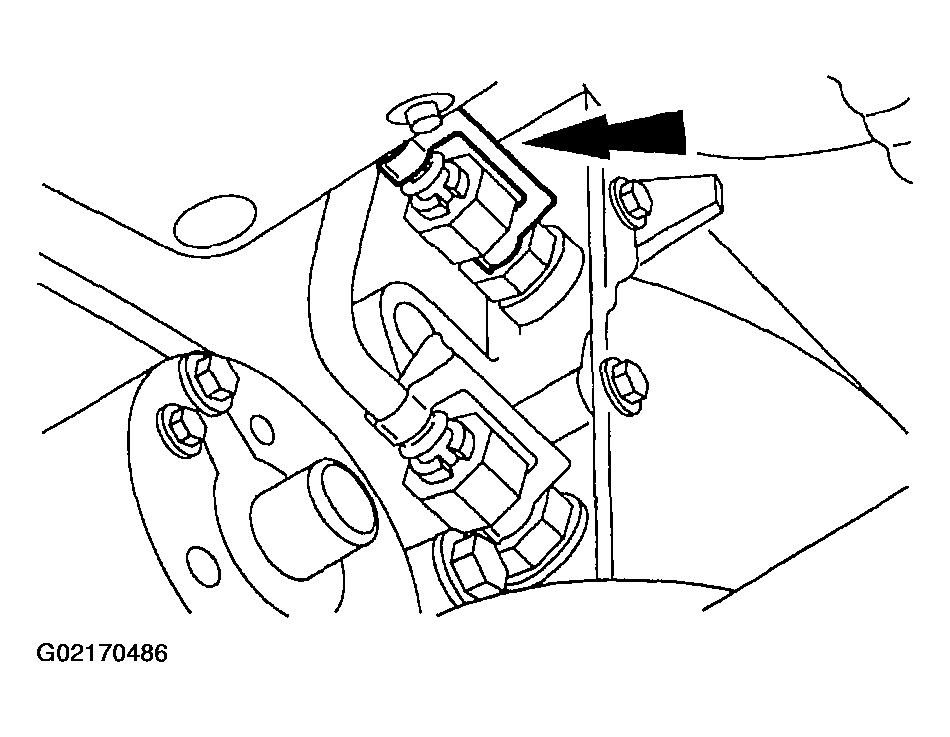

Fig 6: Installing Retaining Clip
Lower the vehicle. Fill the transaxle to the proper level and check for leaks.
