Verify System
To verify system, use prove out system procedure with Air Bag Simulator (105-R0012) in place of the air bag modules. See PROVE OUT SYSTEM .
DIAGNOSTIC SYMPTOMS
| Condition | Go To Test |
|---|---|
| AIR BAG warning light on continuously | TEST A |
| Audible tone-DTCs retrieved | TEST AF TEST AG |
| No communication with RCM | TEST AH |

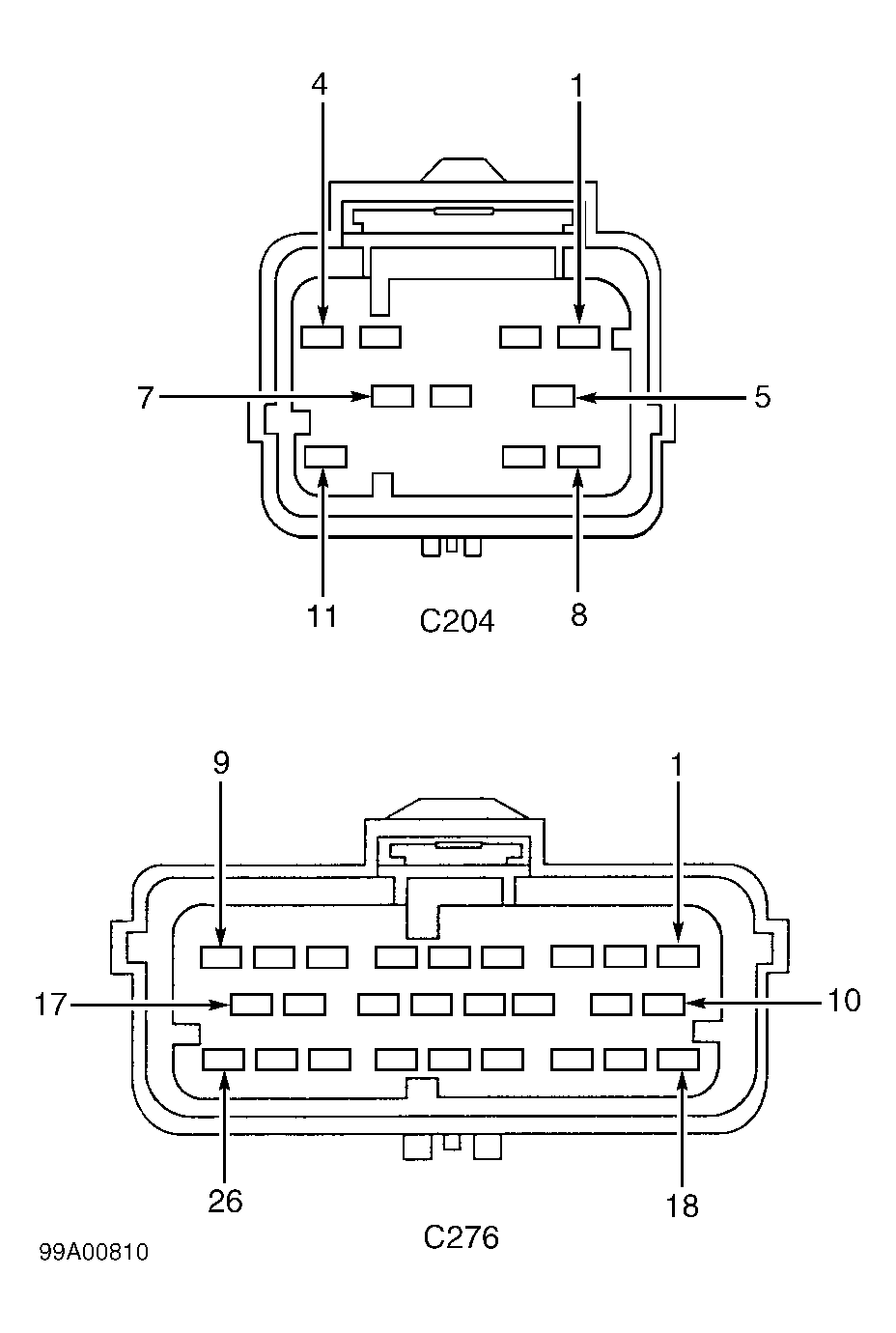

DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
| Fault Code-Flash Code | Go To Test | ||||||
|---|---|---|---|---|---|---|---|
| B1231-19 | TEST C | ||||||
| B1342-24 | TEST B | ||||||
| B1869(1) | TEST AF | ||||||
| B1870(1) | TEST AG | ||||||
| B1887-15 | TEST F | ||||||
| B1888-16 | TEST H | ||||||
| B1891-(2) | TEST AE | ||||||
| B1892-(2) | TEST AD | ||||||
| B1901-14 | TEST N | ||||||
| B1916-15 | TEST G | ||||||
| B1921-21 | TEST D | ||||||
| B1925-16 | TEST I | ||||||
| B1932-32 | TEST J | ||||||
| B1933-33 | TEST K | ||||||
| B1934-34 | TEST L | ||||||
| B1935-35 | TEST M | ||||||
| B1941-41 | TEST O | ||||||
| B1992-36 | TEST W | ||||||
| B1993-36 | TEST V | ||||||
| B1994-36 | TEST X | ||||||
| B1995-36 | TEST Y | ||||||
| B1996-37 | TEST AA | ||||||
| B1997-37 | TEST Z | ||||||
| B1998-37 | TEST AB | ||||||
| B1999-37 | TEST AC | ||||||
| B2440-43 | TEST S | ||||||
| B2441-42 | TEST R | ||||||
| B2444-48 | TEST P | ||||||
| B2445-49 | TEST Q | ||||||
| C1414-29 | TEST E | ||||||
| U2017-44 | TEST T | ||||||
| U2018-45 | TEST U | ||||||
| (3) | TEST AI | ||||||
|
|||||||
