Central Junction Box

NOTE: The central junction box may also be referred to as passenger compartment fuse panel.

NOTE: Central junction box is located under driver's side of instrument panel. See Fig 1.

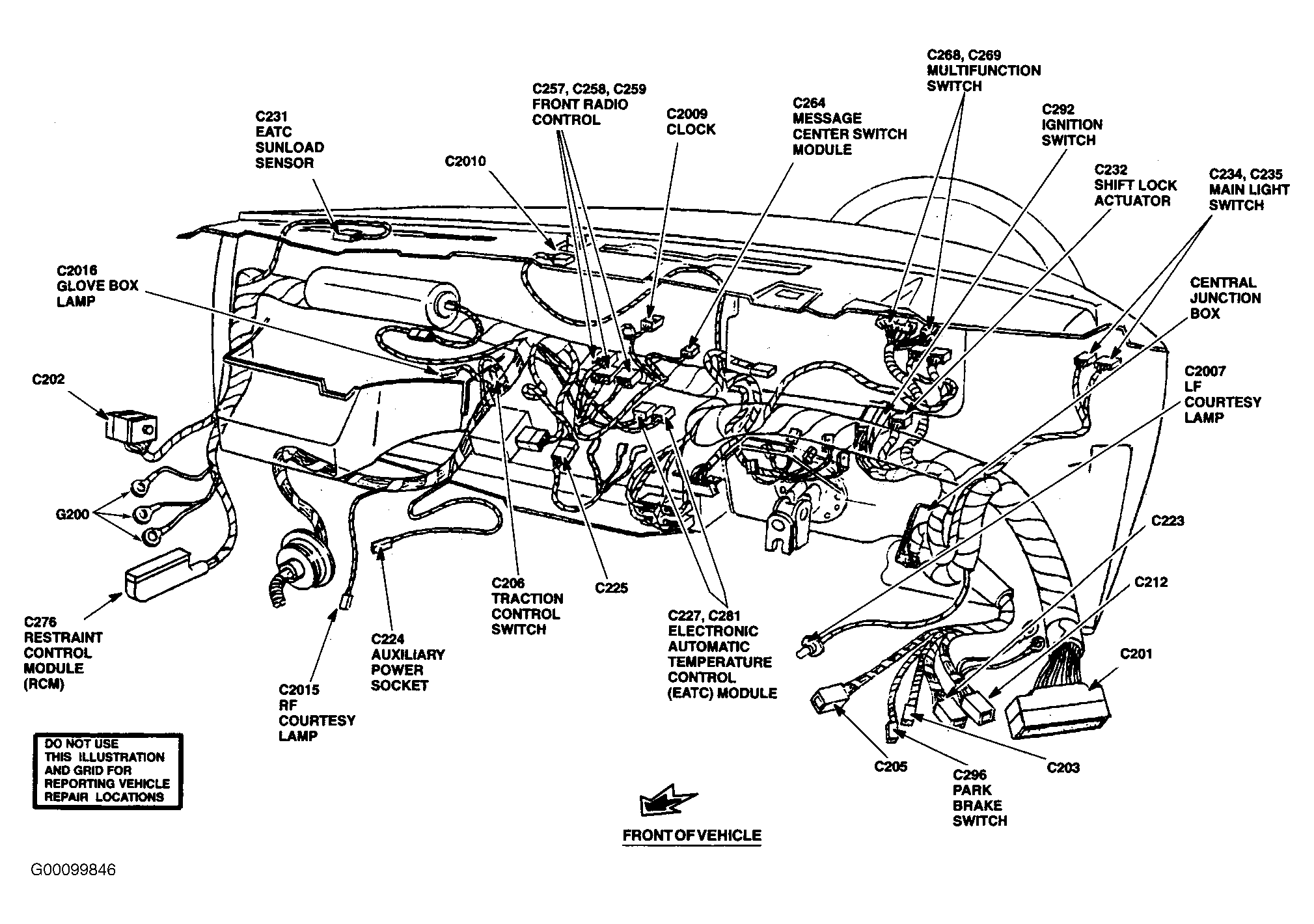

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of FORD MOTOR CO.

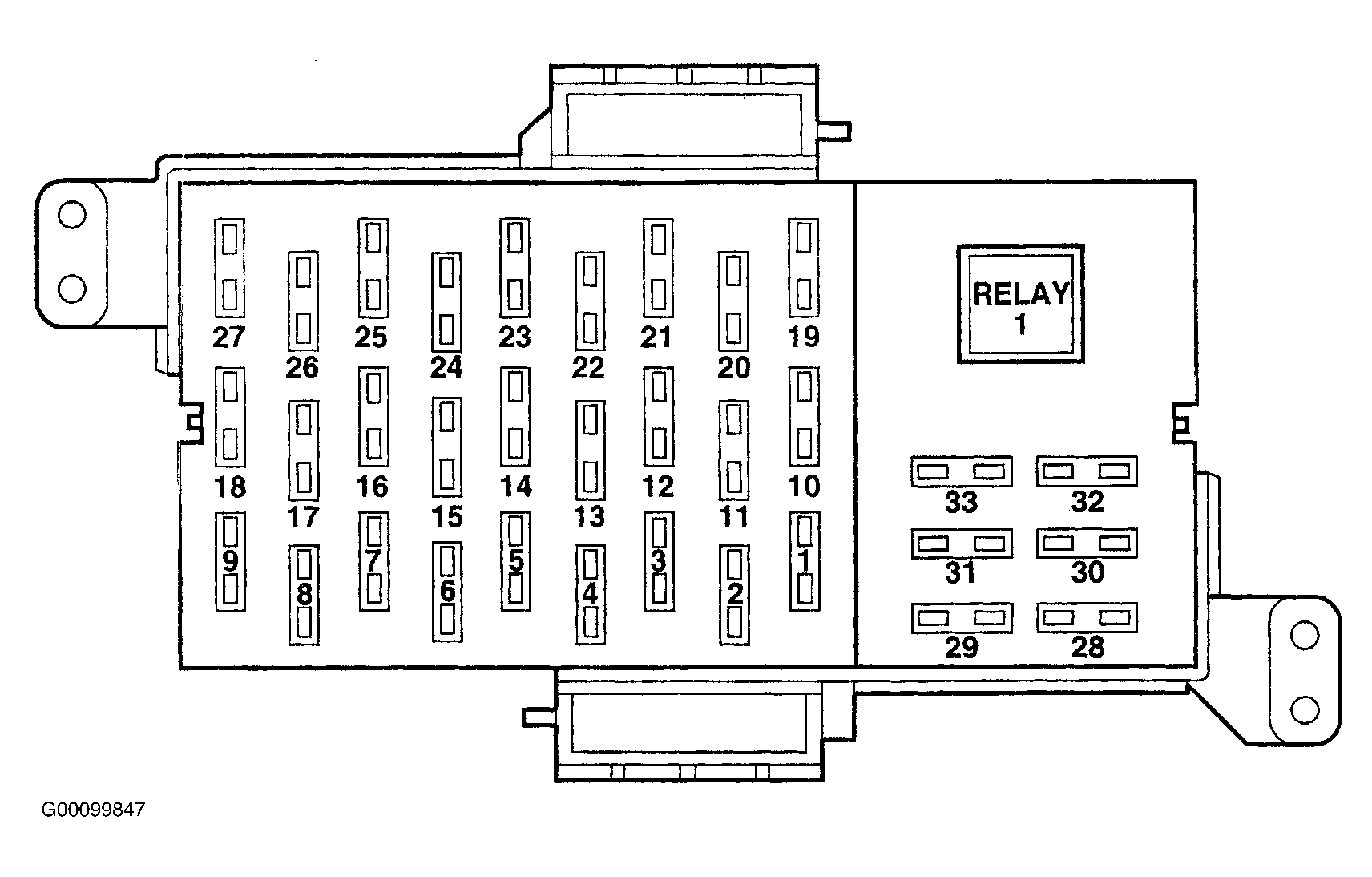

Fig 2: Identifying Central Junction Box Components

Courtesy of FORD MOTOR CO.

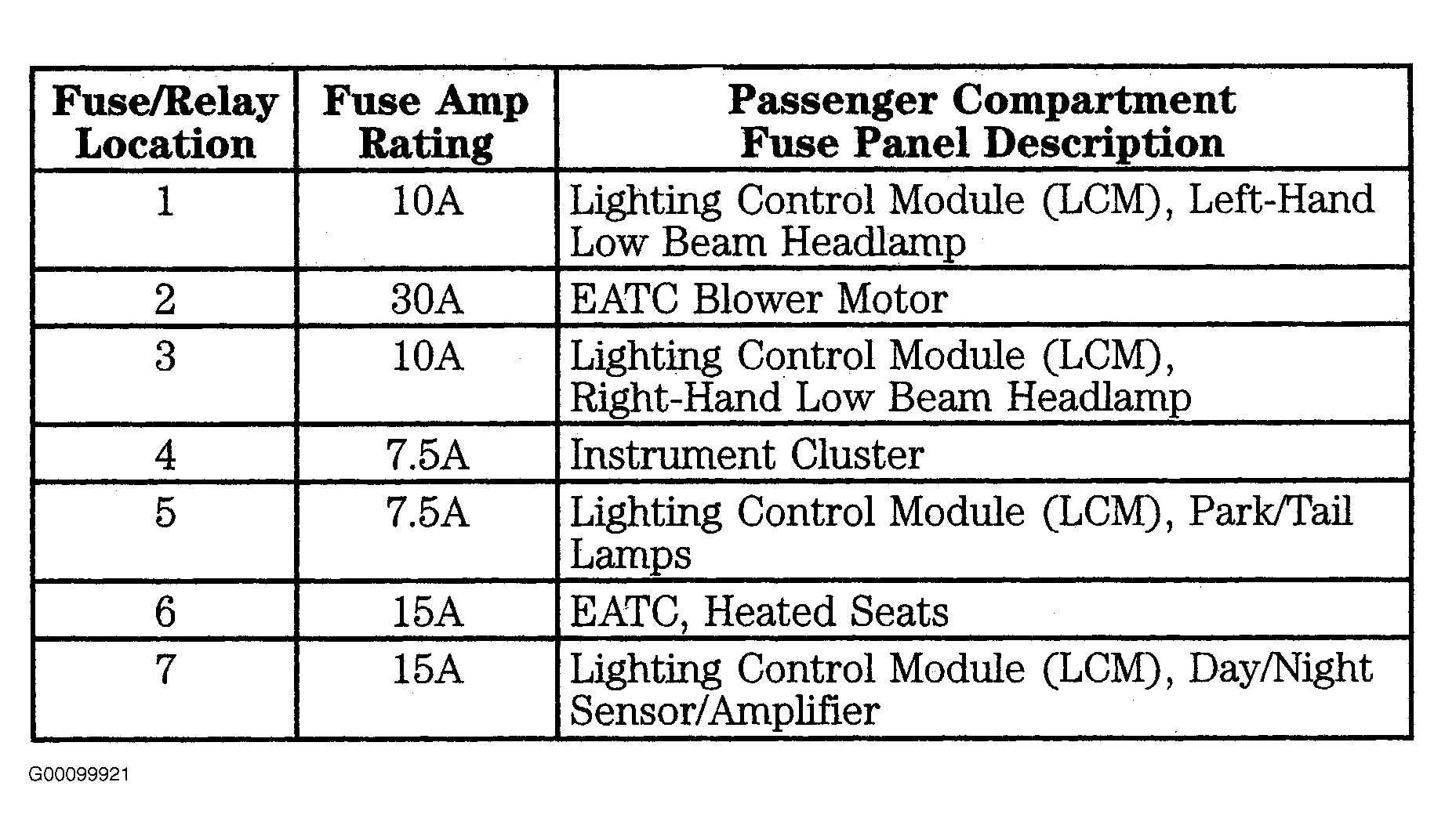

Fig 3: Central Junction Box Legend (1 Of 3)

Courtesy of FORD MOTOR CO.

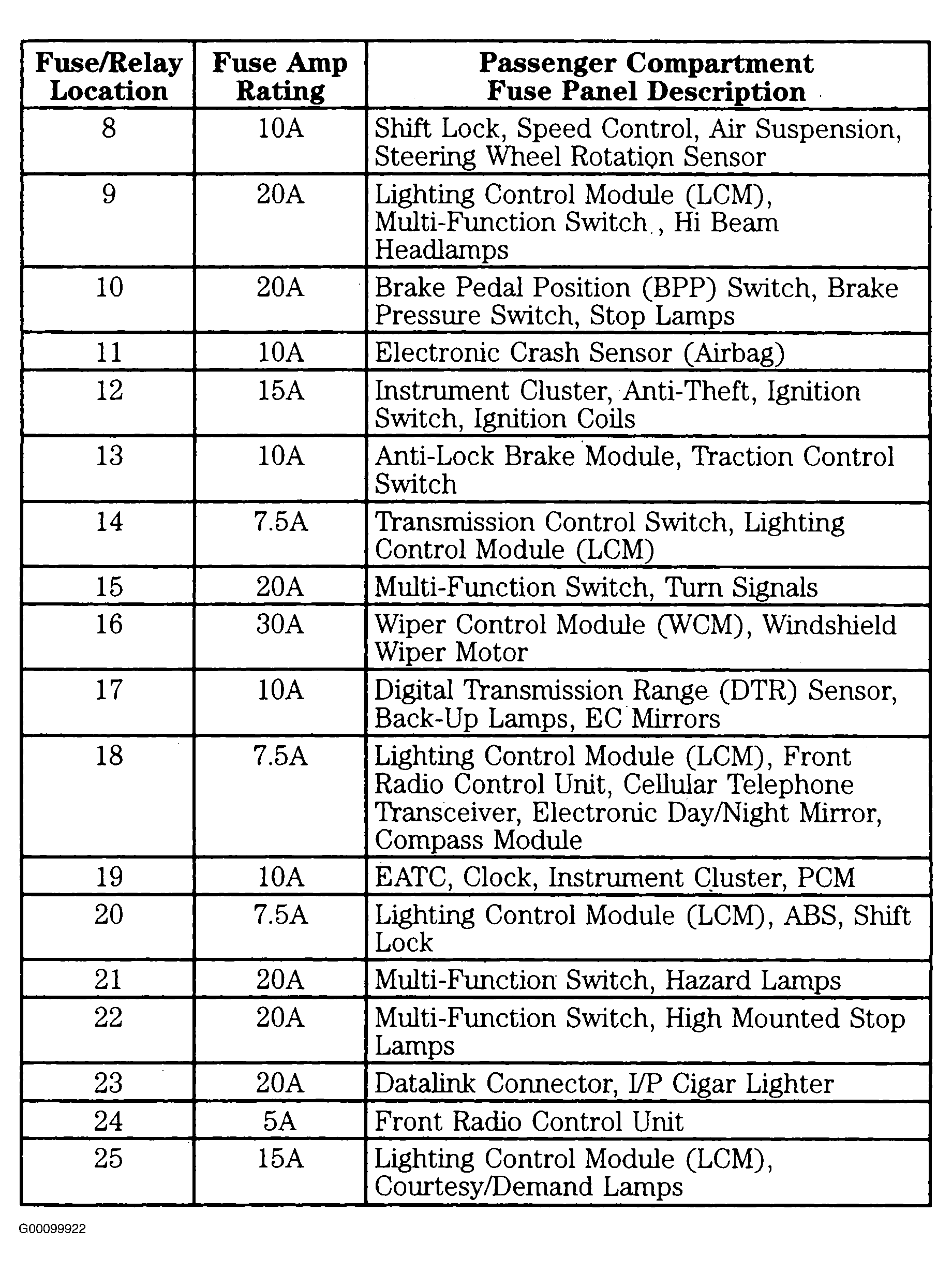

Fig 4: Central Junction Box Legend (2 Of 3)

Courtesy of FORD MOTOR CO.

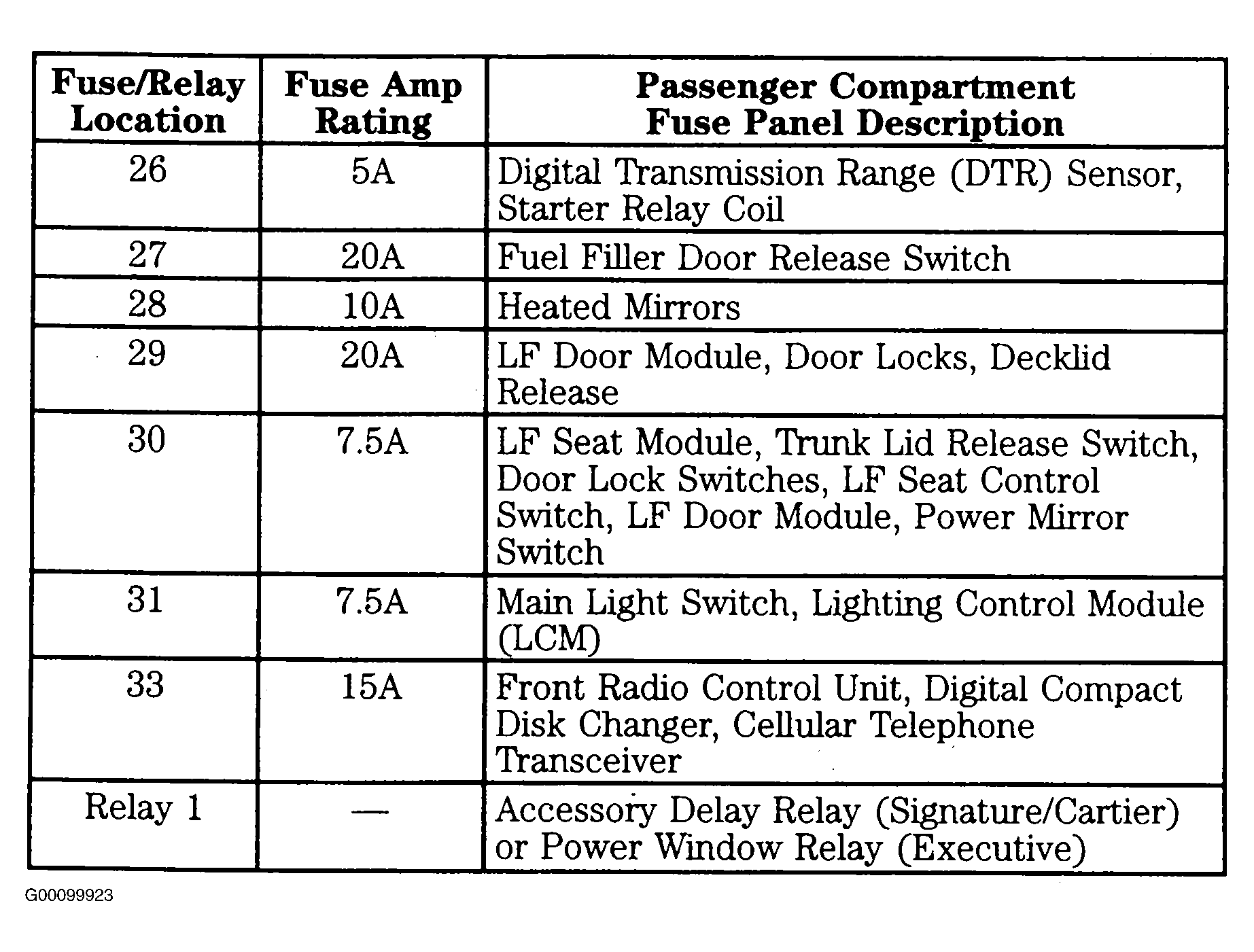

Fig 5: Central Junction Box Legend (3 Of 3)

Courtesy of FORD MOTOR CO.
