Battery Junction Box

NOTE: Battery junction box may also be referred to as power distribution box.

NOTE: Battery junction box is located on driver's side rear corner of engine compartment. See Fig 1.

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of FORD MOTOR CO.

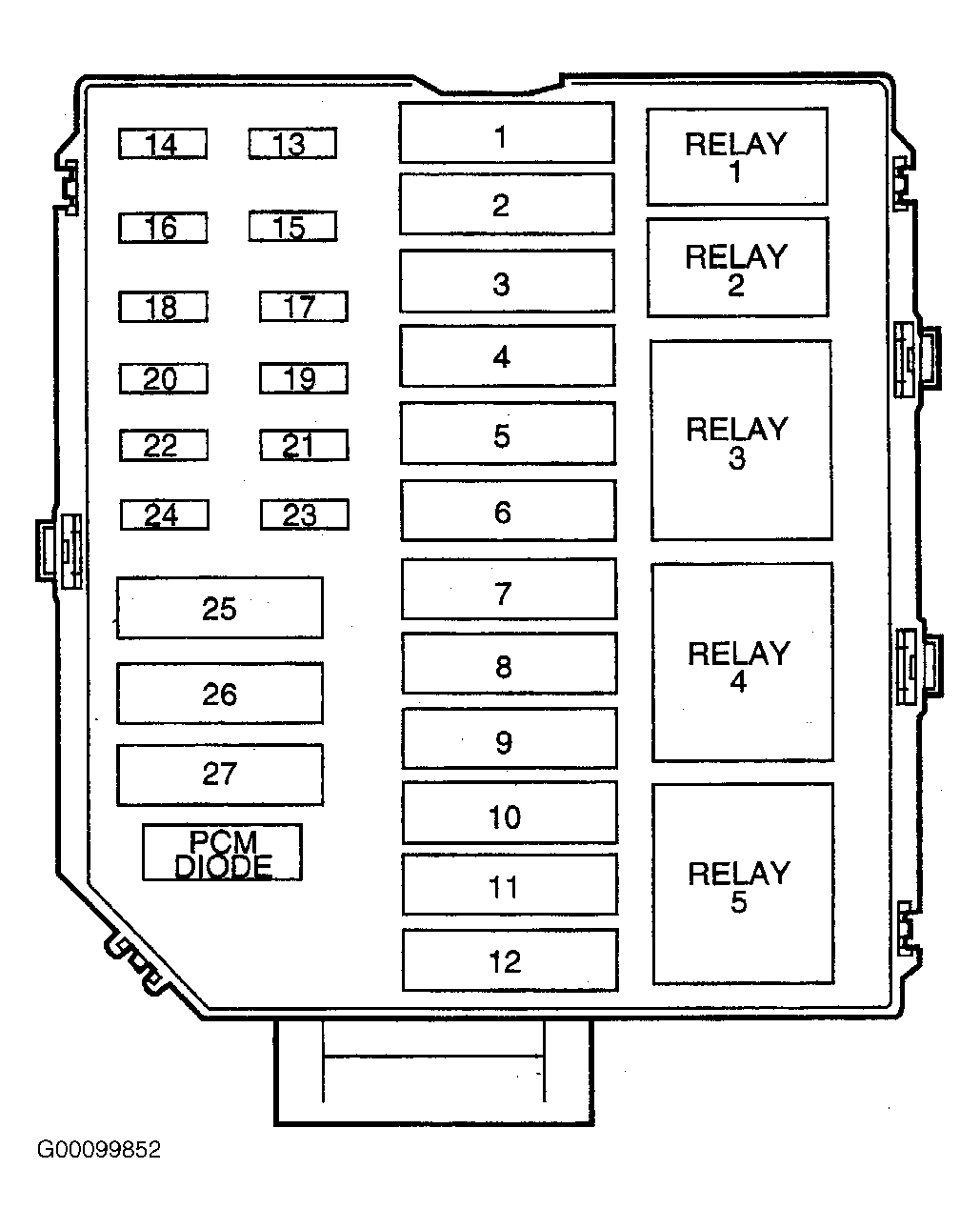

Fig 2: Identifying Battery Junction Box Components

Courtesy of FORD MOTOR CO.

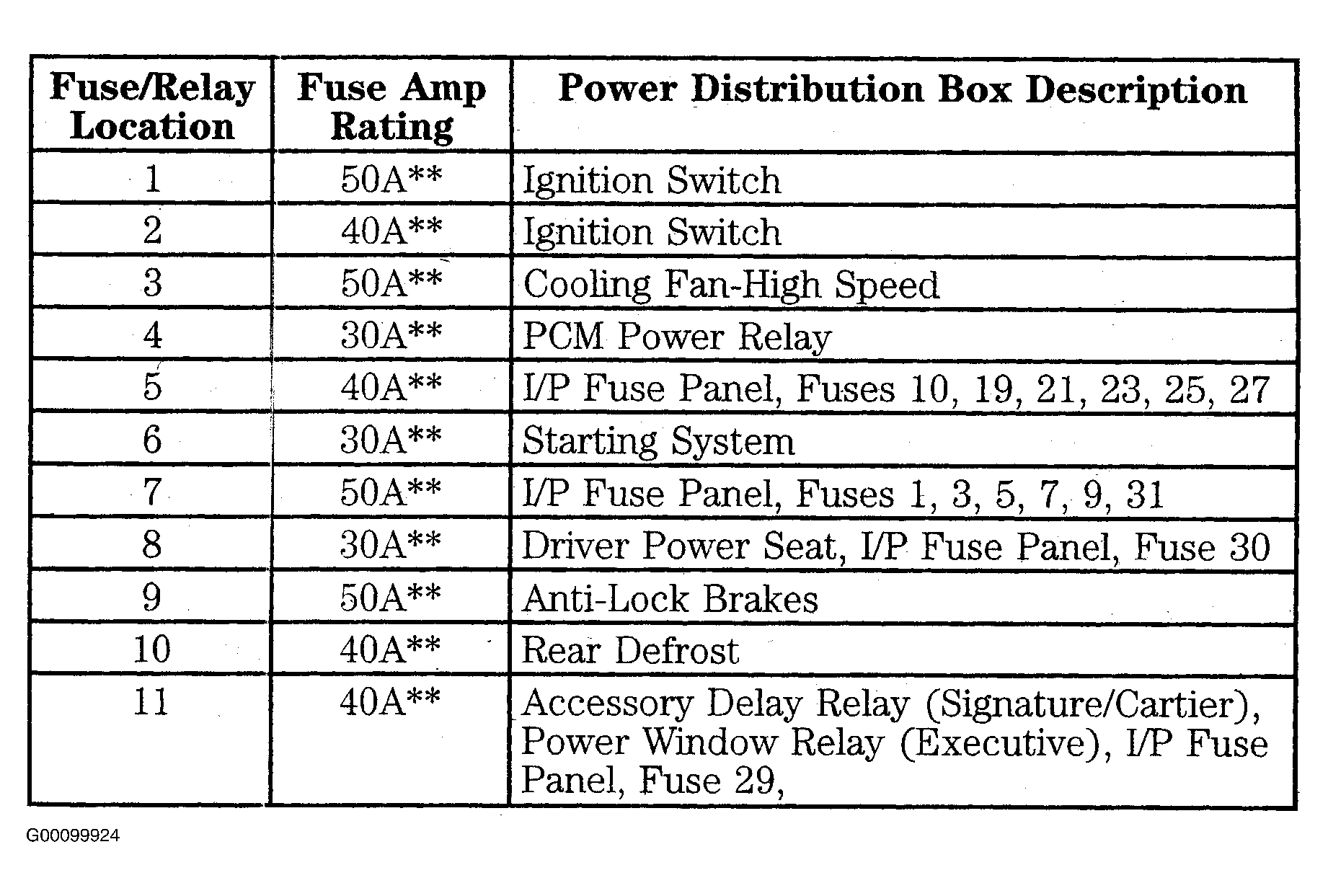

Fig 3: Battery Junction Box Legend (1 Of 2)

Courtesy of FORD MOTOR CO.

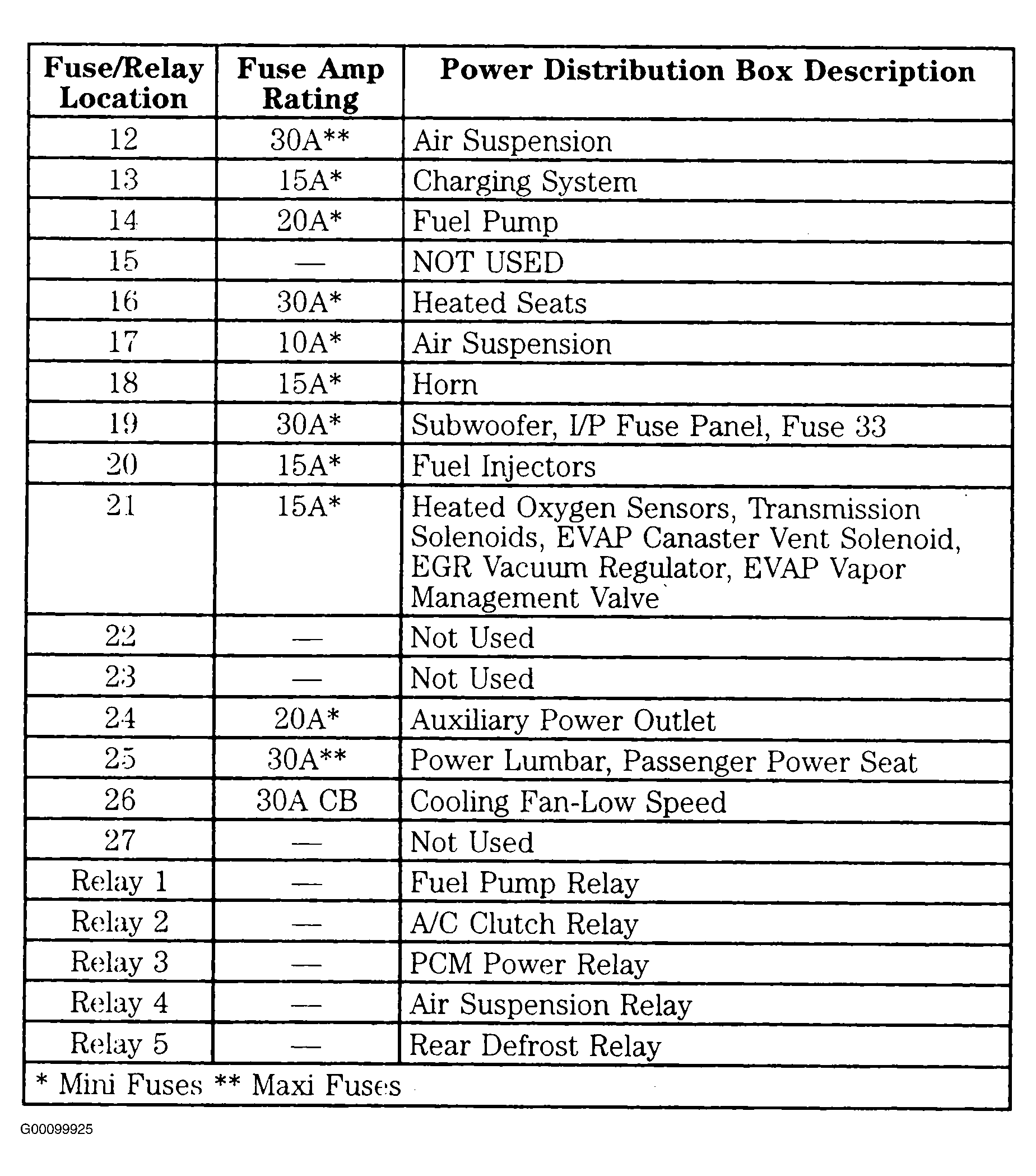

Fig 4: Battery Junction Box Legend (2 Of 2)

Courtesy of FORD MOTOR CO.
