Window Regulator Power Front Door

Removal & Installation

1. Remove the front door window glass, if necessary. See FRONT DOOR WINDOW GLASS  .
2. Remove the nuts. See Fig 1 .
3. Disconnect the connector. See Fig 2 .
4. Remove the rivets and the regulator. See Fig 3 .
5. Transfer the motor to the new regulator assembly.
6. To install reverse the removal procedure. See Fig 1 .

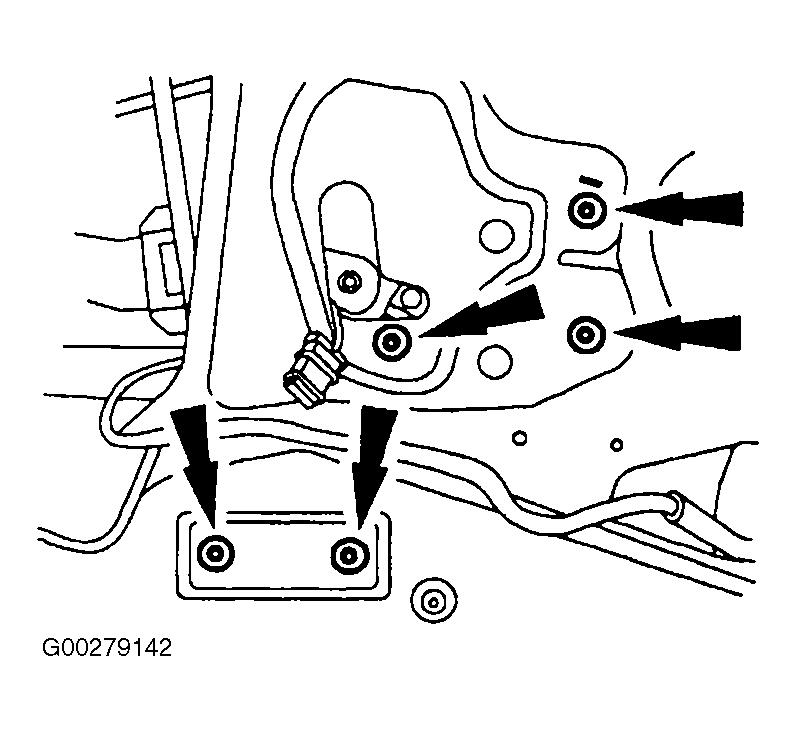

Fig 1: Removing Front Door Power Regulator

Courtesy of FORD MOTOR CO.

Fig 2: Disconnecting Front Door Regulator Power Connector

Courtesy of FORD MOTOR CO.

Fig 3: Removing Rivets From Regulator

Courtesy of FORD MOTOR CO.
