Window Regulator Electric Drive Front Door Window

Removal & Installation

1. Remove the front door trim panel, if necessary. See TRIM PANEL FRONT DOOR  .
2. Disconnect the connector. See Fig 1 .
3. Remove the Torx screws. See Fig 2 .
4. Remove the window regulator motor.
5. To install reverse the removal procedure. See Fig 2 .

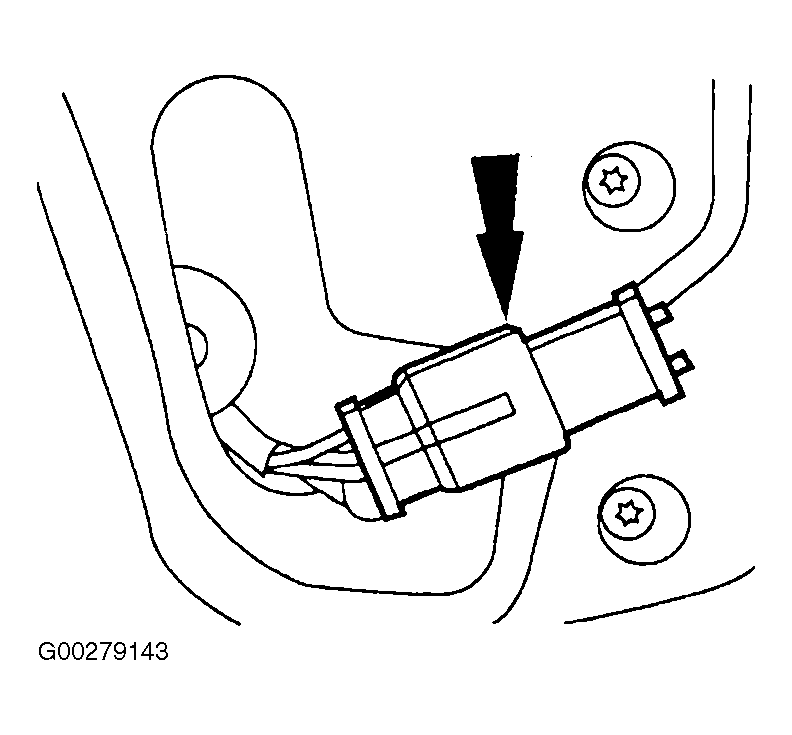

Fig 1: Disconnecting Front Door Electric Drive Window Regulator Connector

Courtesy of FORD MOTOR CO.

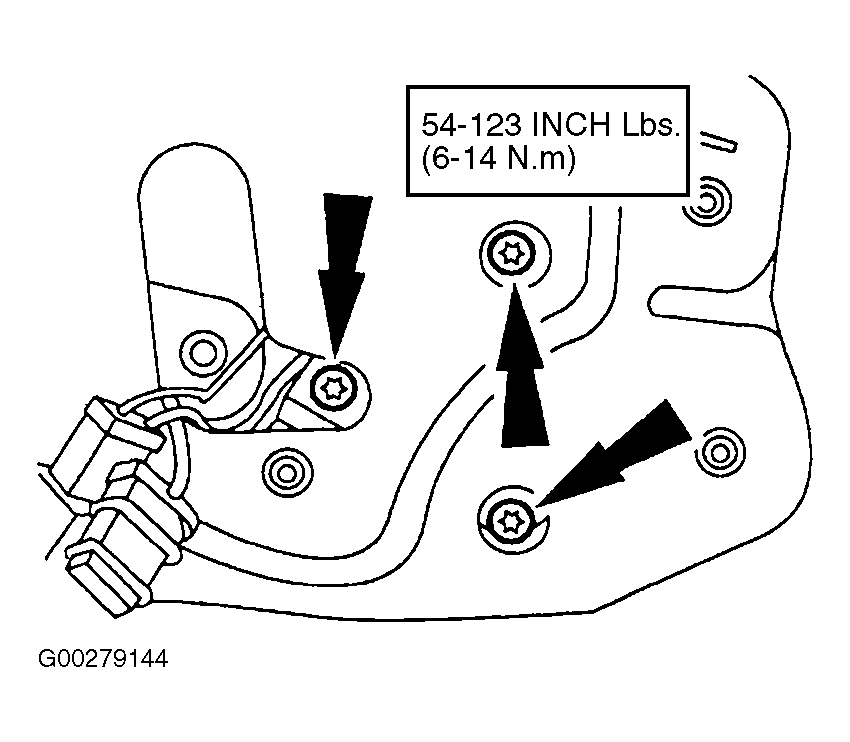

Fig 2: Removing Front Door Electric Drive Window Torx Screws

Courtesy of FORD MOTOR CO.
