Rear Door Window Glass

Removal & Installation

1. Remove the door trim panel. See TRIM PANEL REAR DOOR  .
2. Remove the inside weatherstrip. See Fig 1 .
3. Remove the outside weatherstrip.
   • Remove the nut. See Fig 2 .
   • Remove the outside weatherstrip. See Fig 2 .
4. Position the water shield aside.
5. Connect the door trim panel electrical connectors.
6. Connect the battery ground cable.
7. Position the rear door window glass to access the rivets. See Fig 3 .
   CAUTION: Do not attempt to pry out the rivets as damage to the rear door window glass could result. Prior to removing rivet center pins, it is necessary to place a suitable block support between the door outlet panel and the rear door window channel bracket to stabilize the rear door window glass during rivet removal.
8. Remove the glass mounting rivets.
9. Remove the rear door window glass.
   • Lower the glass fully. See Fig 4 .
   • Remove the glass from the division bar. See Fig 4 .
   • Move the glass between the division bar and the door outer panel. See Fig 4 .
   • Remove the rear door window glass. See Fig 4 .
10. To install reverse the removal procedure.

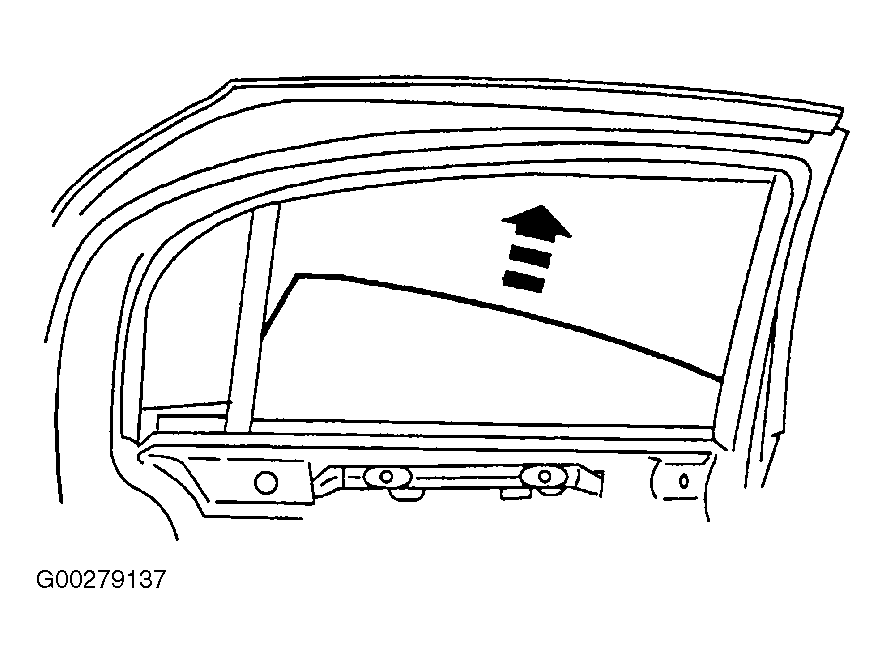

Fig 1: Removing Rear Door Window Glass

Courtesy of FORD MOTOR CO.

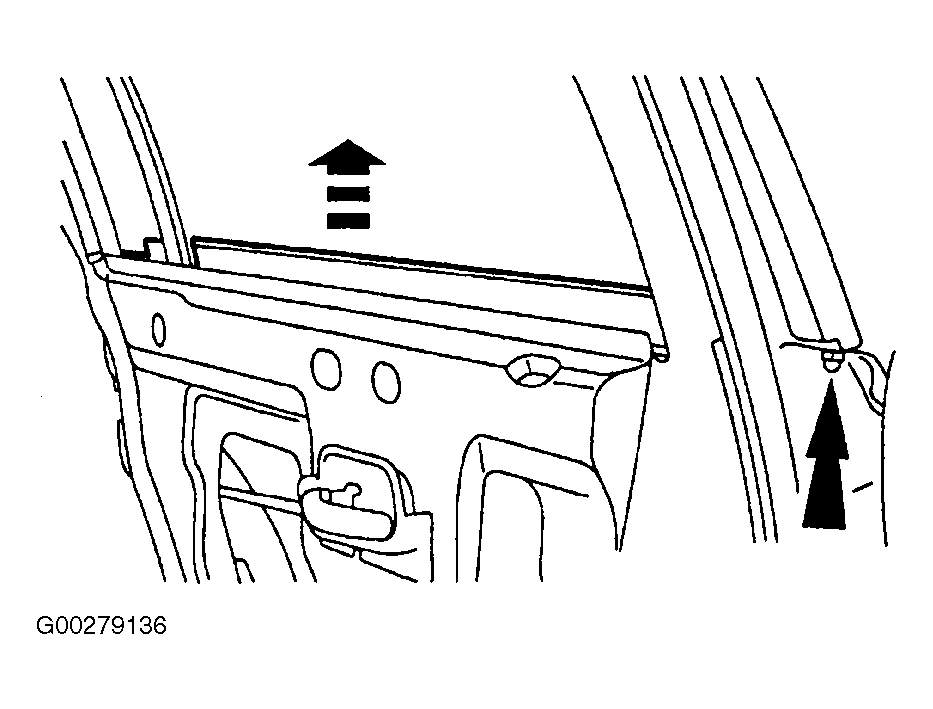

Fig 2: Removing Rear Window Weatherstrip

Courtesy of FORD MOTOR CO.

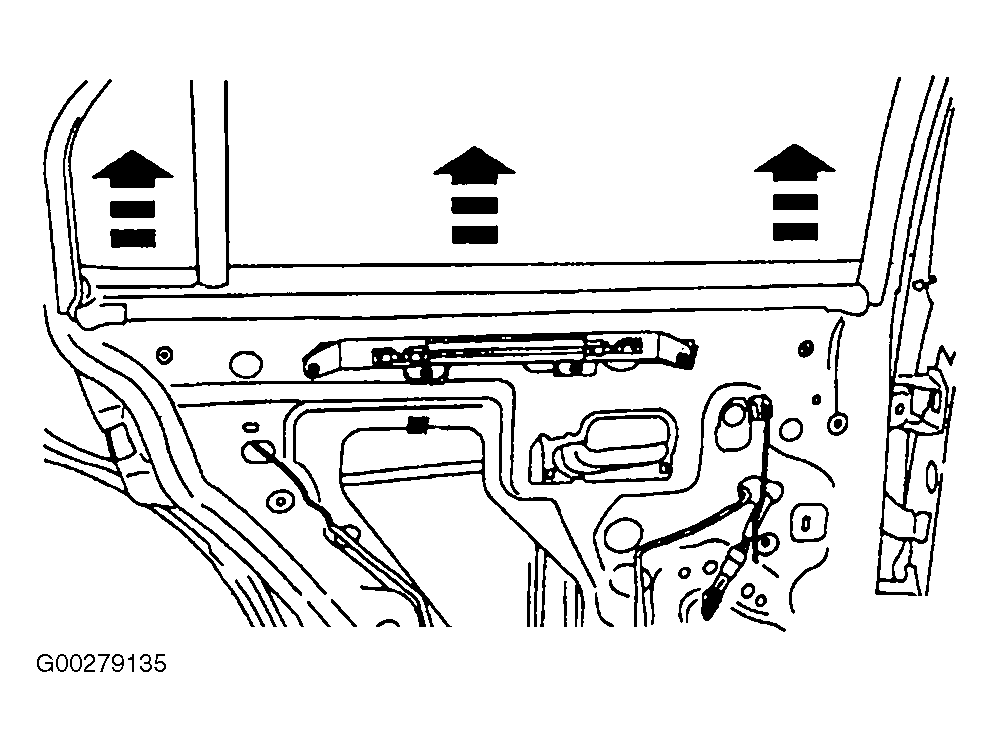

Fig 3: Removing Rivets In Rear Window

Courtesy of FORD MOTOR CO.

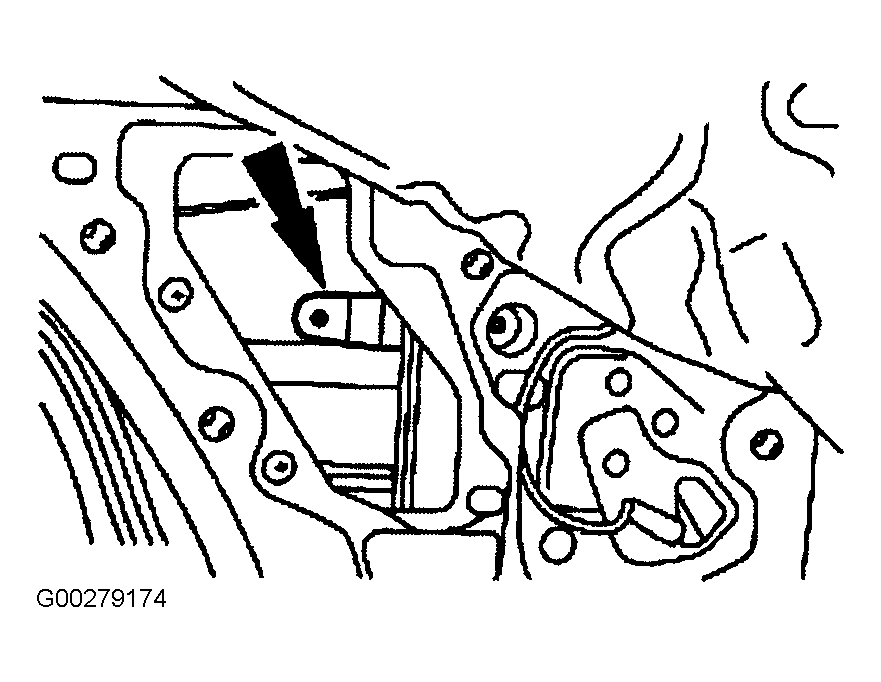

Fig 4: Removing Glass From Division Bar

Courtesy of FORD MOTOR CO.
