Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

    NOTE: Vehicle with moonroof shown, vehicle without moonroof similar.

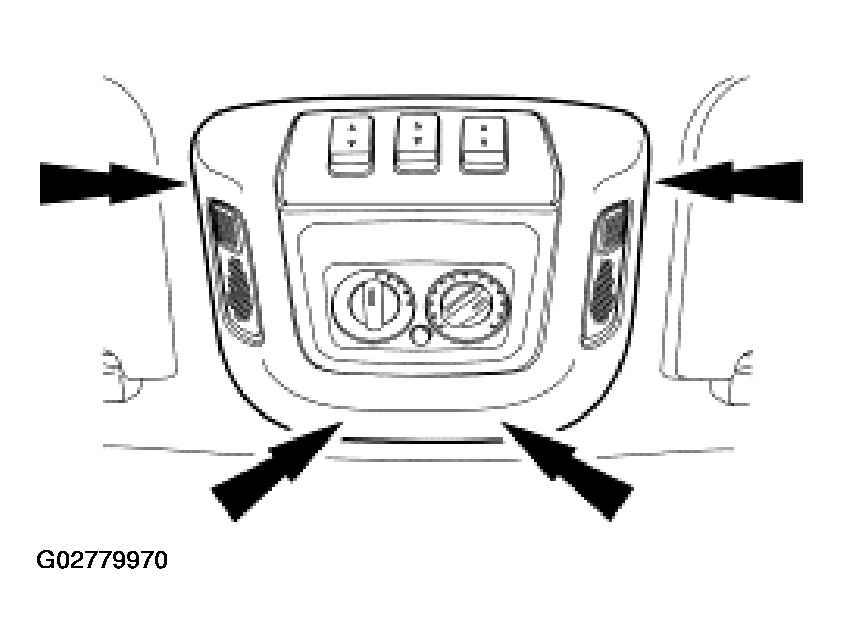

    Fig 1: Disengaging Clips And Removing Overhead Console
    G02779970Courtesy of FORD MOTOR CO.
  1. Disengage the clips and remove the overhead console.
    • Disconnect the electrical connectors.

    2. VEHICLES WITH MOONROOF

  2. Remove the screws and the map lights.

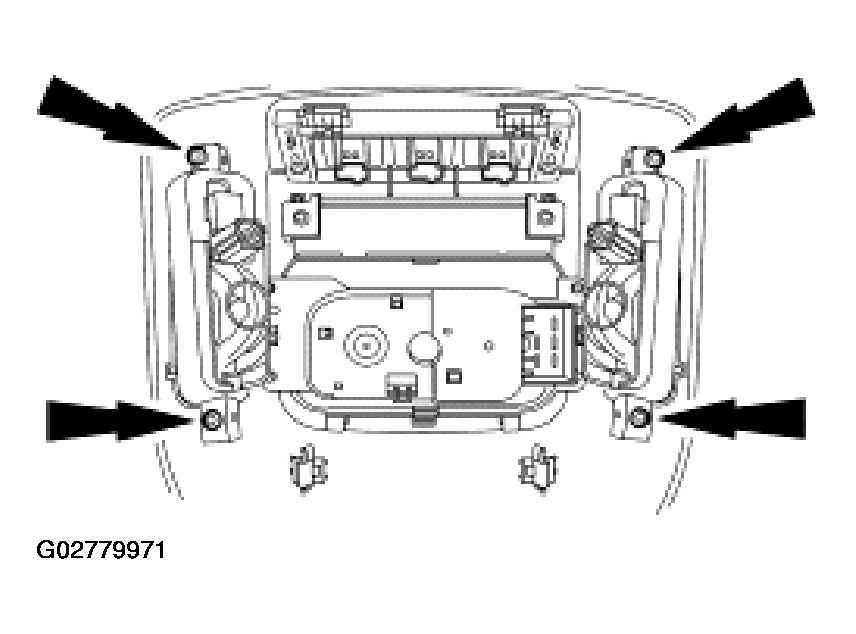

    Fig 2: Removing Screws And Map Lights
    G02779971Courtesy of FORD MOTOR CO.

    3. ALL VEHICLES

    NOTE: Vehicle with moonroof shown, vehicle without moonroof similar.
    Fig 3: Removing Screws And Front Auxiliary Climate Control Assembly
    G02779972Courtesy of FORD MOTOR CO.
  3. Remove the screws and the front auxiliary climate control assembly.
  4. To install, reverse the removal procedure.
