Pinpoint Test P: The Yellow Abs Warning Indicator Does Not Self Check

WARNING: This page is about a different car, the 2002 Lincoln Navigator and 2002 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

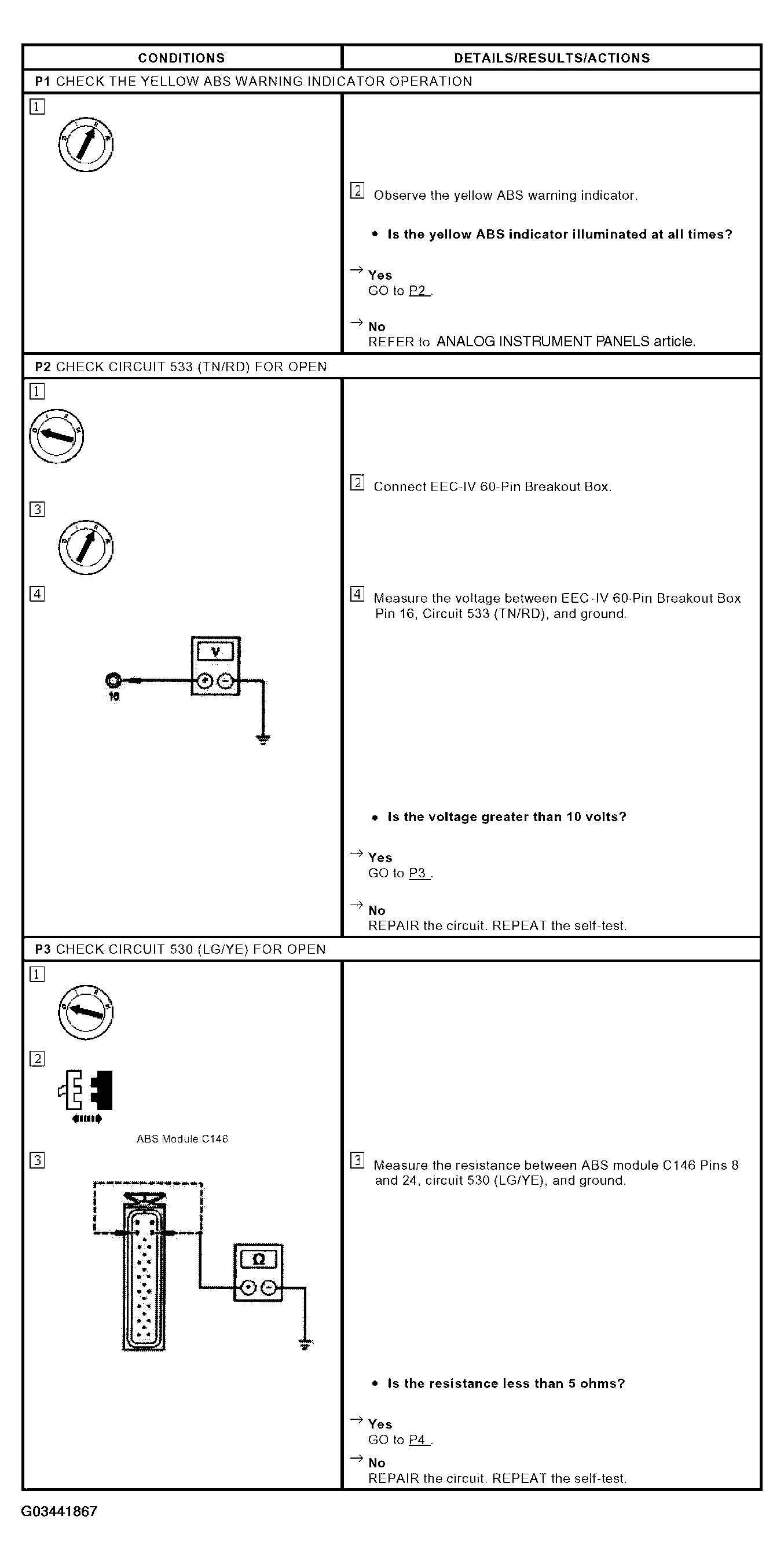

Fig 1: Pinpoint Test P: Yellow ABS Warning Indicator Does Not Self Check (Steps P1 - P3)

Courtesy of FORD MOTOR CO.

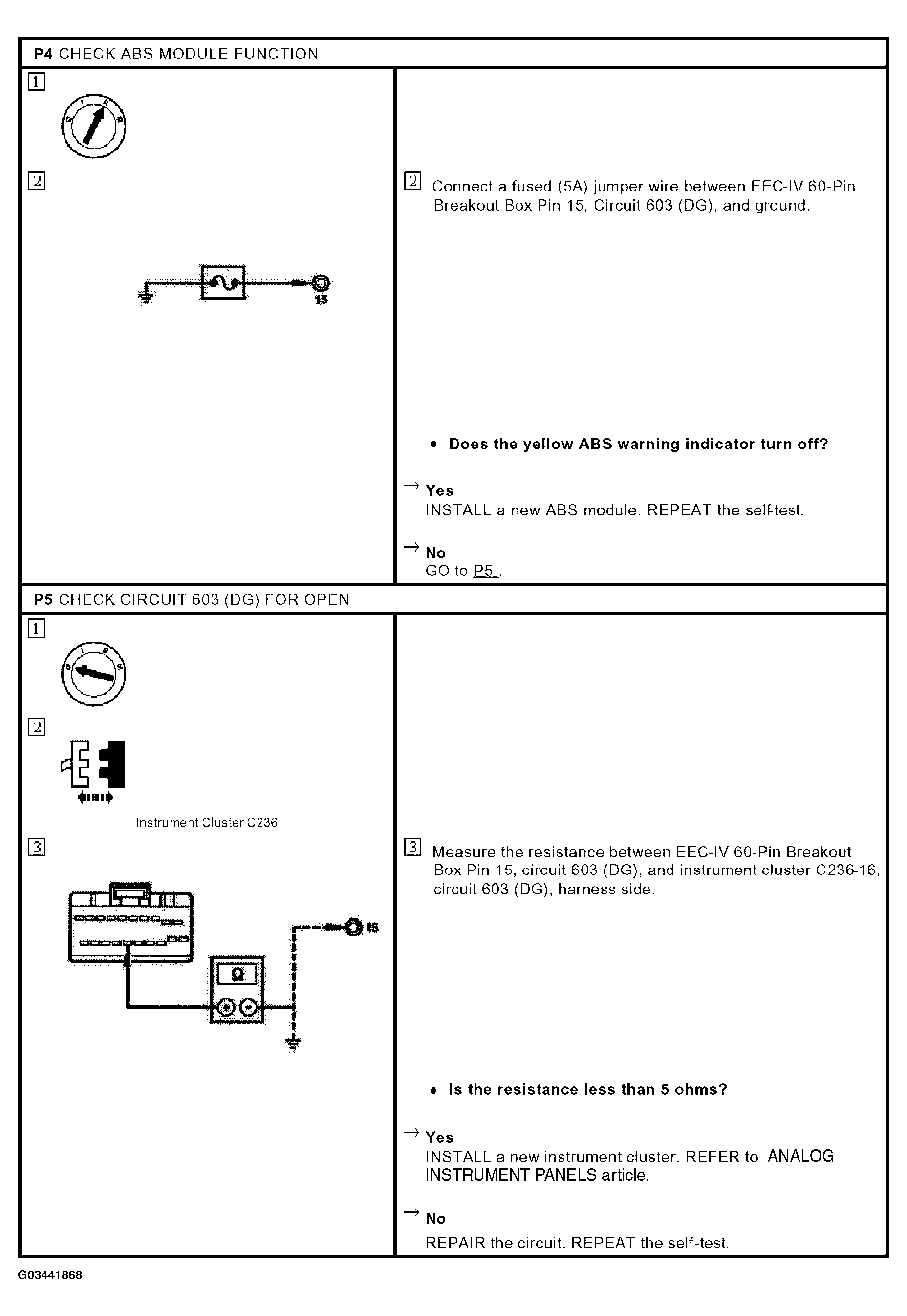

Fig 2: Pinpoint Test P: Yellow ABS Warning Indicator Does Not Self Check (Steps P4 - P5)

Courtesy of FORD MOTOR CO.
