Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Turn the locking cap 90 degrees in either direction and remove the drive cable from the brake pedal assembly.

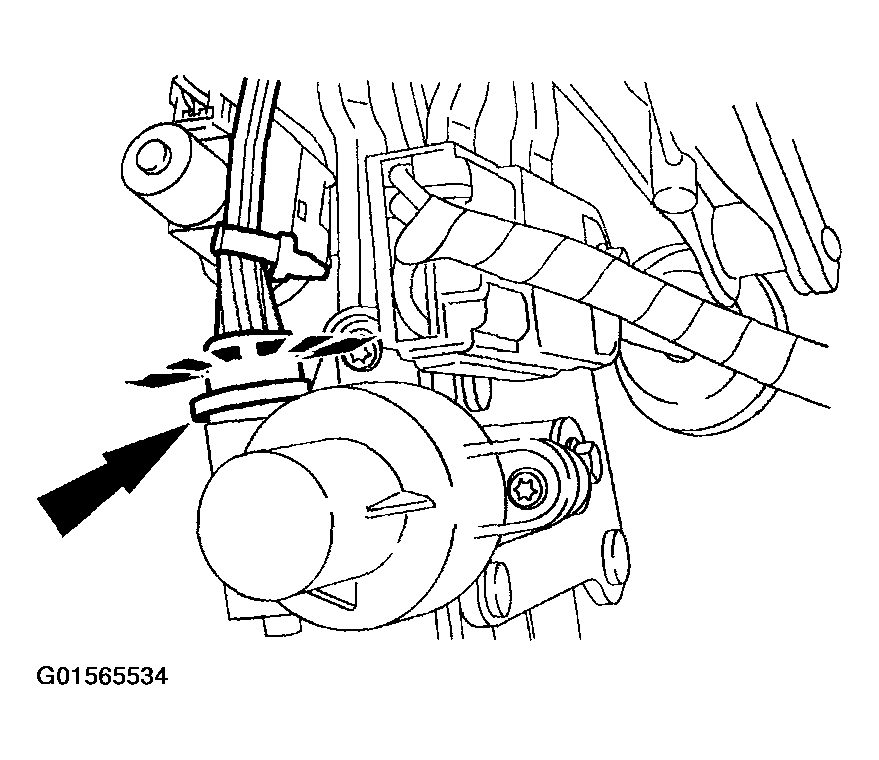

Fig 1: Turning Locking Cap
Courtesy of FORD MOTOR CO.
Disconnect the drive motor electrical connectors.

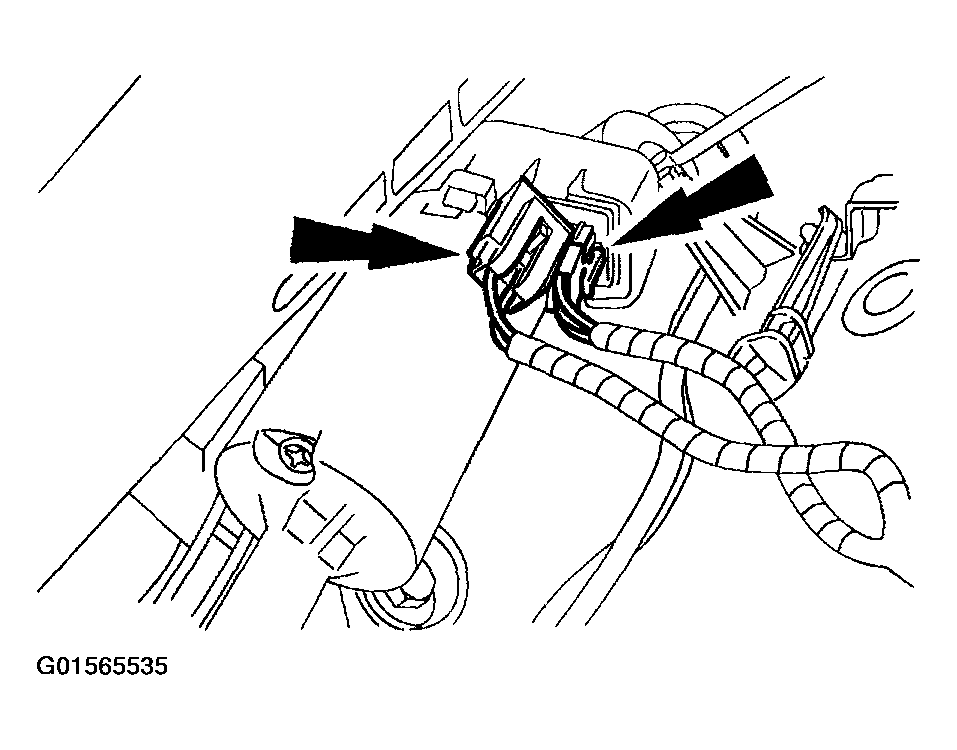

Fig 2: Disconnecting Drive Motor Electrical Connectors
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable from the accelerator pedal.

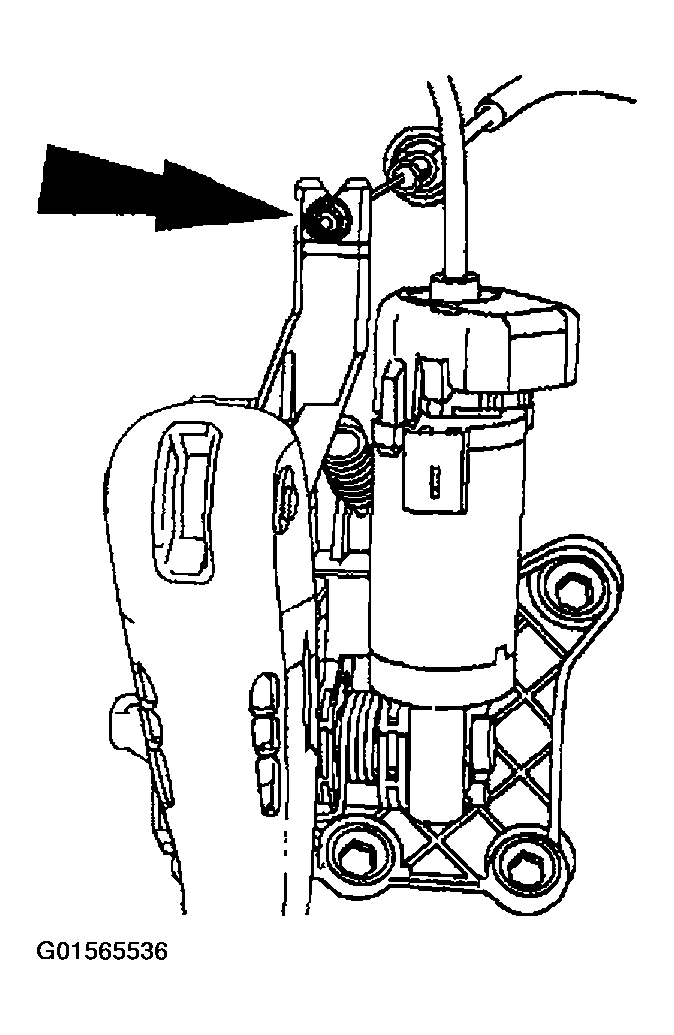

Fig 3: Disconnecting Accelerator Cable From Accelerator Pedal
Courtesy of FORD MOTOR CO.
Remove the bolts and the accelerator pedal.

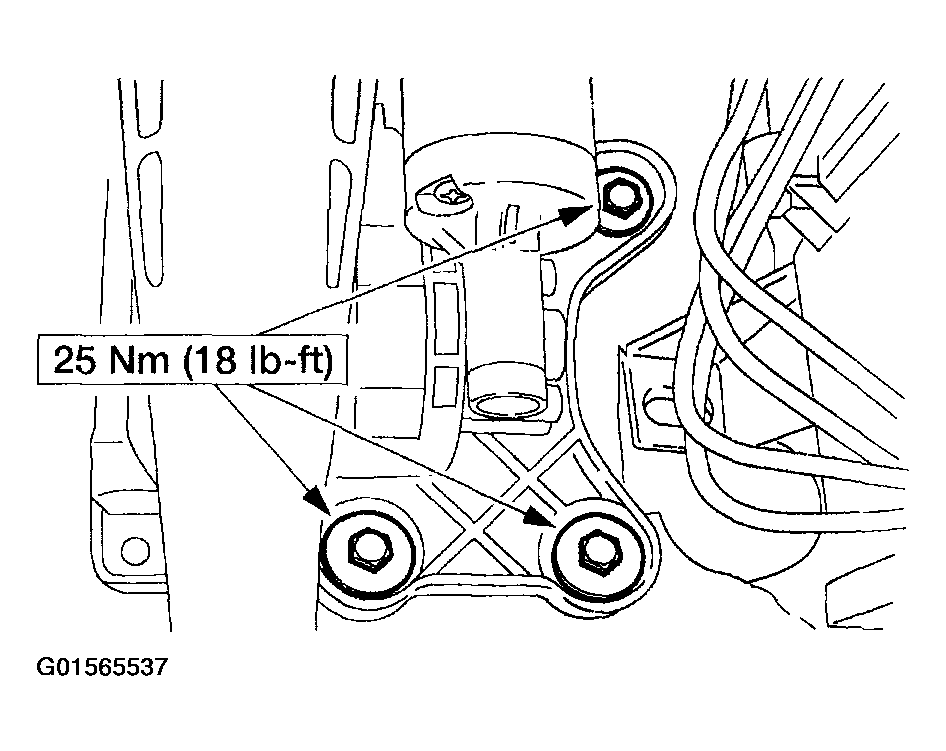

Fig 4: Removing Bolts And Accelerator Pedal
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
