Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner outlet pipe. For additional information, refer to REMOVAL & INSTALLATION - BLACKWOOD, EXPEDITION, F150 PICKUP & NAVIGATOR - GASOLINE .
Disconnect the accelerator cable and the speed control cable from the throttle body cam.

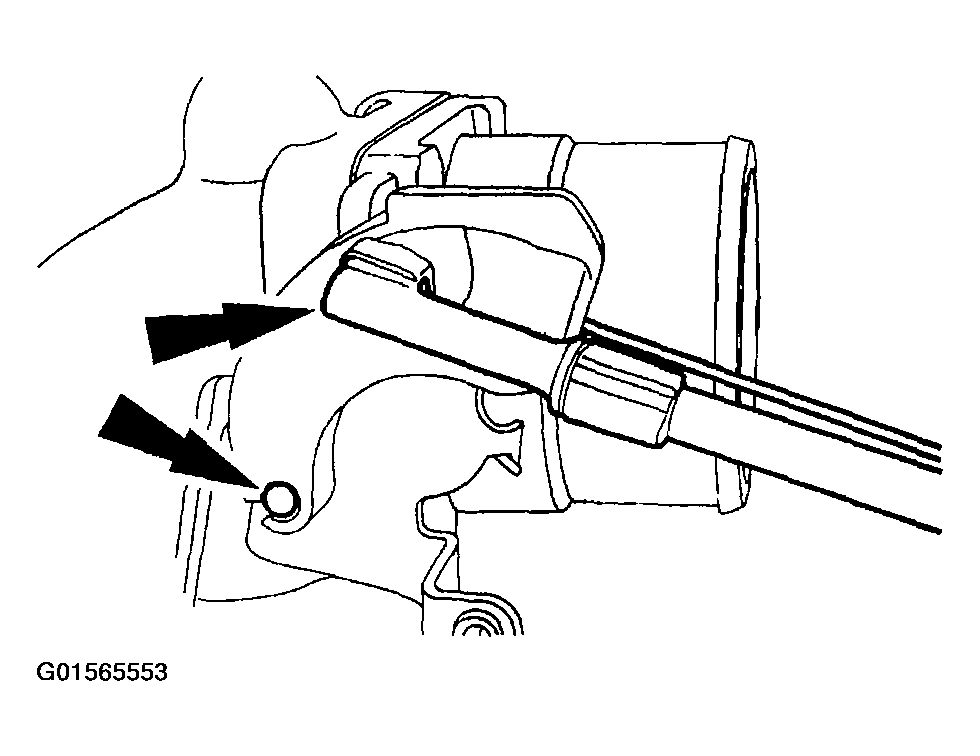

Fig 1: Disconnecting Accelerator Cable And Speed Control Cable From Throttle Body Cam
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable and the speed control cable from the accelerator cable bracket.

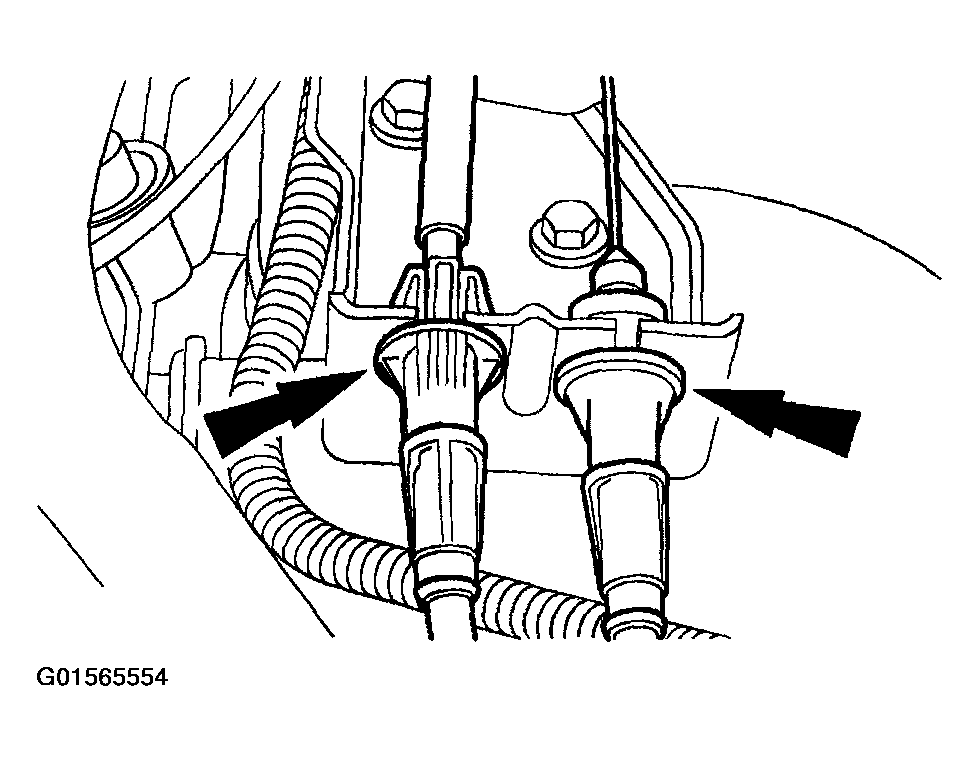

Fig 2: Disconnecting Accelerator Cable And Speed Control Cable From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
Remove the throttle return spring from the accelerator cable bracket.
Remove the accelerator cable bracket.

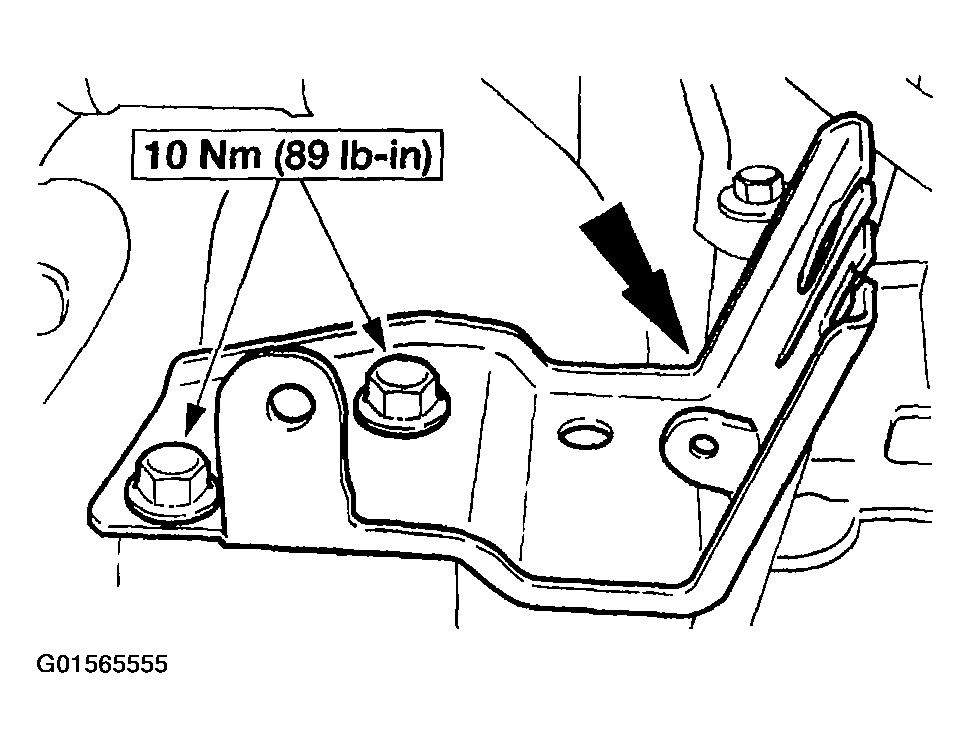

Fig 3: Removing Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
