Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the accelerator cable from the accelerator pedal.

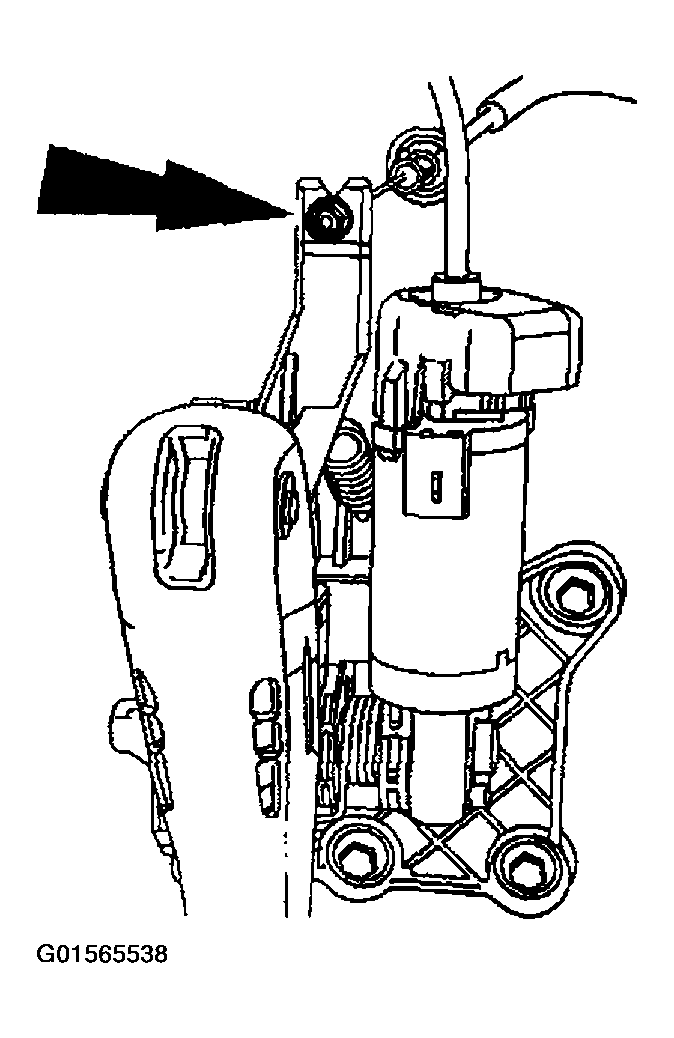

Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal
Courtesy of FORD MOTOR CO.
Remove the air cleaner outlet pipe. For additional information, refer to REMOVAL & INSTALLATION - BLACKWOOD, EXPEDITION, F150 PICKUP & NAVIGATOR - GASOLINE .
Detach the accelerator cable from the routing clip.

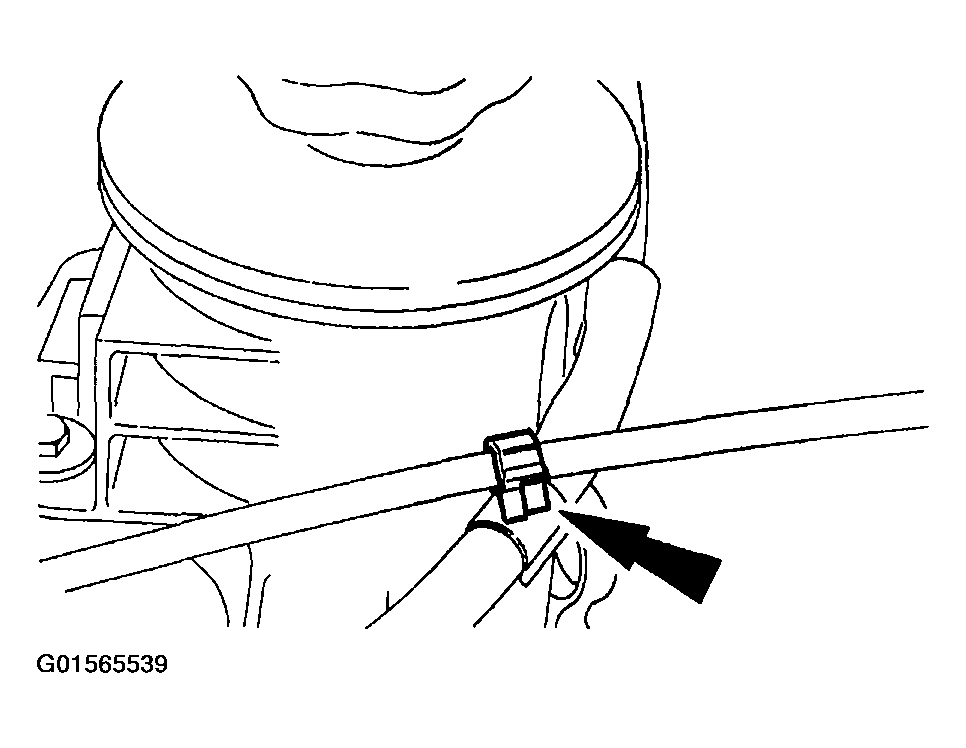

Fig 2: Detaching Accelerator Cable From Routing Clip
Courtesy of FORD MOTOR CO.
Squeeze the accelerator cable lock tabs on the inside of the passenger compartment and push the accelerator cable into the engine compartment.

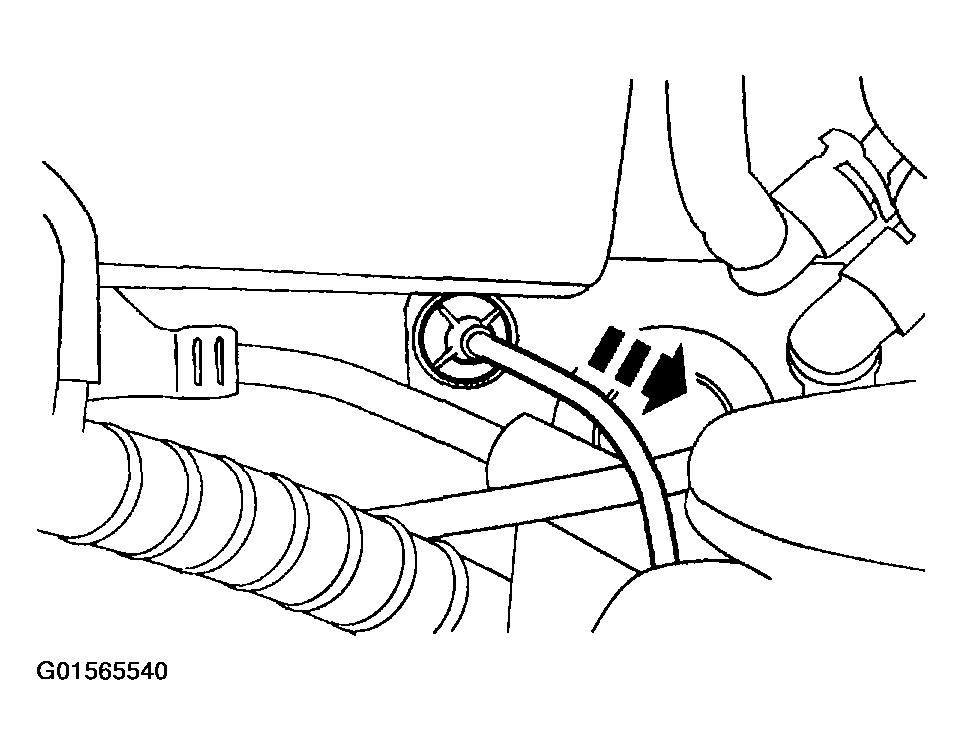

Fig 3: Pushing Accelerator Cable Into Engine Compartment
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable from the throttle lever to remove the accelerator cable.
1. Rotate the throttle body cam forward.
2. Slide the accelerator cable end from the throttle body cam.

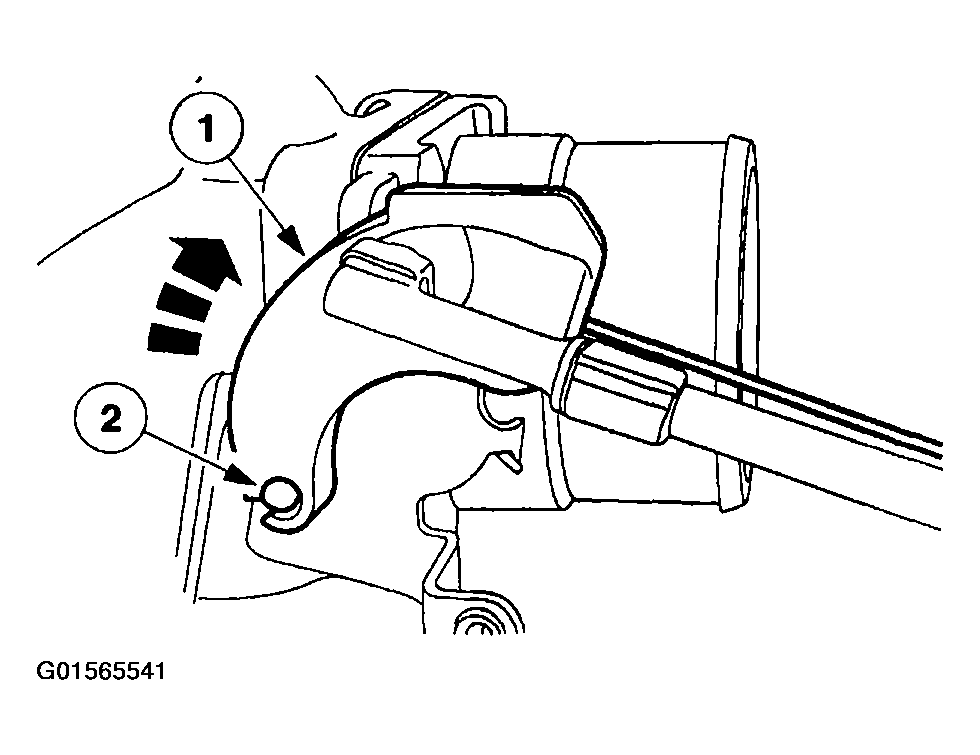

  Fig 4: Rotating Throttle Body Cam Forward
  Courtesy of FORD MOTOR CO.
Depress the locking tabs and remove the accelerator cable from the accelerator cable bracket.

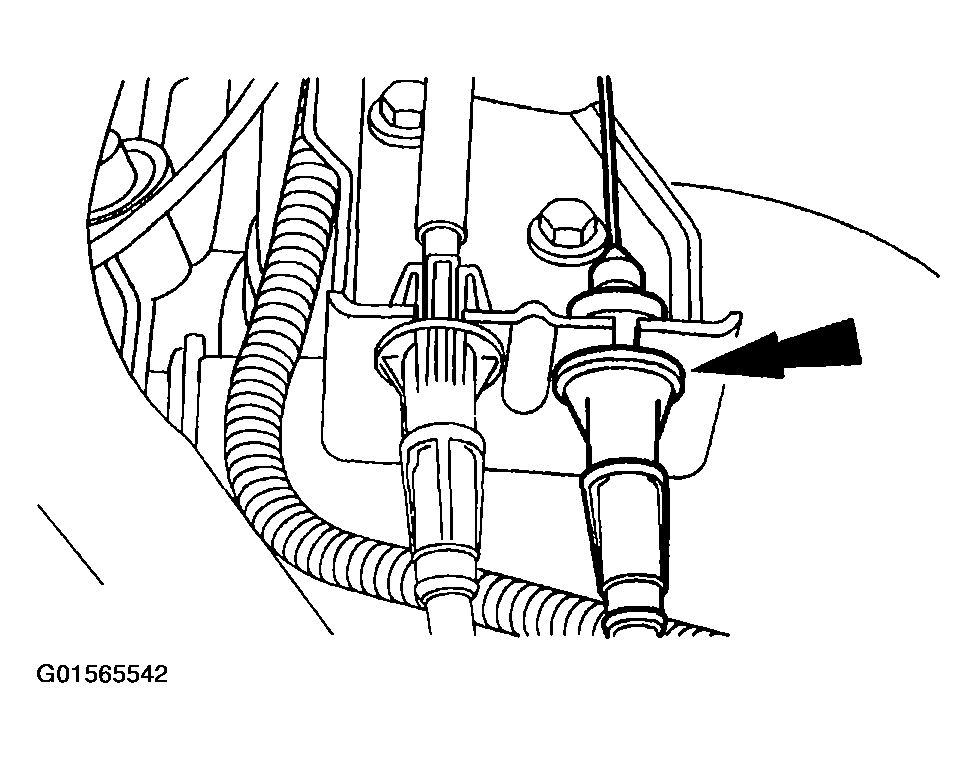

Fig 5: Removing Accelerator Cable From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
To install, reverse removal procedure.
