Pinpoint Test K: DTC U1016 - SCP Invalid Data

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

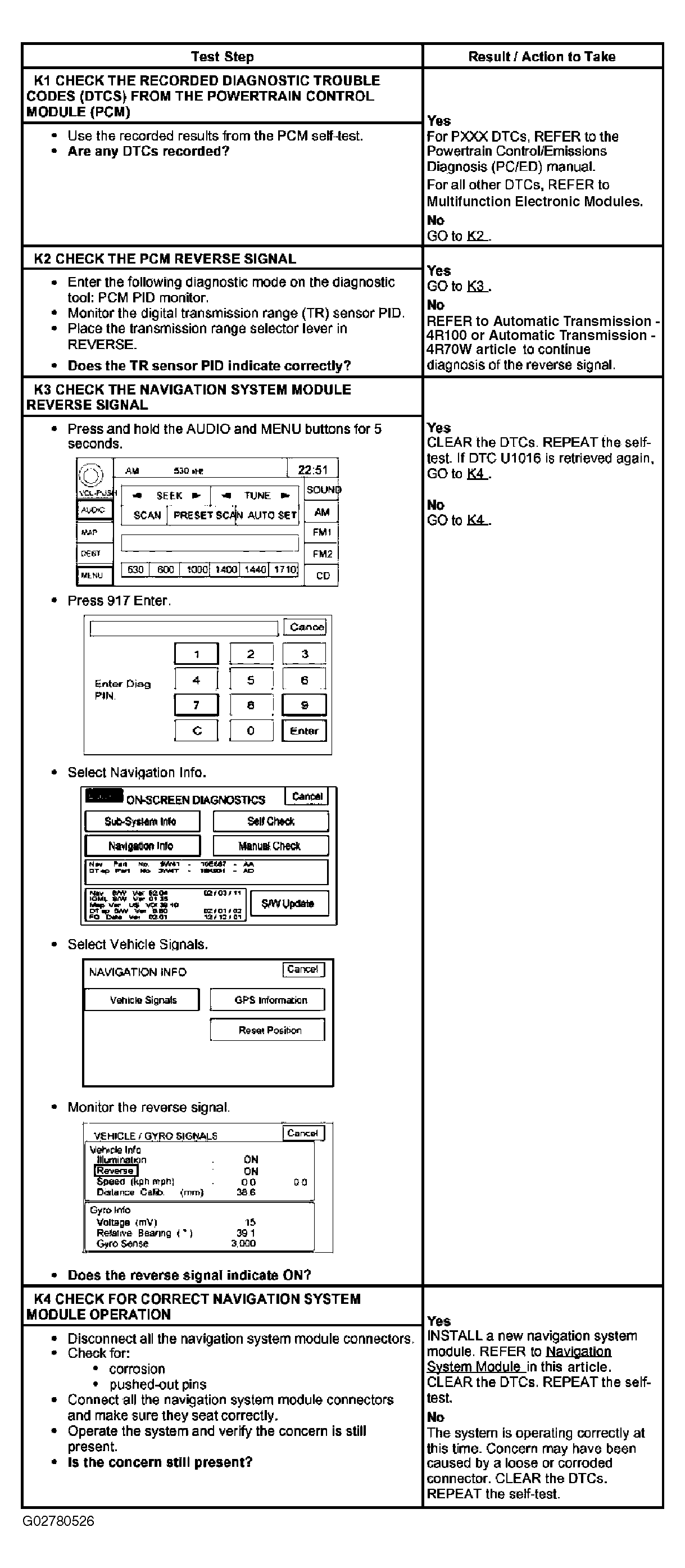

Fig 1: Pinpoint Test K: DTC U1016 - SCP Invalid Data (Steps K1-K4)
G02780526Courtesy of FORD MOTOR CO.
