Pinpoint Test L: Navigation System Will Not Switch On

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

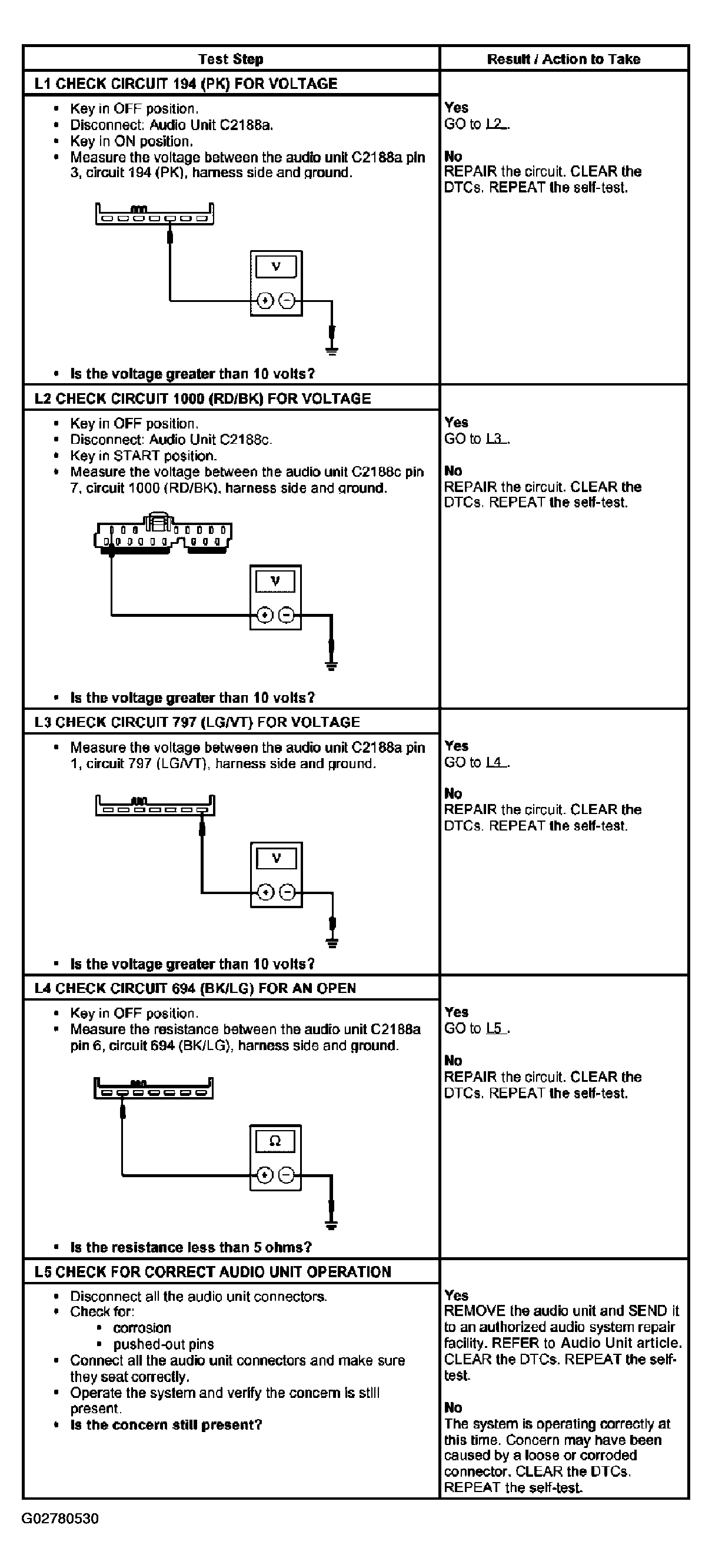

Fig 1: Pinpoint Test L: Navigation System Will Not Switch On (Steps L1-L5)
G02780530Courtesy of FORD MOTOR CO.
