Pinpoint Test N: Air Suspension Control Module Does Not Respond To Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

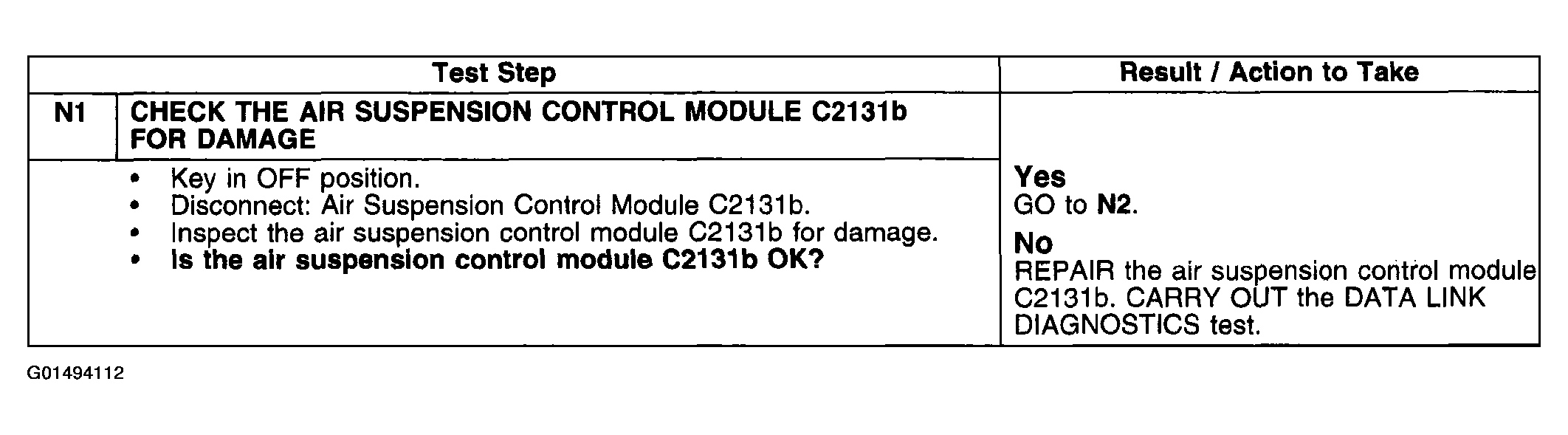

Fig 1: Pinpoint Test N: Air Suspension Control Module Does Not Respond To Diagnostic Tool (N1)
G01494112Courtesy of FORD MOTOR CO.

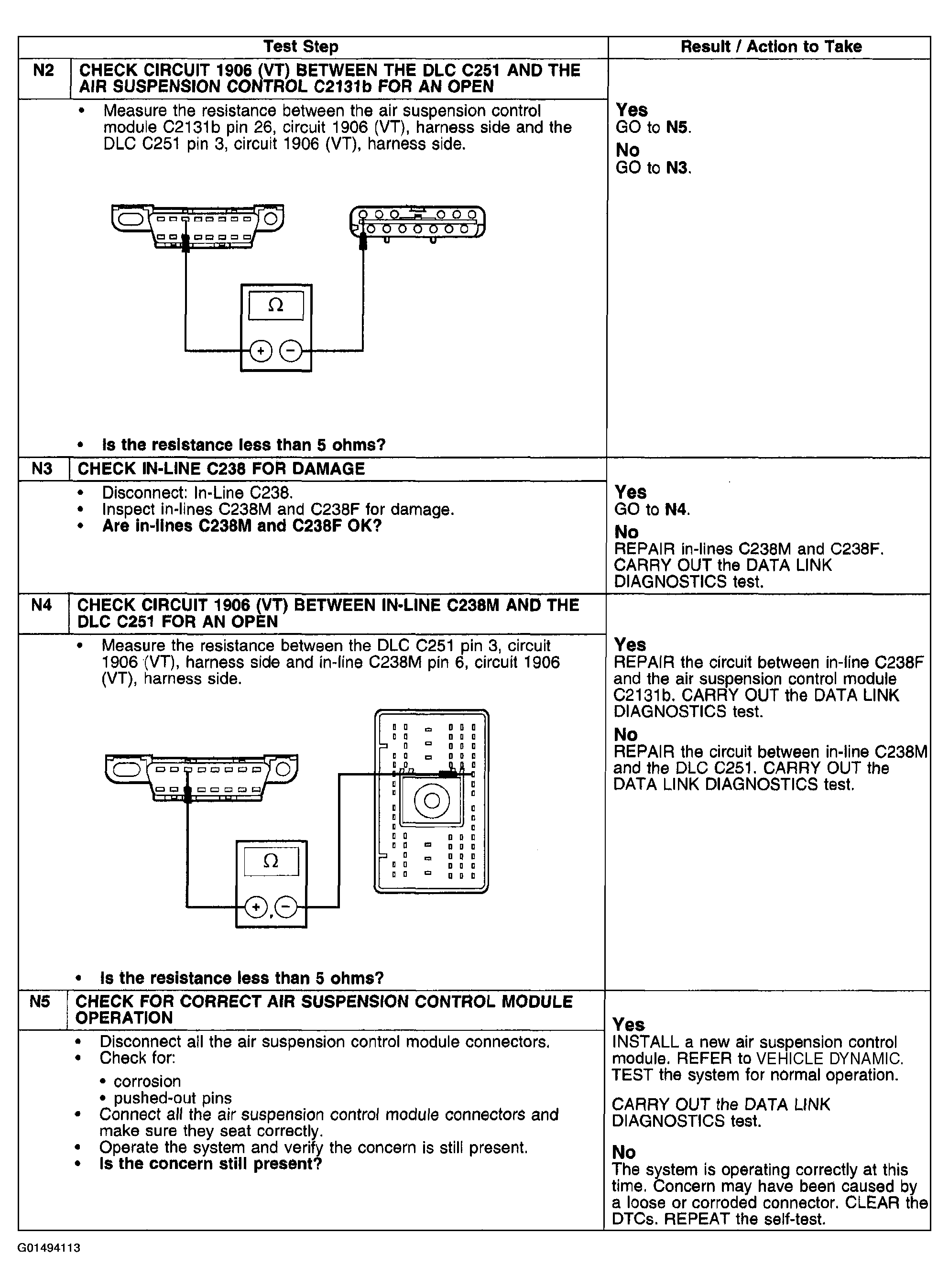

Fig 2: Pinpoint Test N: Air Suspension Control Module Does Not Respond To Diagnostic Tool (N2-N5)
G01494113Courtesy of FORD MOTOR CO.
