Pinpoint Test M: Power Liftgate Module Does Not Respond To Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

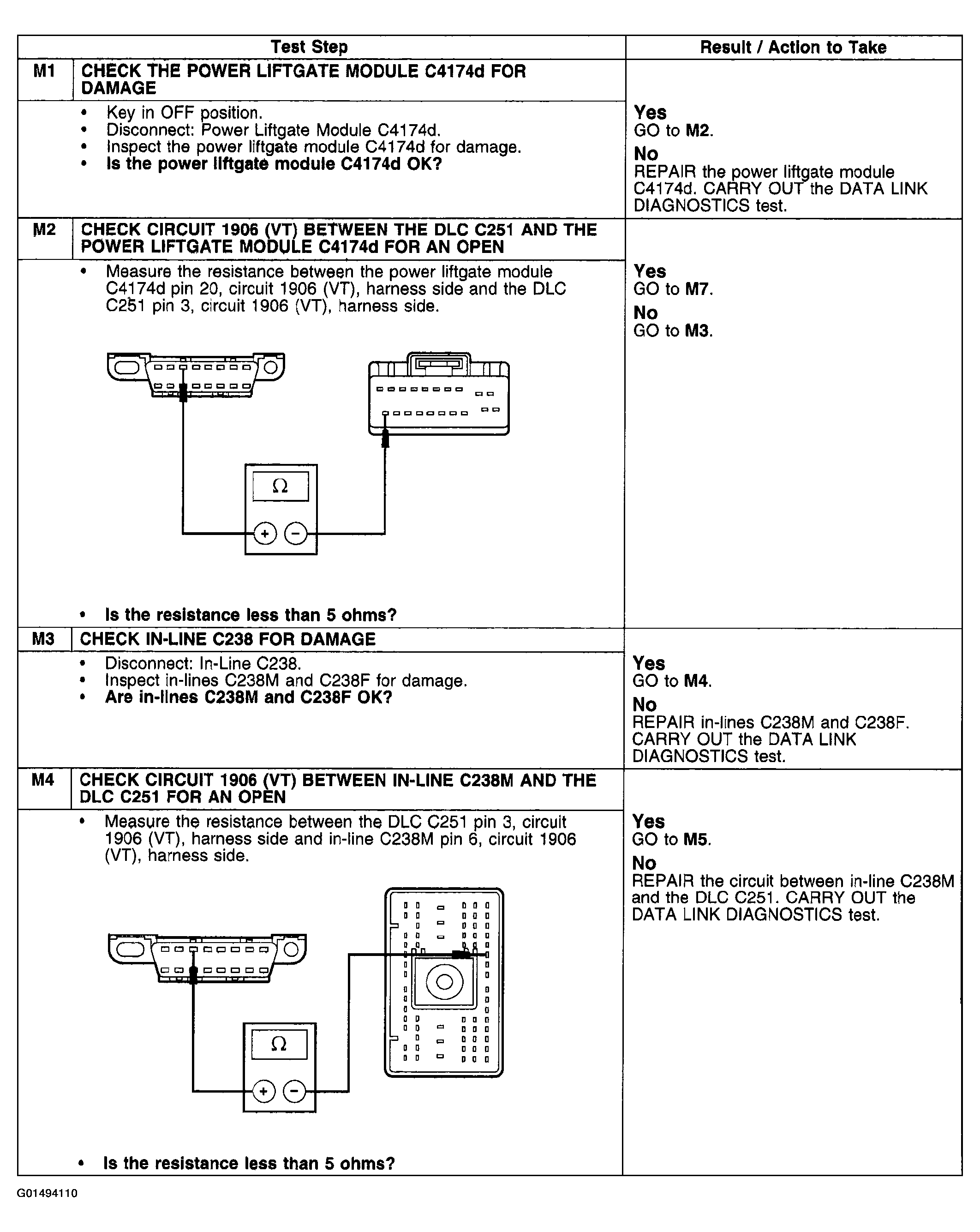

Fig 1: Pinpoint Test M: Power Liftgate Module Does Not Respond To Diagnostic Tool (M1-M4)
G01494110Courtesy of FORD MOTOR CO.
Fig 2: Pinpoint Test M: Power Liftgate Module Does Not Respond To Diagnostic Tool (M5-M7)
G01494111Courtesy of FORD MOTOR CO.
