Pinpoint Test H: Parking Aid Module Does Not Respond To Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

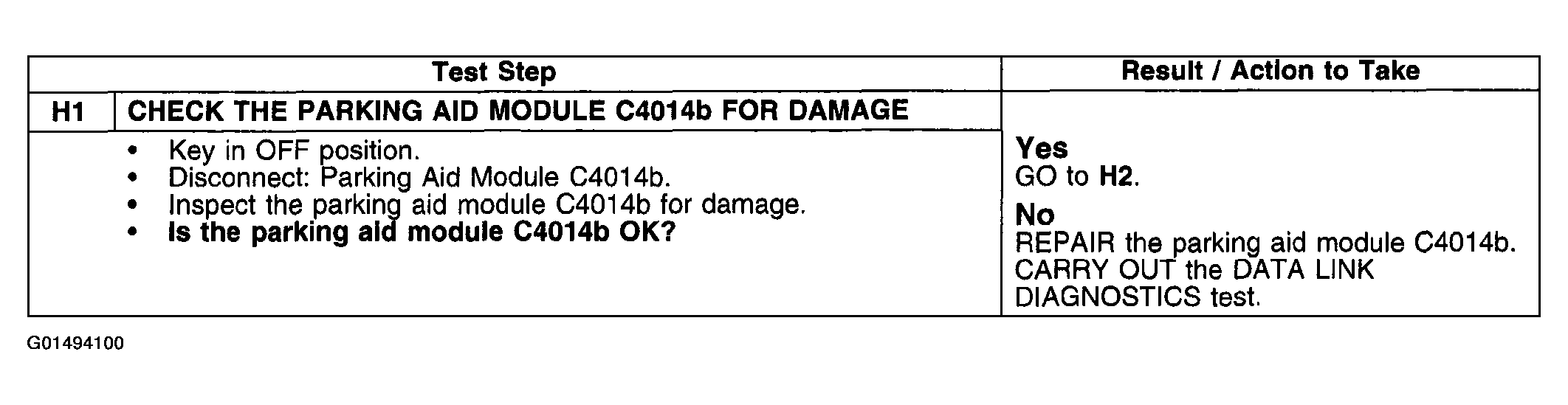

Fig 1: Pinpoint Test H: Parking Aid Module Does Not Respond To Diagnostic Tool (H1)
G01494100Courtesy of FORD MOTOR CO.

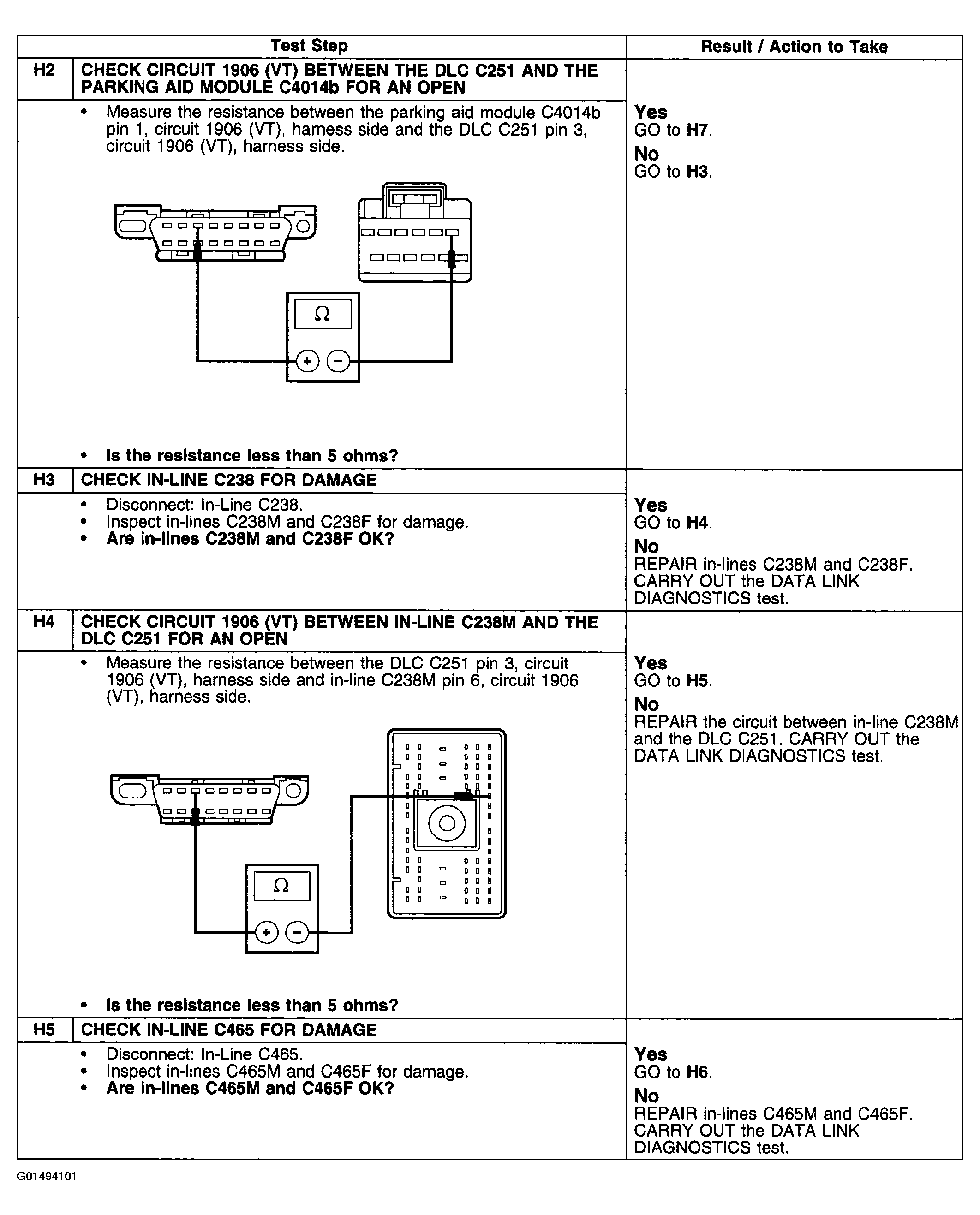

Fig 2: Pinpoint Test H: Parking Aid Module Does Not Respond To Diagnostic Tool (H2-H5)
G01494101Courtesy of FORD MOTOR CO.

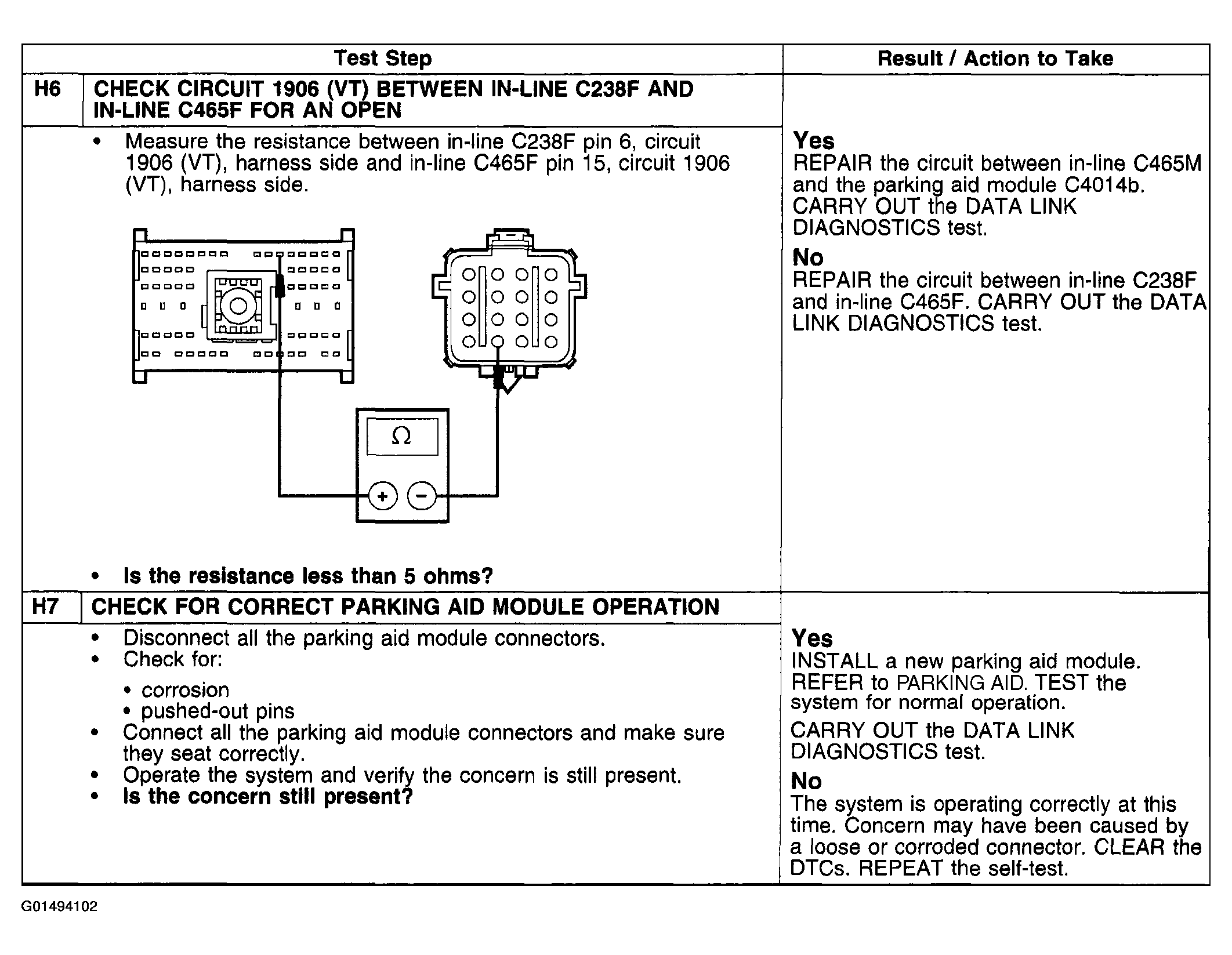

Fig 3: Pinpoint Test H: Parking Aid Module Does Not Respond To Diagnostic Tool (H6-H7)
G01494102Courtesy of FORD MOTOR CO.
