Pinpoint Test A: 4-Wheel Anti-Lock Brake/Traction Control (Abs/Tc) Module Or Stability Assist Module Does Not Respond To Diagnostic Tool (ISO)

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

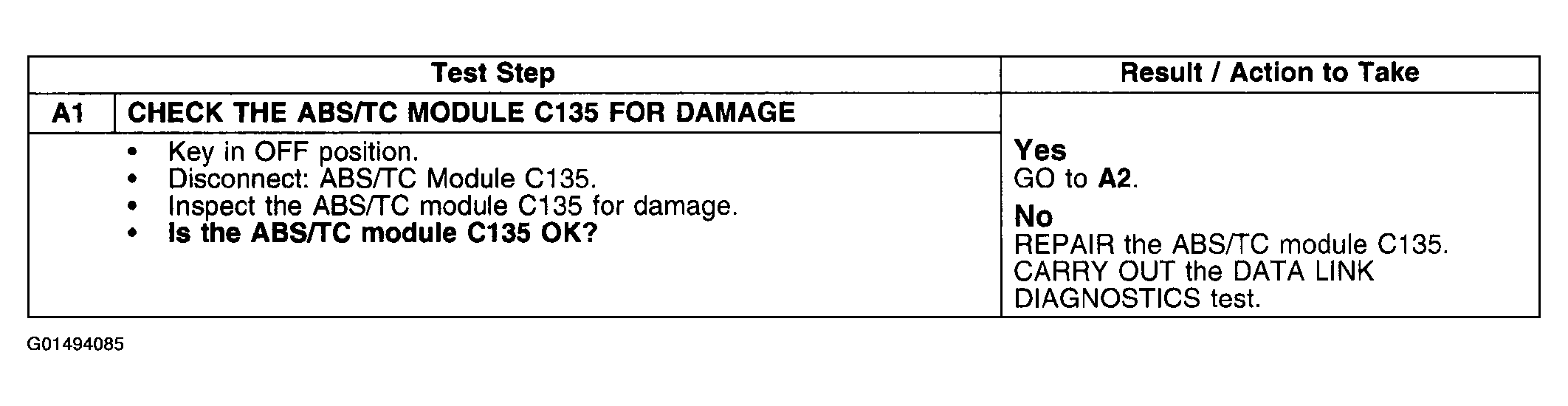

Fig 1: Pinpoint Test A: 4-Wheel Anti-Lock Brake/Traction Control (Abs/Tc) Module Or Stability Assist Module Does Not Respond To Diagnostic Tool (ISO) (A1)
G01494085Courtesy of FORD MOTOR CO.

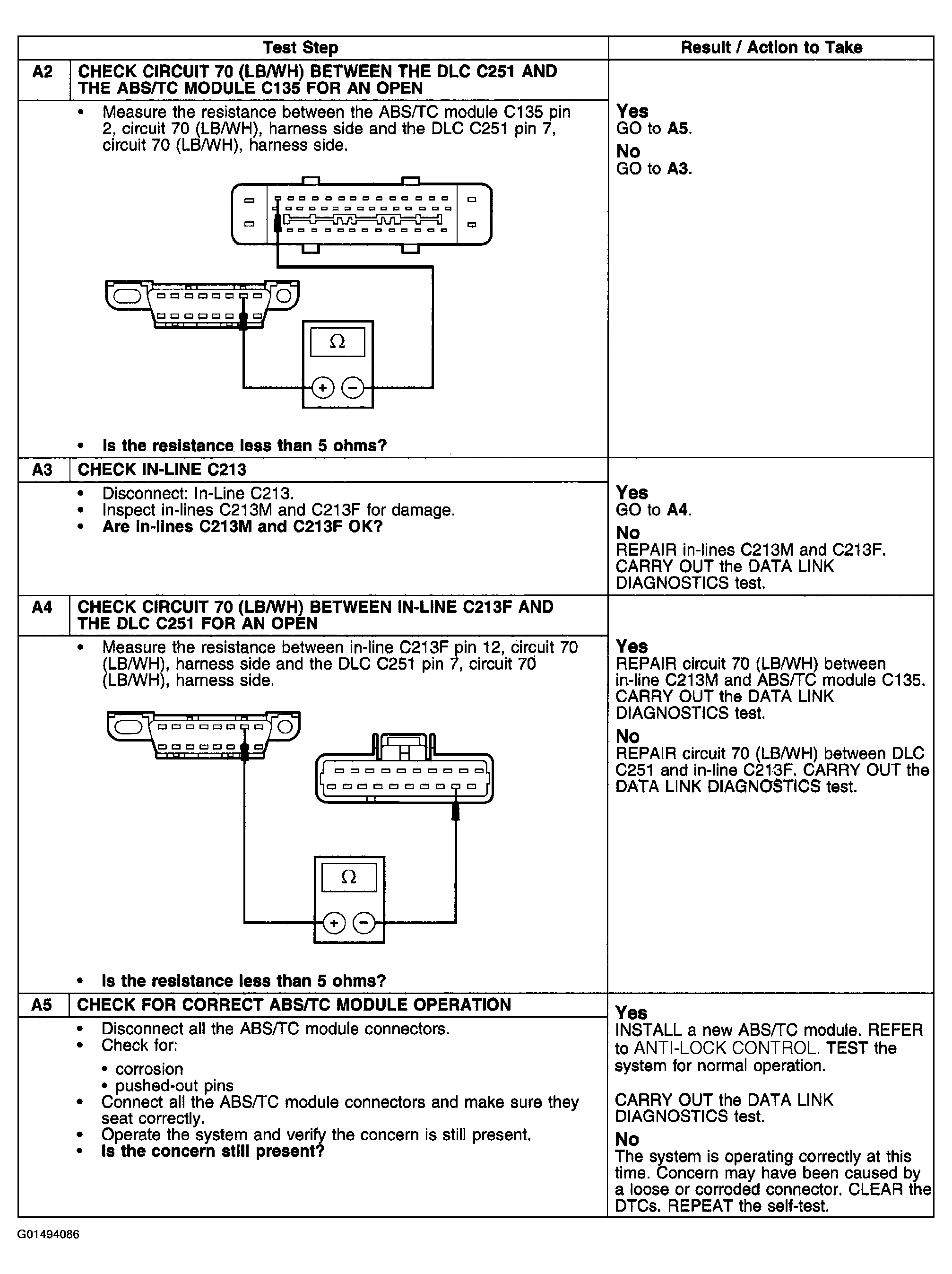

Fig 2: Pinpoint Test A: 4-Wheel Anti-Lock Brake/Traction Control (Abs/Tc) Module Or Stability Assist Module Does Not Respond To Diagnostic Tool (ISO) (A2-A5)
G01494086Courtesy of FORD MOTOR CO.
