| Bellhousing-To-Engine Block Bolt |
35 (47) |

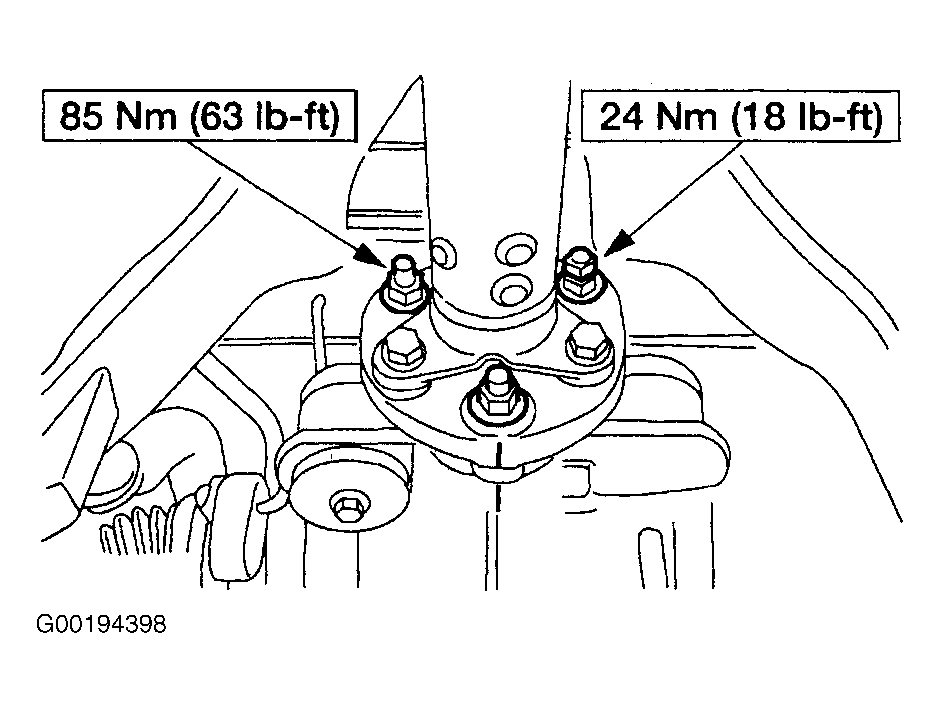

| Driveshaft-To-Transmission Flex Coupling Bolt/Nut |
| Nut |
63 (85) |
| Balance Add On Nut |
18 (25) |
| Driveshaft Yoke Locknut |
66 (90) |
| Flywheel Bolts |
59 (80) |
| Pressure Plate Bolts |
17 (23) |
| Slave Cylinder-To-Transmission Bolts |
16 (22) |
| Starter Retaining Bolts |
18 (25) |
| Transmission Support Bolts |
41 (55) |
| Transmission Support Insulator Bolt |
30 (40) |
| INCH Lbs. (N.m) |
| Clutch Master Cylinder Nuts |
89 (10) |
| Hydraulic Tube Bracket Nut |
89 (10) |
| Clutch Pedal Position (CPP) Switch Bracket Bolts |
89 (10) |
| Starter Solenoid Cable Lower Nut |
53 (6) |
| Starter Solenoid Cable Upper Nut |
106 (12) |
