Piston - Pin Diameter

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
- For additional information, see SPECIFICATIONS for 3.0L engine or SPECIFICATIONS for 3.9L engine.
- If out of specification, install new components as necessary. See 3.0L V6 VIN S or 3.9L VIN A .

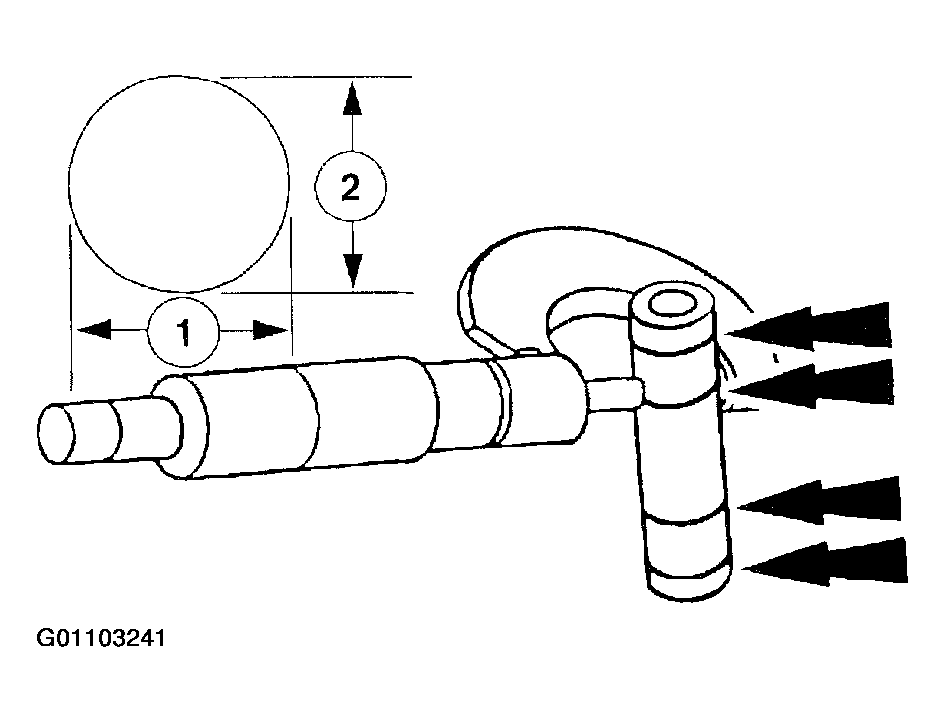

Fig 1: Measuring Piston Pin Diameter
Courtesy of FORD MOTOR CO.
