Connecting Rod - Bend

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

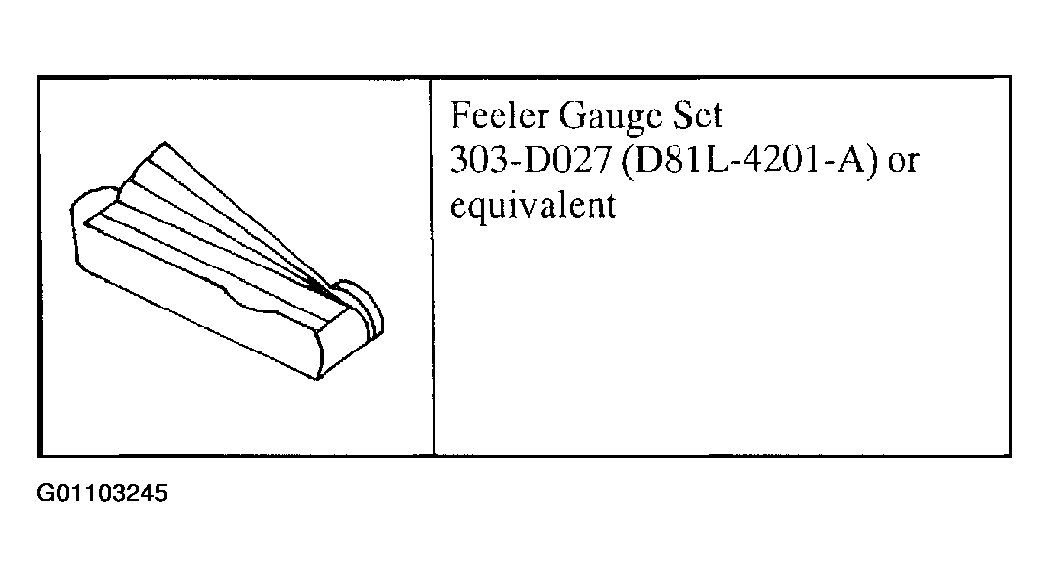

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
- For additional information, see SPECIFICATIONS for 3.0L engine or SPECIFICATIONS for 3.9L engine.
- If out of specification, install new components as necessary. See 3.0L V6 VIN S or 3.9L VIN A .

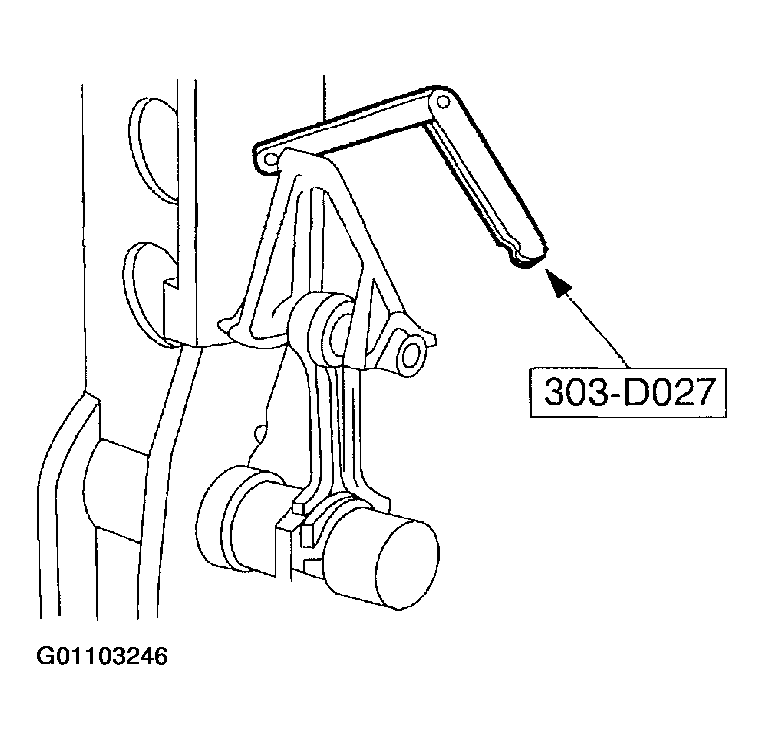

Fig 2: Measuring Connecting Rod Bend
Courtesy of FORD MOTOR CO.
