Connector Identification

Fig 1: DDM C501CF/FEM C201F/REM C420D 20-Pin Connector

Courtesy of FORD MOTOR CO.

Fig 2: DDM C501D/FEM C201E/REM C420C 26-Pin Connector

Courtesy of FORD MOTOR CO.

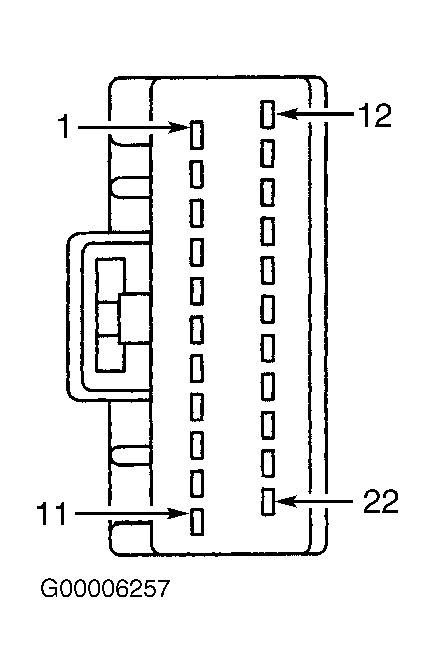

Fig 3: FEM C201B/REM C420B 22-Pin Connector

Courtesy of FORD MOTOR CO.

Fig 4: Door Lock Switch 6-Pin Connector

Courtesy of FORD MOTOR CO.

Fig 5: DDM C501A/FEM C201C/REM C420A 12-Pin Connector

Courtesy of FORD MOTOR CO.

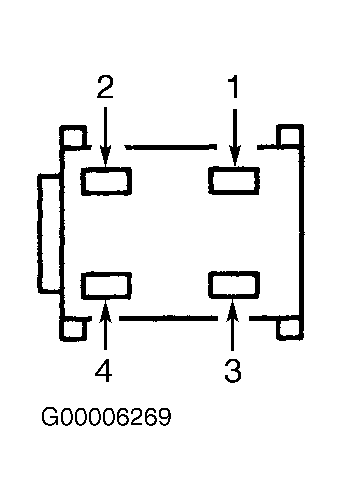

Fig 6: DDM C501B/FEM C201D 4-Pin Connector

Courtesy of FORD MOTOR CO.

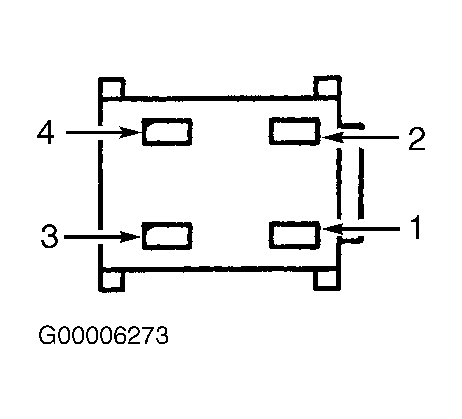

Fig 7: Rear Electronic Module 4-Pin Connector C420F

Courtesy of FORD MOTOR CO.

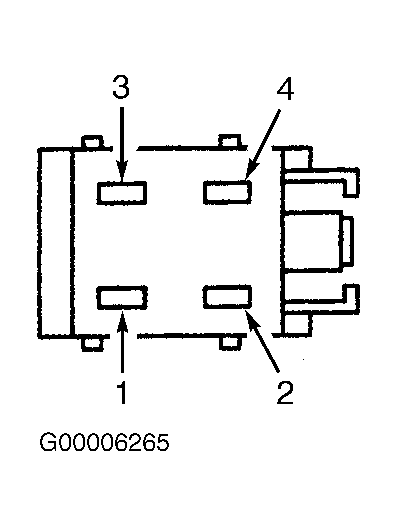

Fig 8: Rear Electronic Module 4-Pin Connector C420G

Courtesy of FORD MOTOR CO.

Fig 9: Front Electronic Module 17-Pin Connector C201A

Courtesy of FORD MOTOR CO.

Fig 10: Door Lock Actuator Connector C525, C609, C704 & C804

Courtesy of FORD MOTOR CO.
