Electronic Parking Brake Module C4205b

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

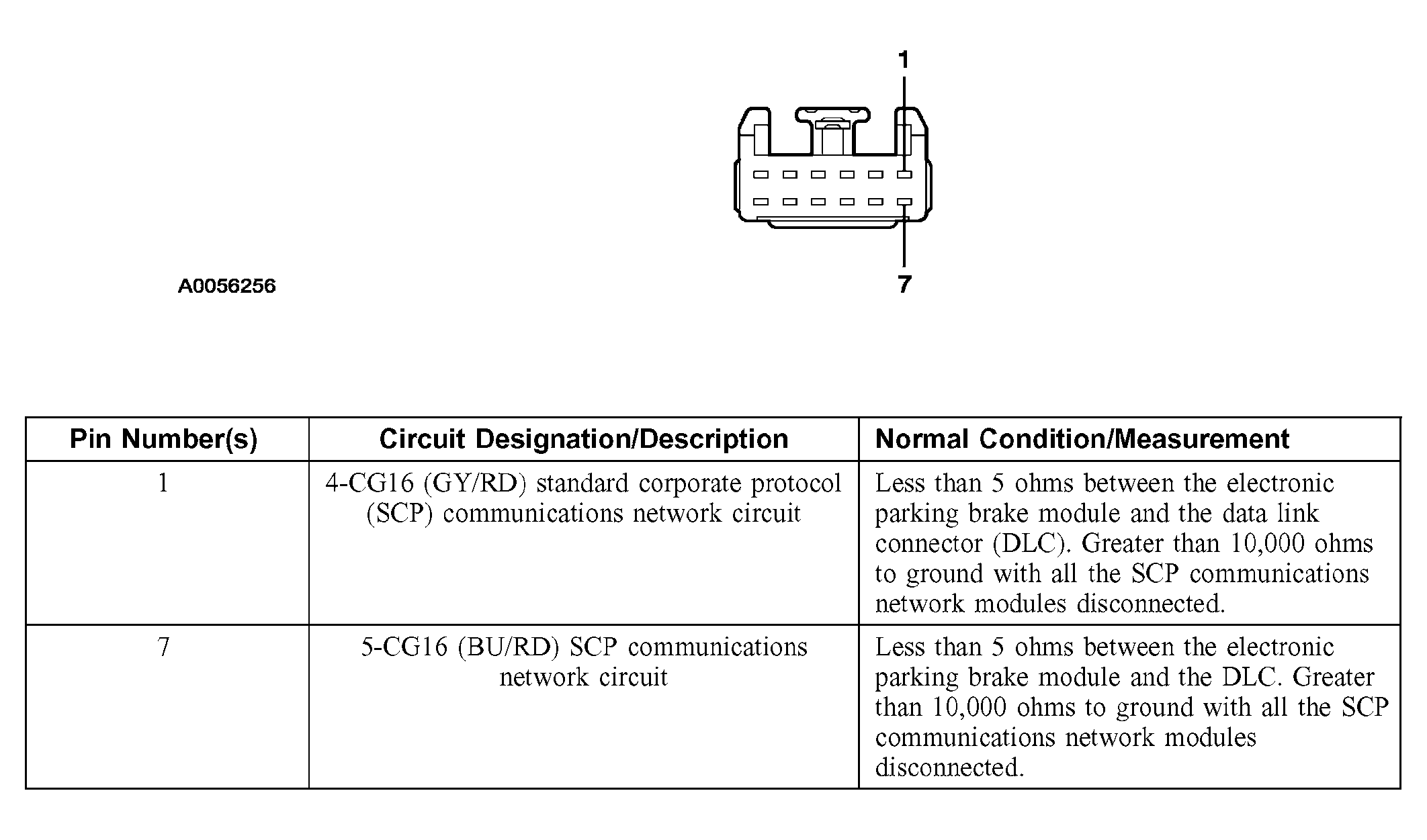

Fig 1: Identifying Electronic Parking Brake Module C4205b
G03998814Courtesy of FORD MOTOR CO.
