10 Dual Automatic Temperature Control (DATC) C228a

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

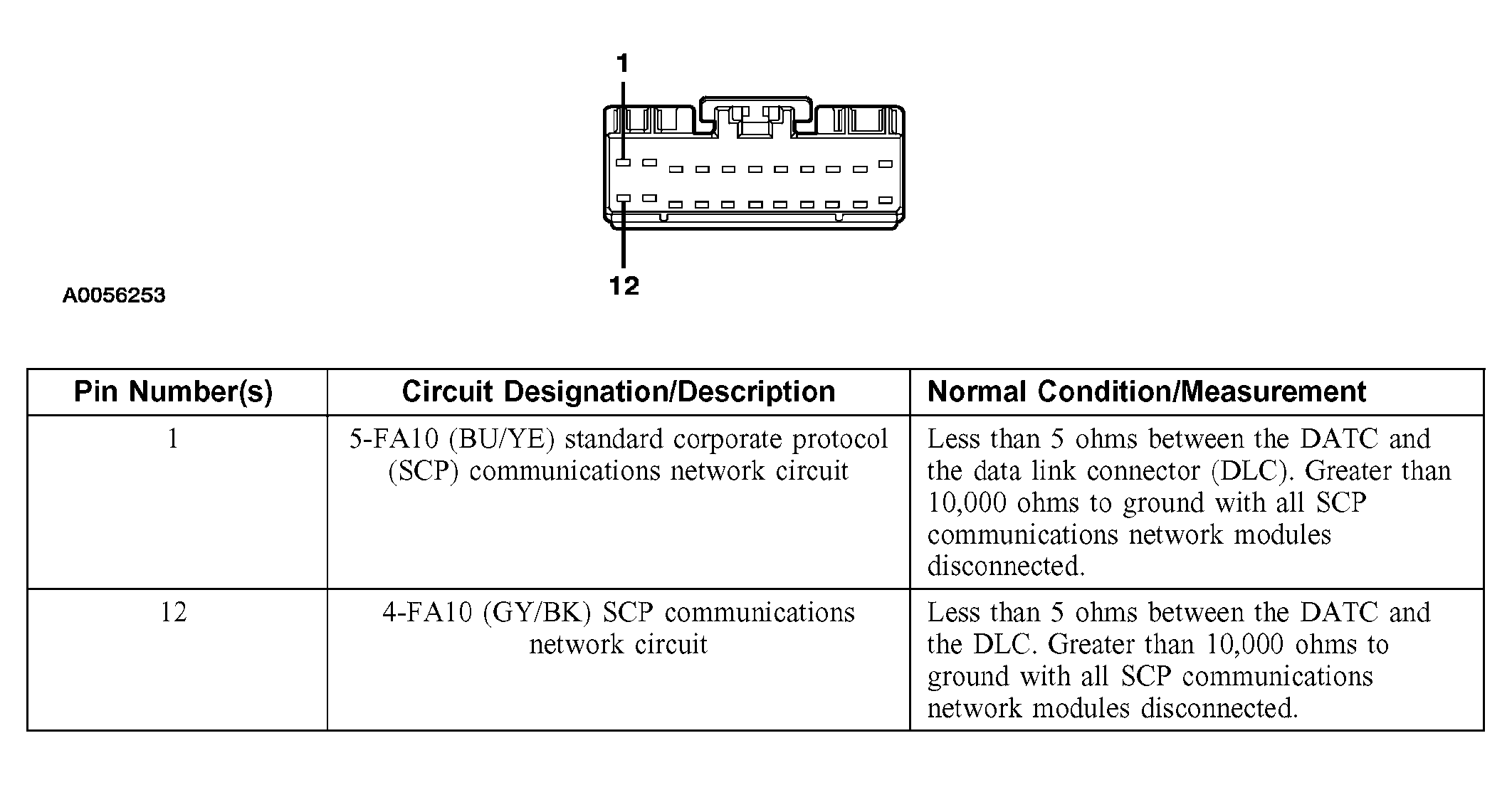

Fig 1: Identifying 10 Dual Automatic Temperature Control (DATC) C228A
G03998798Courtesy of FORD MOTOR CO.
