Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

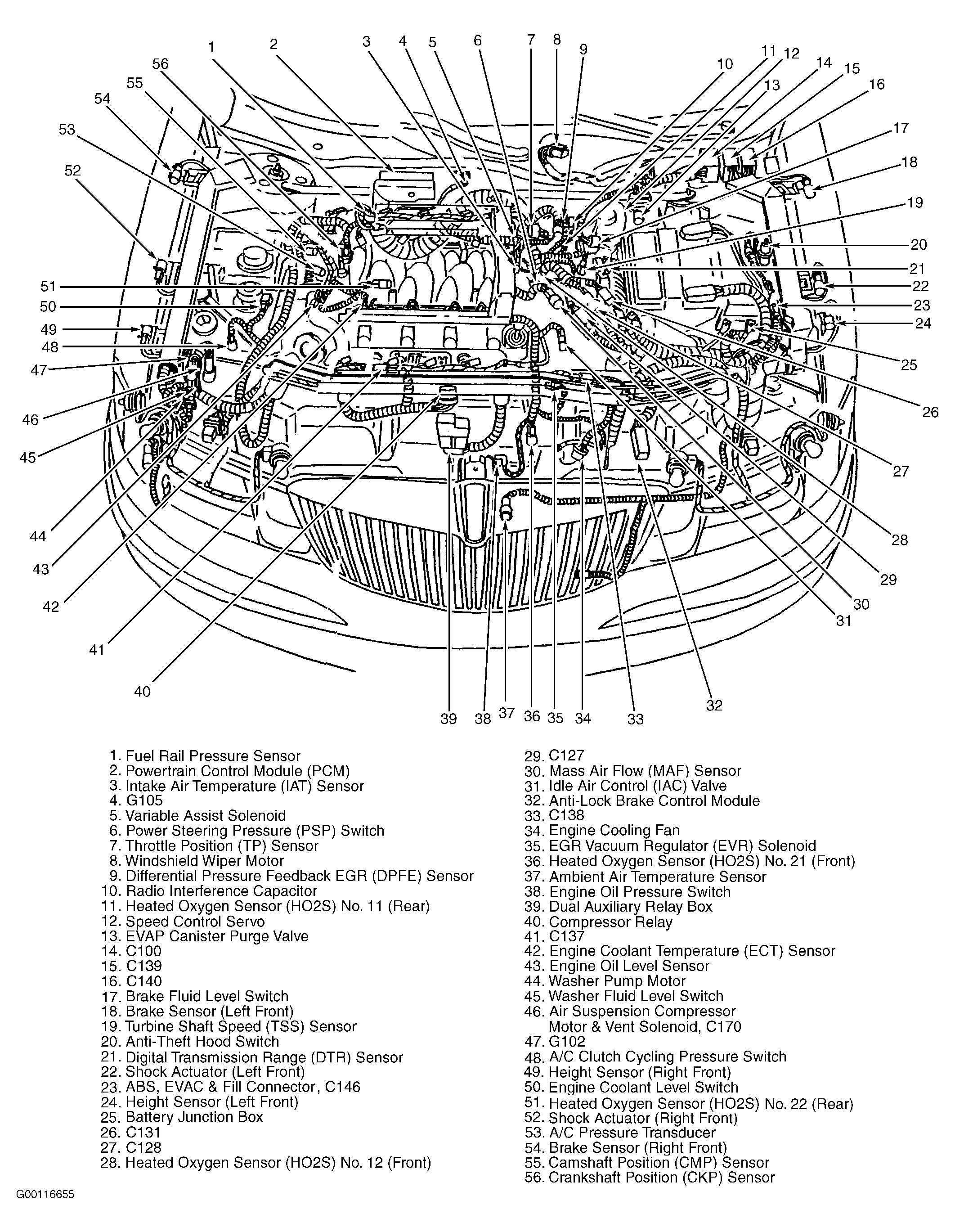

Battery Junction Box In engine compartment, above left wheelwell. See Figure.
Dual Auxiliary Relay Box Center of engine compartment, on upper radiator support. See Figure.

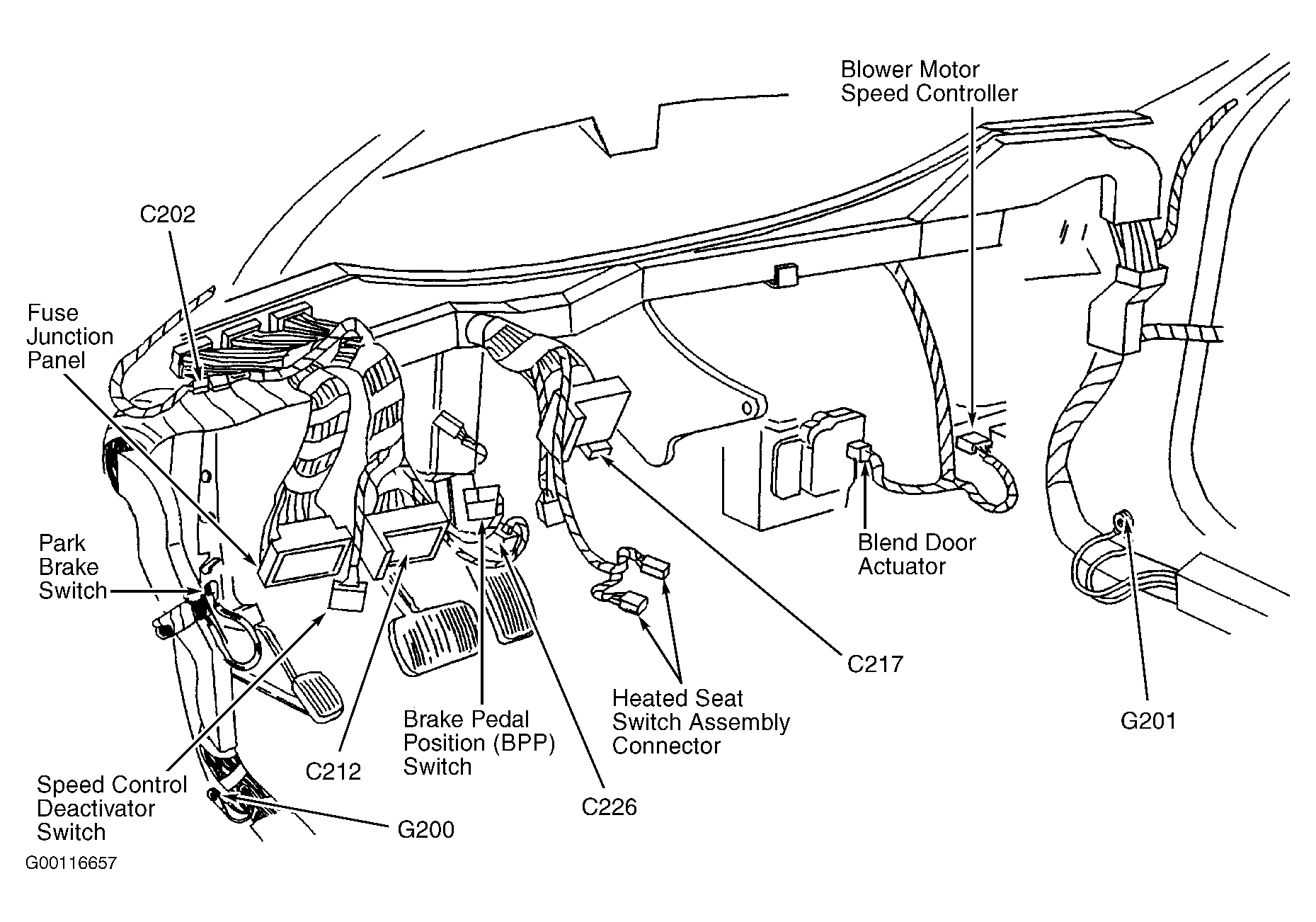

Fuse Junction Panel Below left side of dash. See Figure.
Power Distribution Box In battery junction box.
