Engine Compartment Fuse Identification: Notes

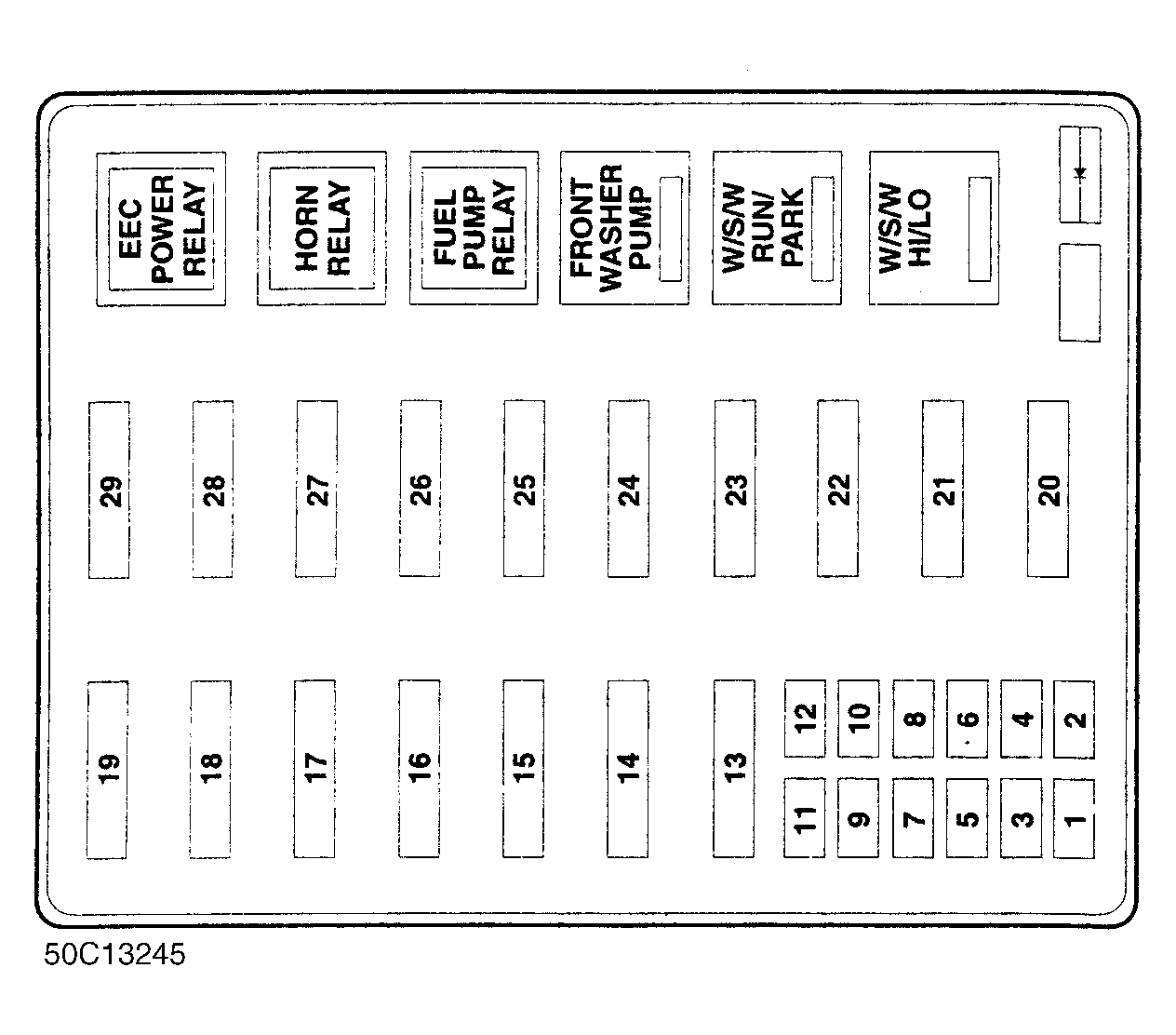

Fig 1: Engine Compartment Fuse Identification
G50C13245Courtesy of FORD MOTOR CO.
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
