Contact Assembly (CLOCKSPRING): Installation

To install, reverse removal procedure. Tighten steering wheel bolt to specification. See TORQUE SPECIFICATIONS . Check AIR BAG light for system faults.

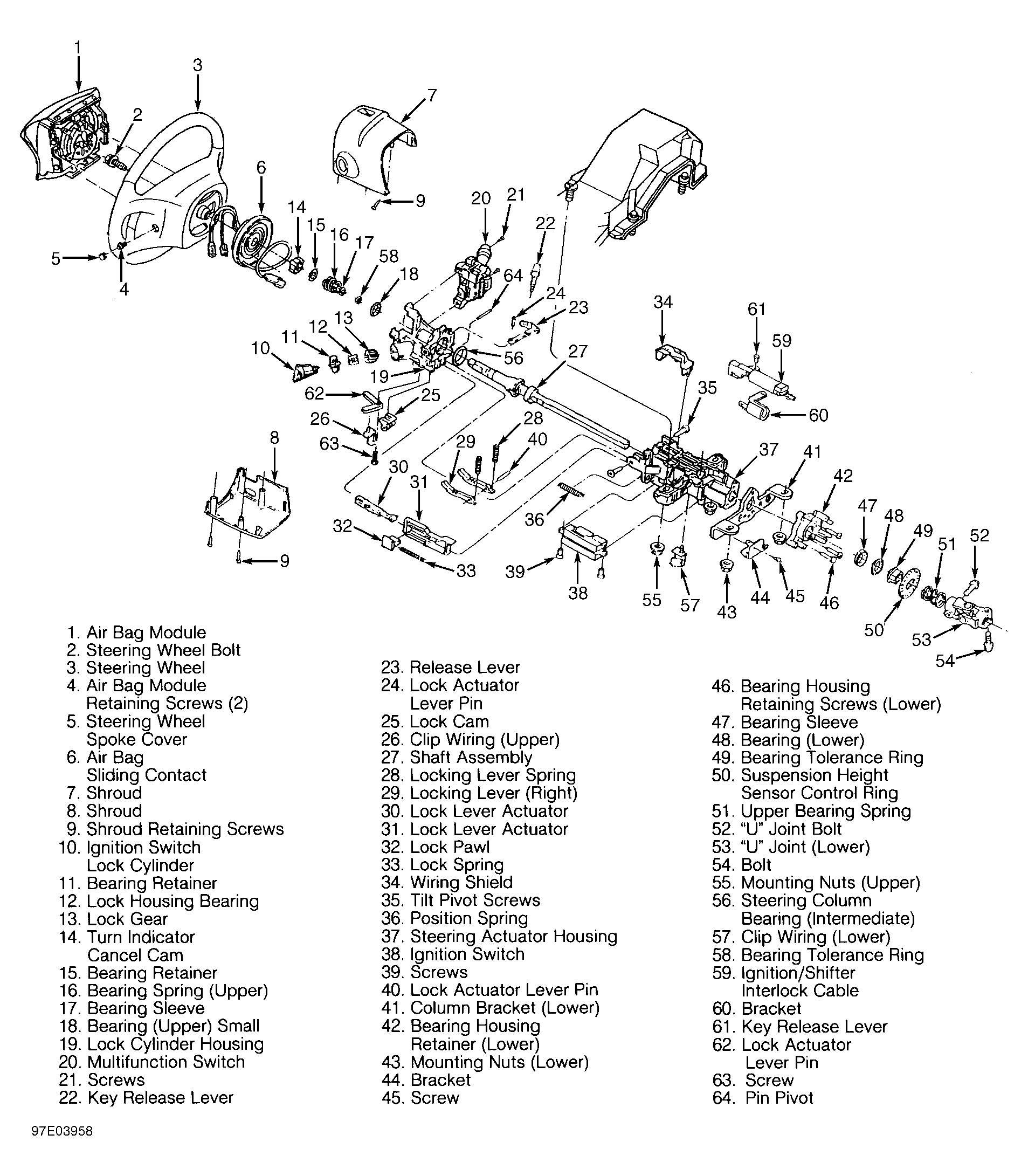

Fig 1: Exploded View Of Steering Column (Floor Shift - Typical)

Courtesy of FORD MOTOR CO.
