Vehicle Speed Sensor: Installation

  1. Install the driven gear. Install the retaining clip. Install vehicle speed sensor (VSS) drive gear. See Fig 2 .
  2. Install the VSS. Install the bolt. Tighten to specification. See TORQUE SPECIFICATIONS  . Connect the electrical connector. See Fig 1 .

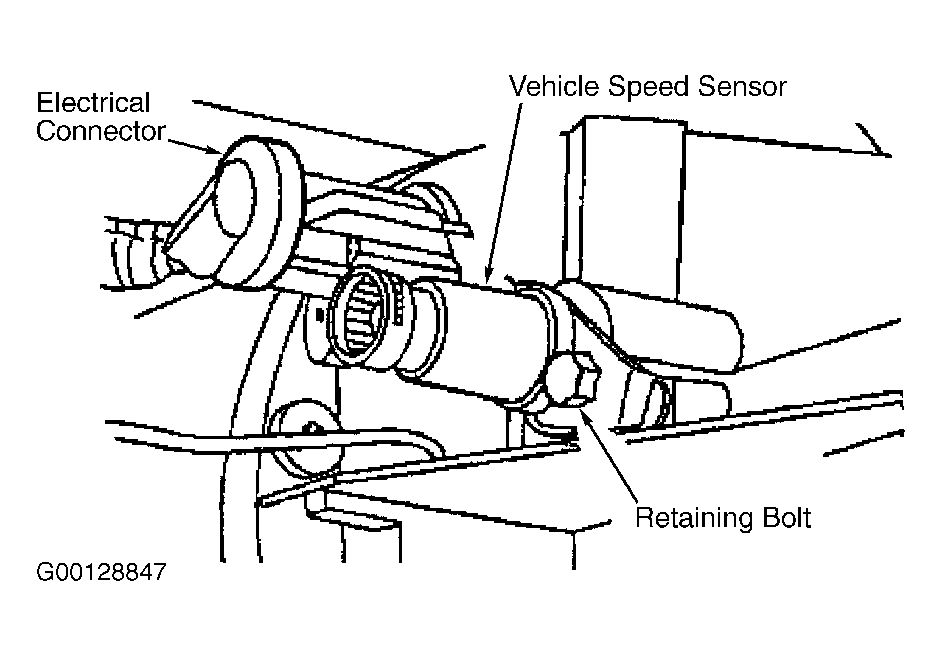

Fig 1: Identifying Vehicle Speed Sensor (VSS)
G00128847Courtesy of FORD MOTOR CO.

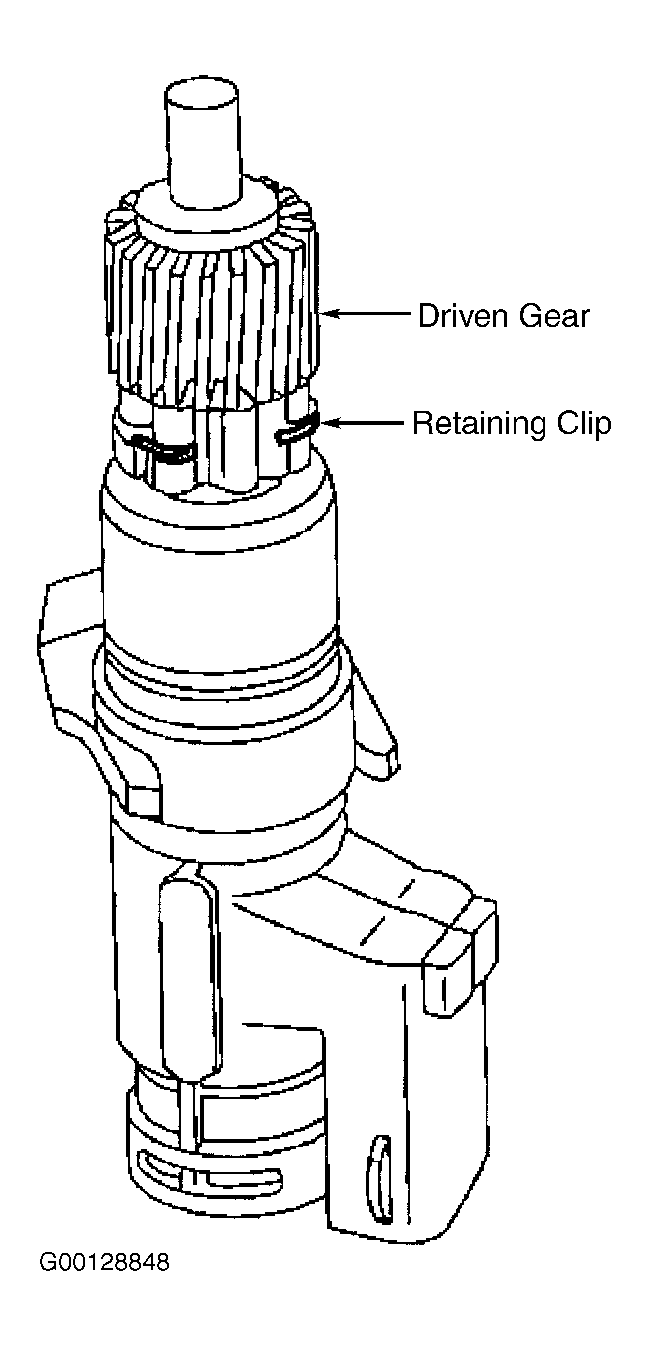

Fig 2: Identifying Vehicle Speed Sensor Components
G00128848Courtesy of FORD MOTOR CO.
