LEMON Manuals: Even more car manuals for everyone
Home >> Lincoln >> 1997 >> Mark VIII Base >> Repair and Diagnosis >> Steering >> Electronic Steering >> Symptom Charts

Symptom Charts

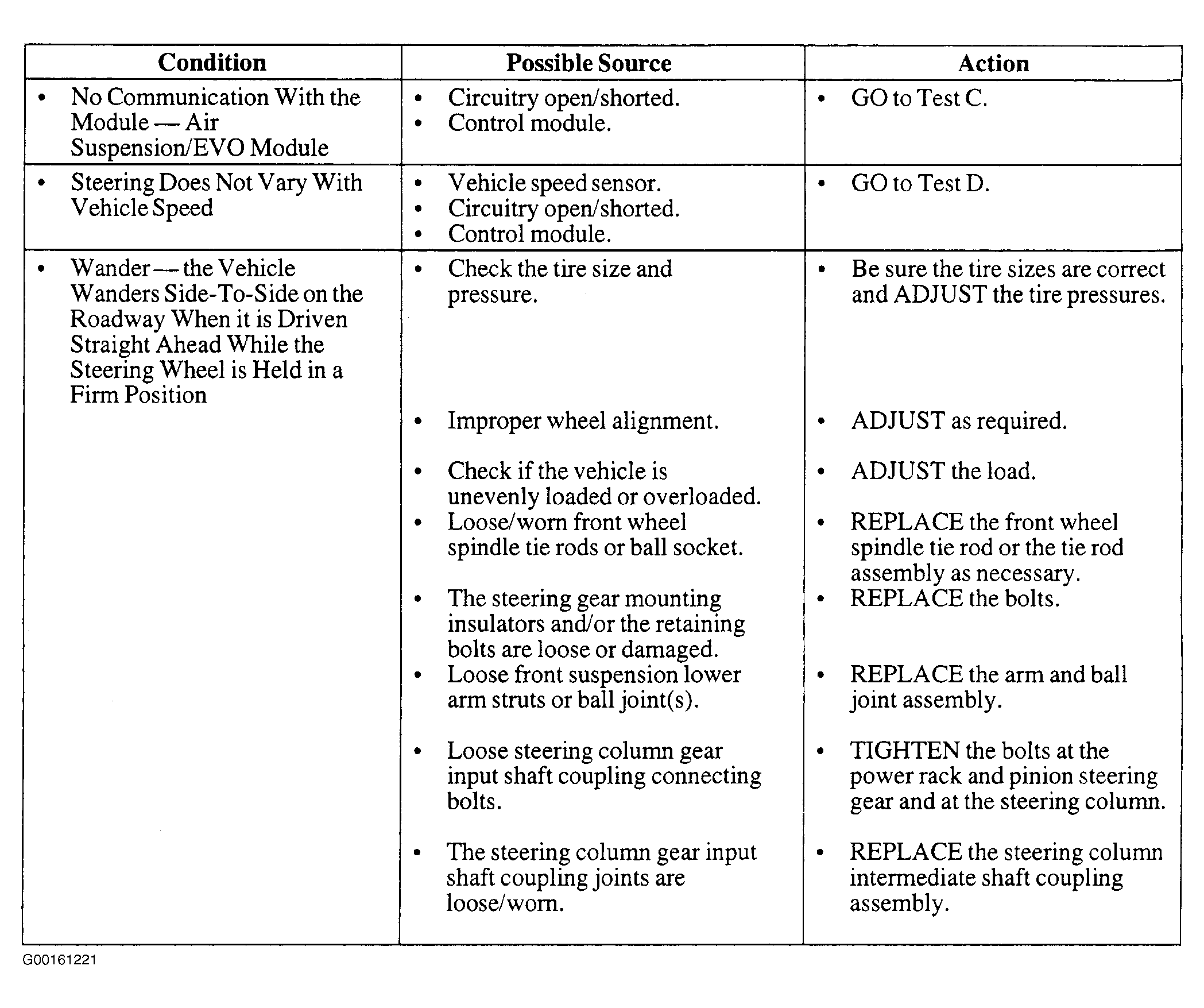

Fig 1: Symptom Chart (1 Of 6)
G00161221Courtesy of FORD MOTOR CO.

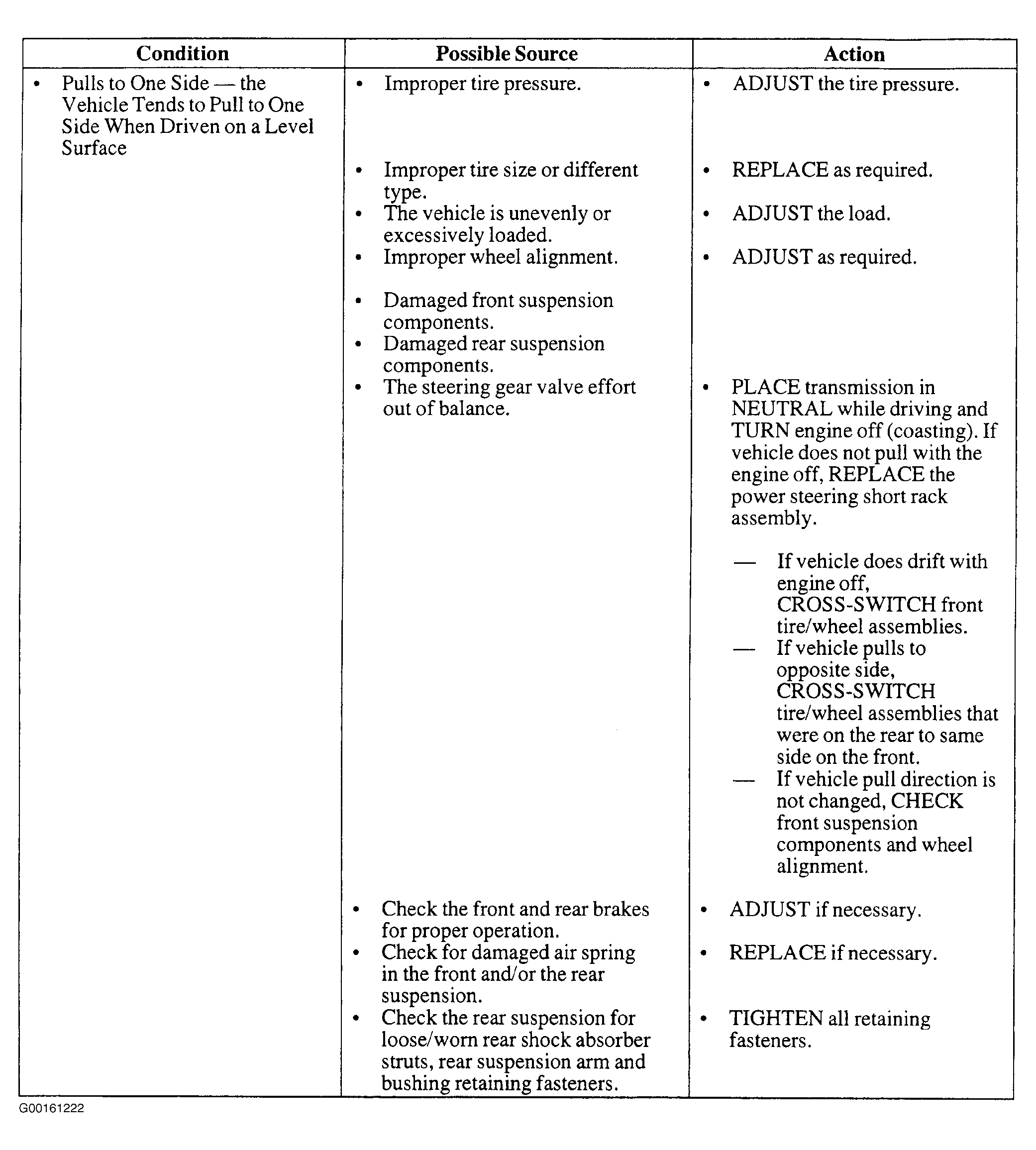

Fig 2: Symptom Chart (2 Of 6)
G00161222Courtesy of FORD MOTOR CO.

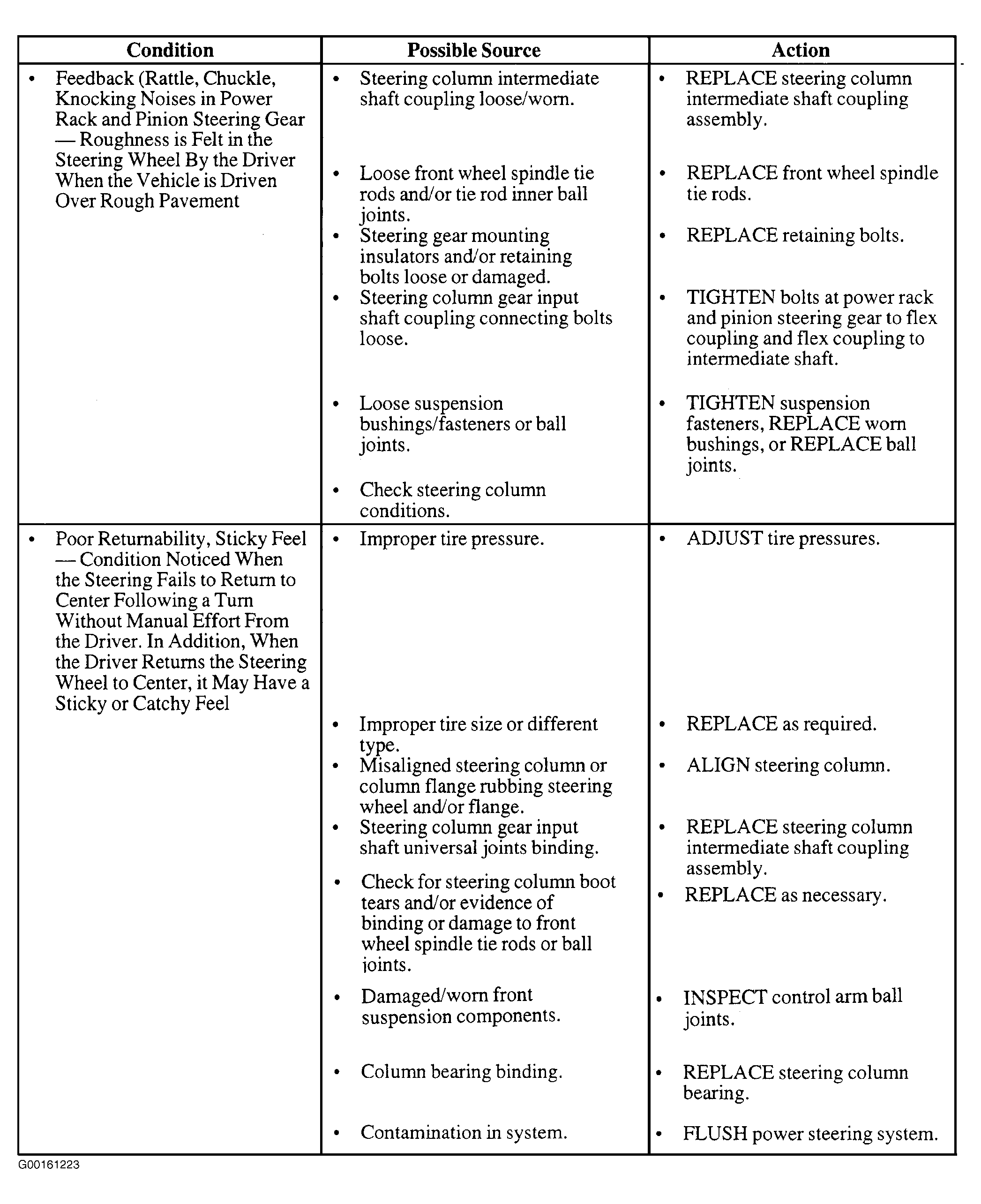

Fig 3: Symptom Chart (3 Of 6)
G00161223Courtesy of FORD MOTOR CO.

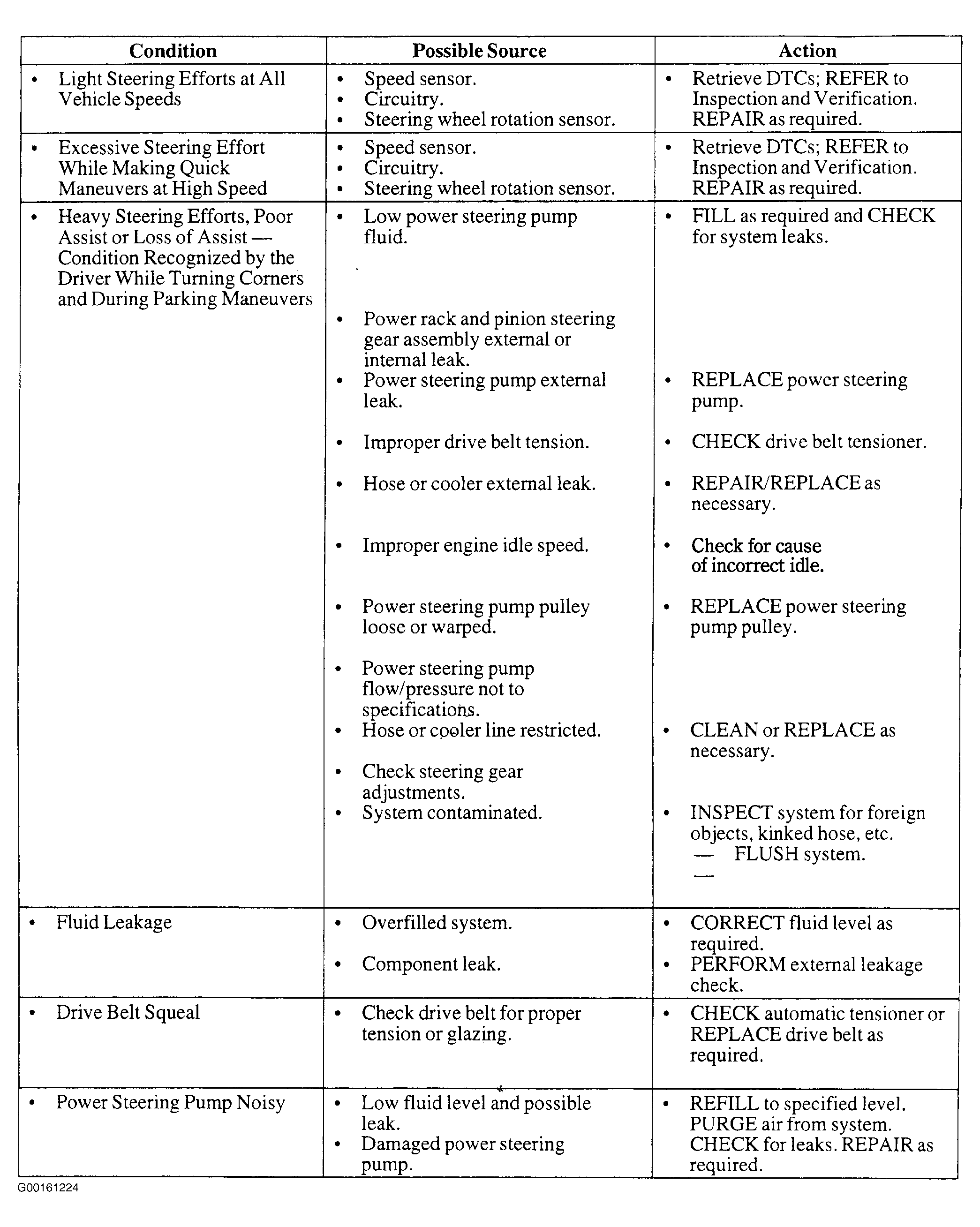

Fig 4: Symptom Chart (4 Of 6)
G00161224Courtesy of FORD MOTOR CO.

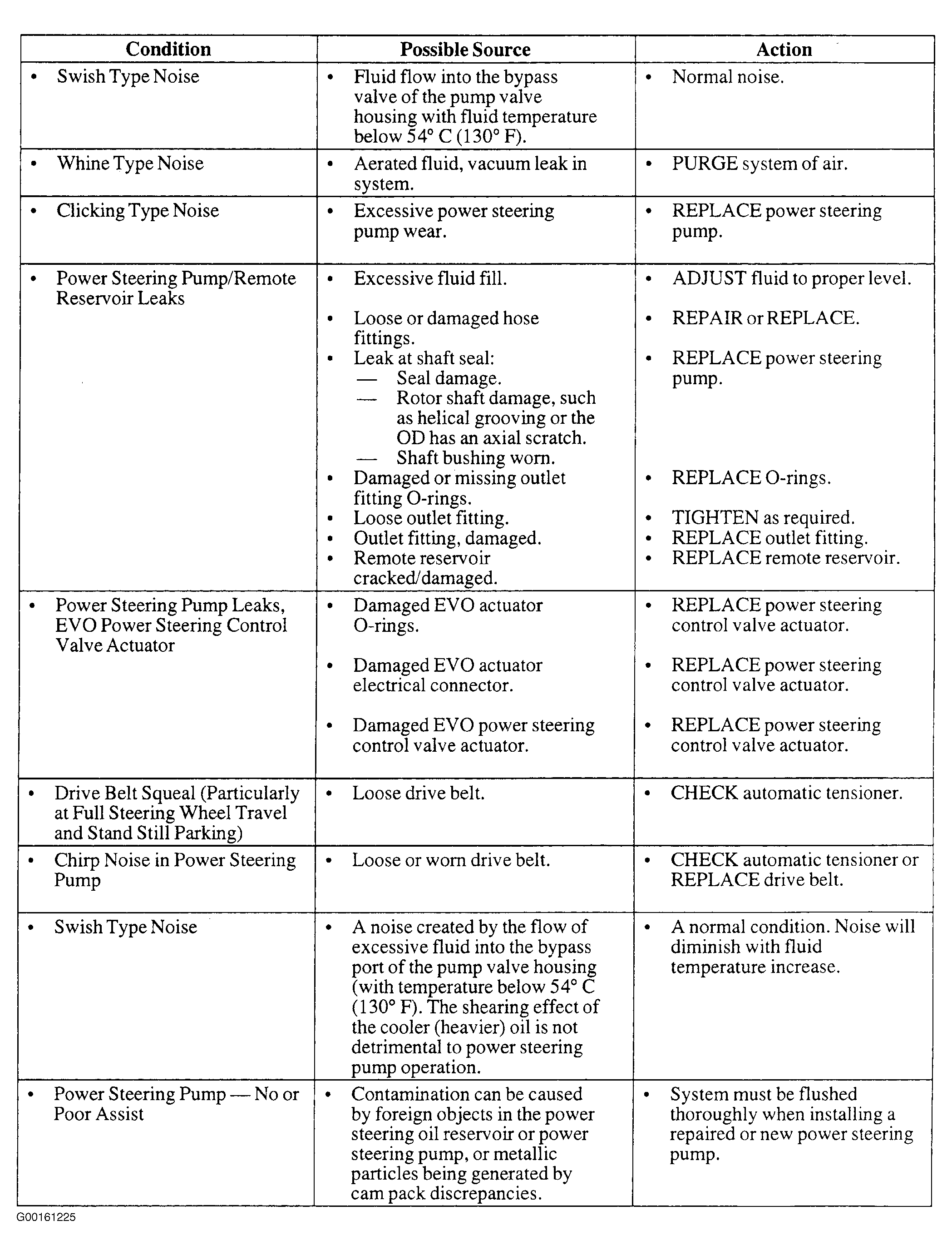

Fig 5: Symptom Chart (5 Of 6)
G00161225Courtesy of FORD MOTOR CO.

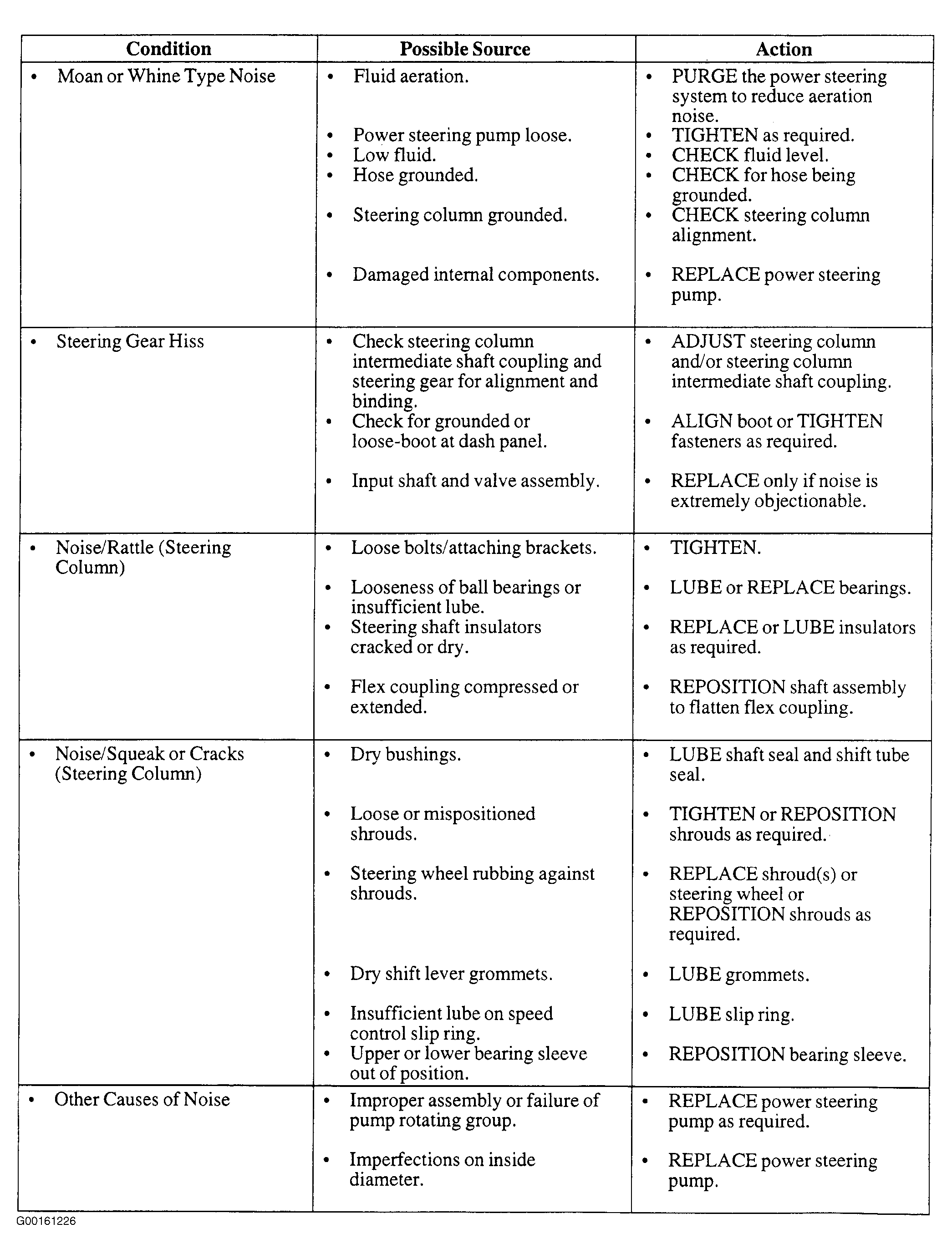

Fig 6: Symptom Chart (6 Of 6)
G00161226Courtesy of FORD MOTOR CO.
