Steering Sensor: Removal

  1. Working inside the vehicle, under the dash panel in the driver compartment at the bottom of the steering column, disconnect the electrical connector from the shock absorber electronic steering sensor. See Fig 1 .
  2. Remove the two sensor-to-steering column retaining screws. Remove the shock absorber electronic steering sensor. See Fig 2 .

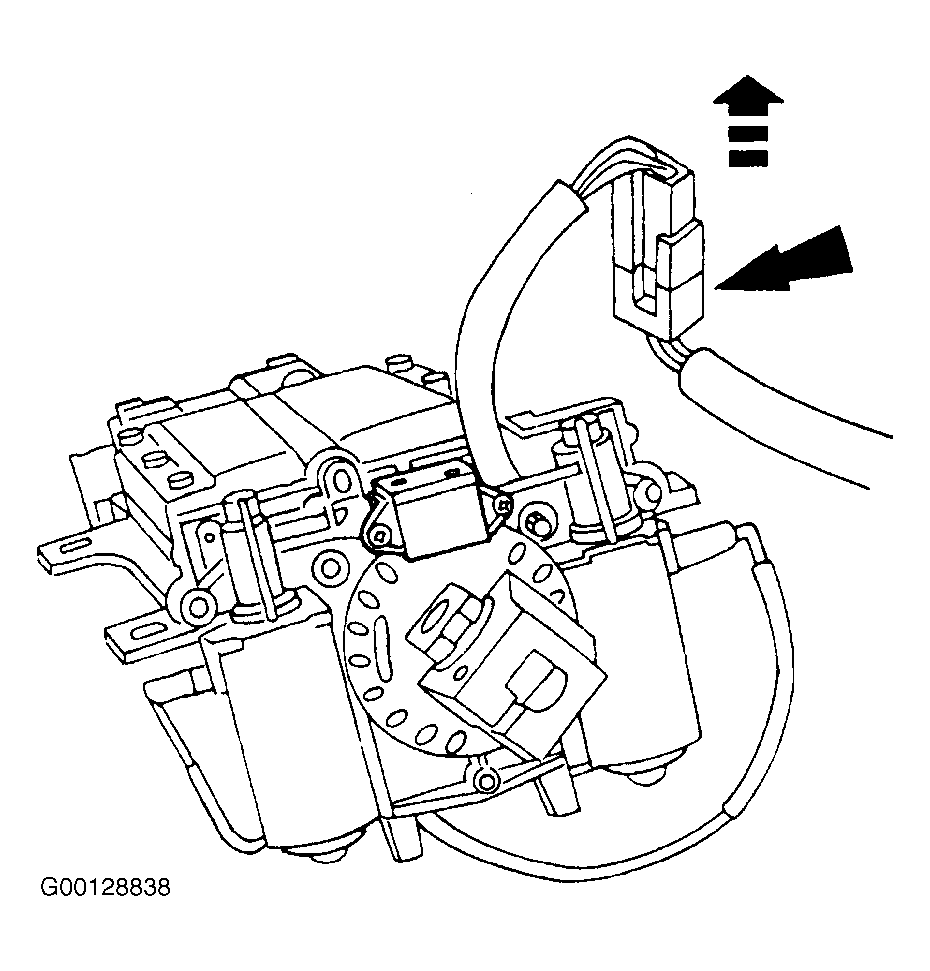

Fig 1: Disconnecting Electrical Connector From Shock Absorber Electronic Steering Sensor
G00128838Courtesy of FORD MOTOR CO.

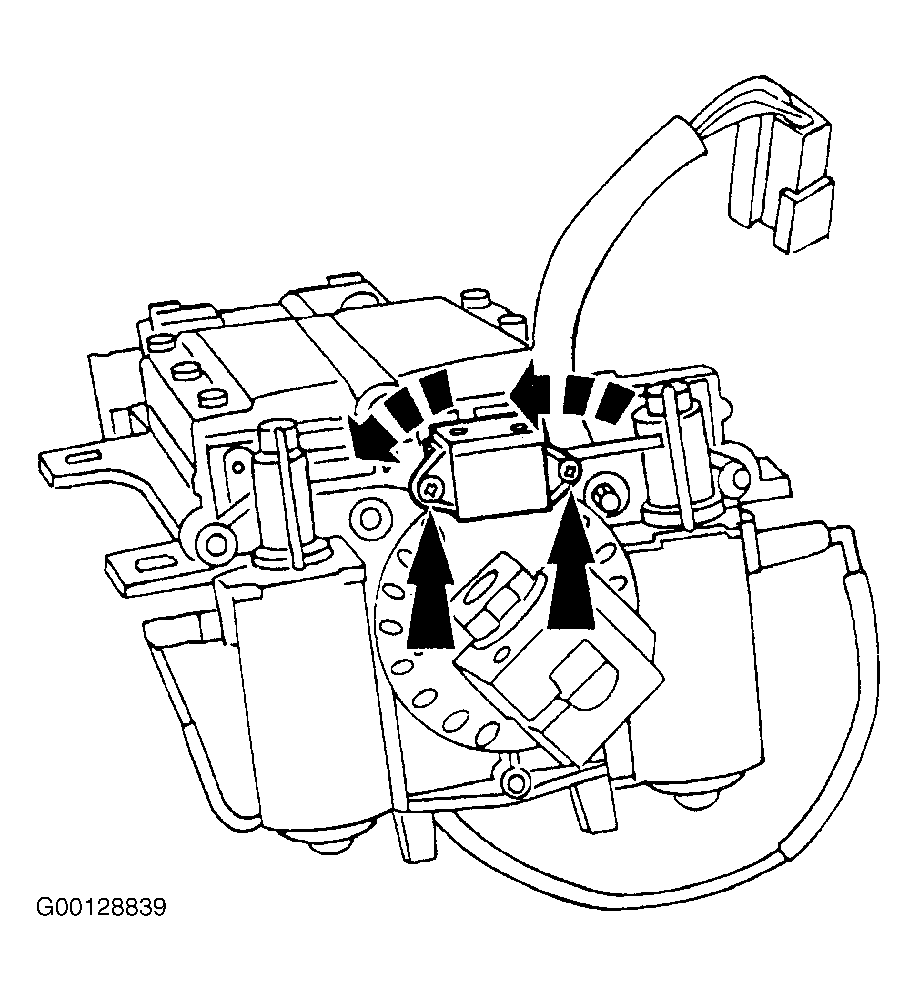

Fig 2: Identifying Sensor-to-Column Retaining Screws
G00128839Courtesy of FORD MOTOR CO.
