Pin Voltage/PID Value Charts
Pin Voltage/PID Value Charts

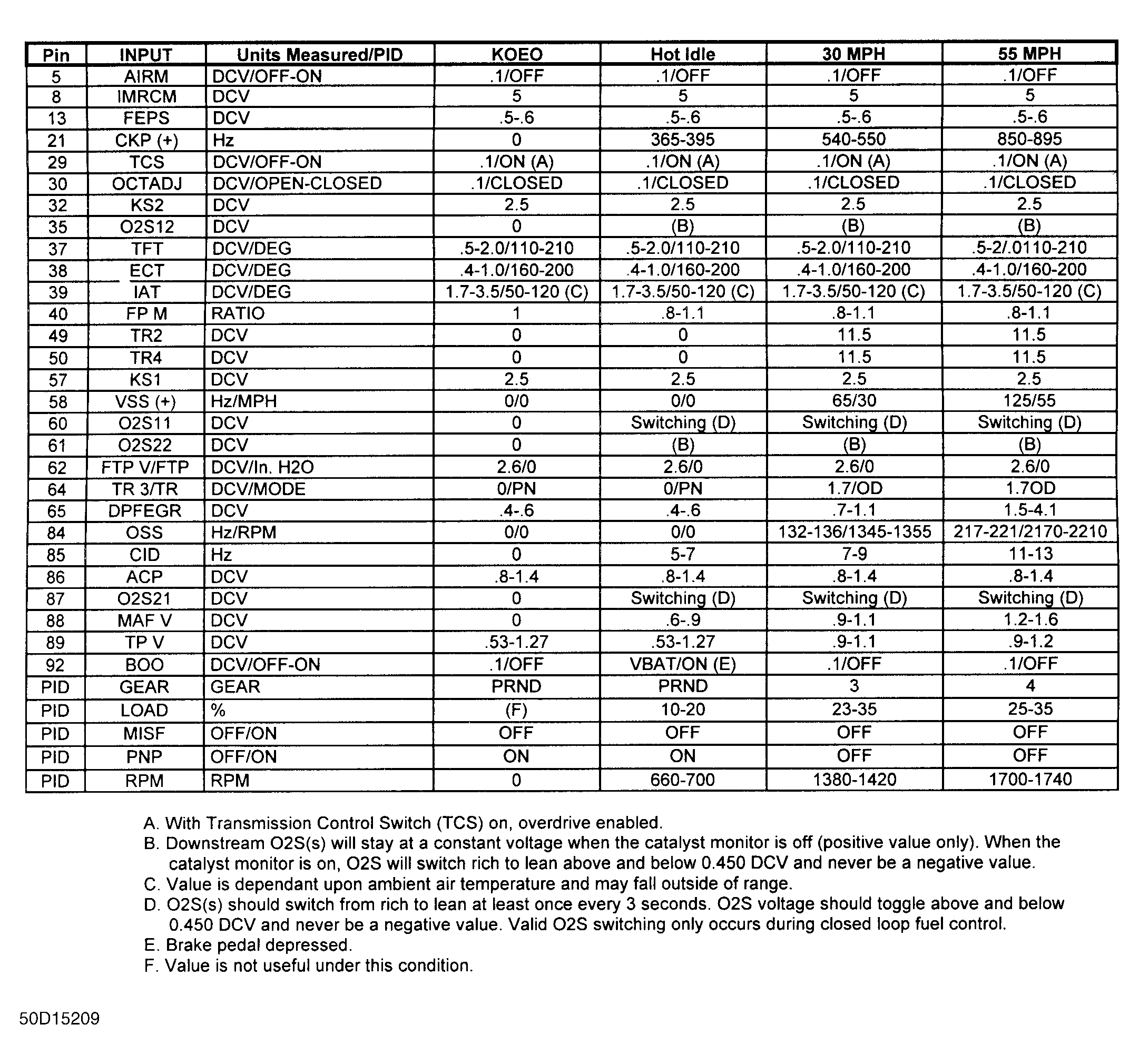

Fig 1: Pin Voltage/PID Values (Mark VIII - 1 Of 2)

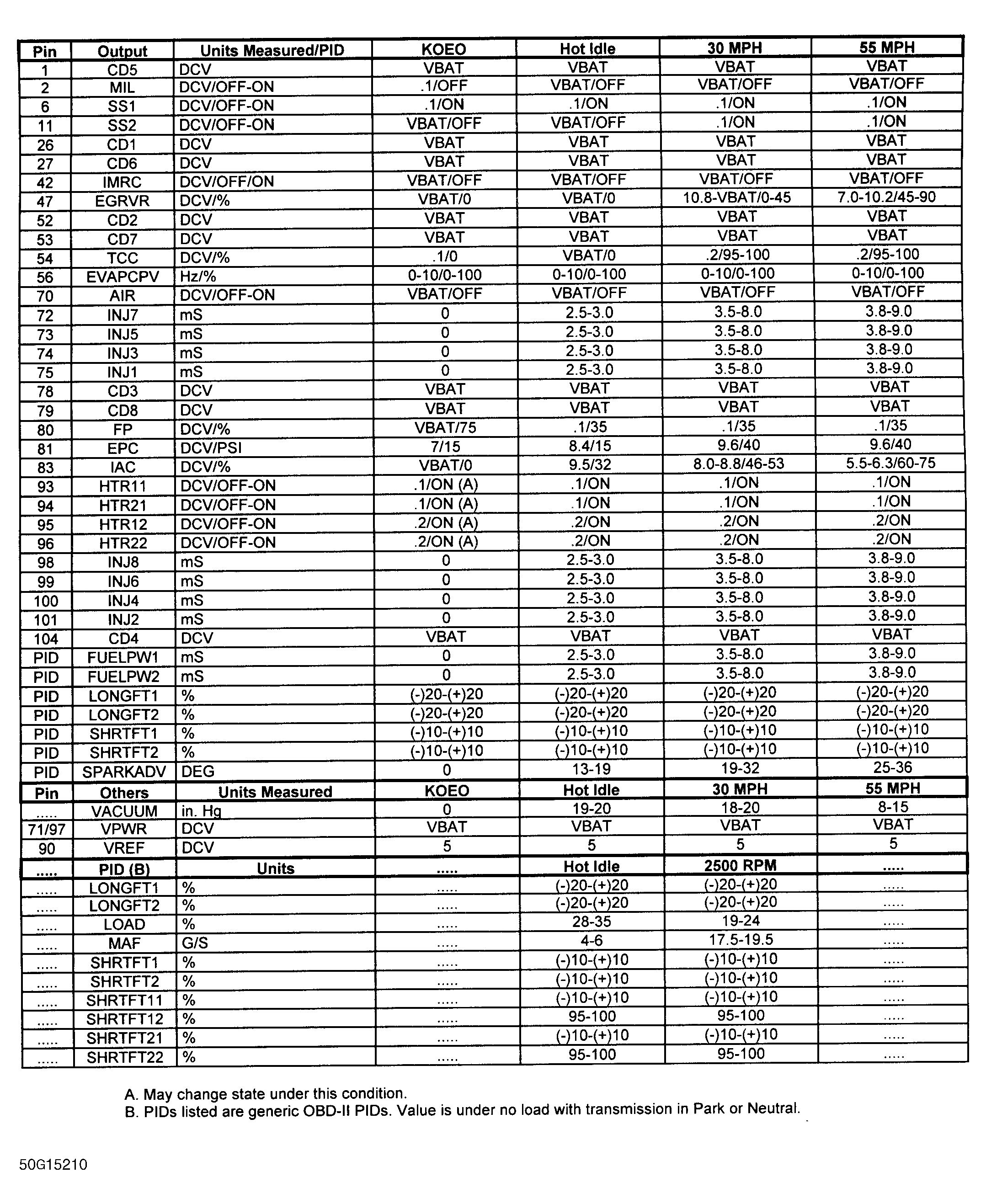

Fig 2: Pin Voltage/PID Values (Mark VIII - 2 Of 2)
