Axle Ratio & Identification

A metal tag stamped with build date, gear ratio, ring gear diameter and assembly plant code is mounted under top center housing cover bolt. See Fig 1 .

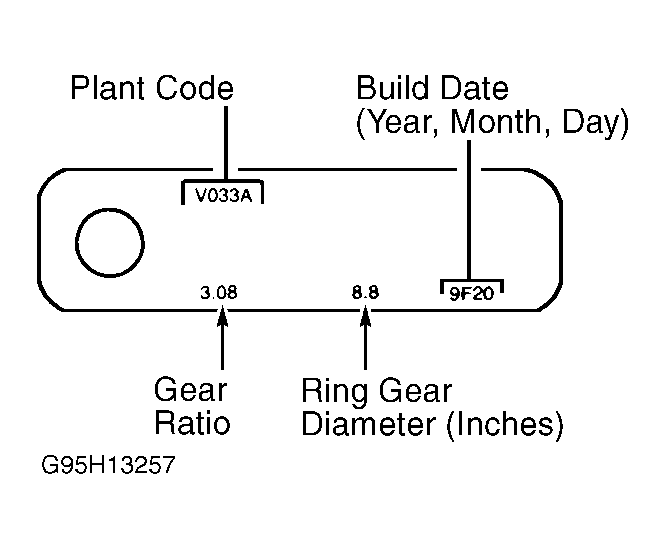

Fig 1: Identifying Rear Axle Identification Tag

Courtesy of FORD MOTOR CO.
