Temperature Selection Buttons

WARNING: This page is about a different car, the 1996 Mercury Grand Marquis and 1996 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Buttons allow desired in-car temperature selection. Pressing Red (warm temp) button increases temperature setting in one-degree increments up to 85°F (29°C), with a final jump to 90°F (32°C) for maximum heating. Pressing Blue (cool temp) button decreases temperature setting in one-degree decrements to 65°F (18°C), with a final jump to 60°F (16°C) for maximum cooling.

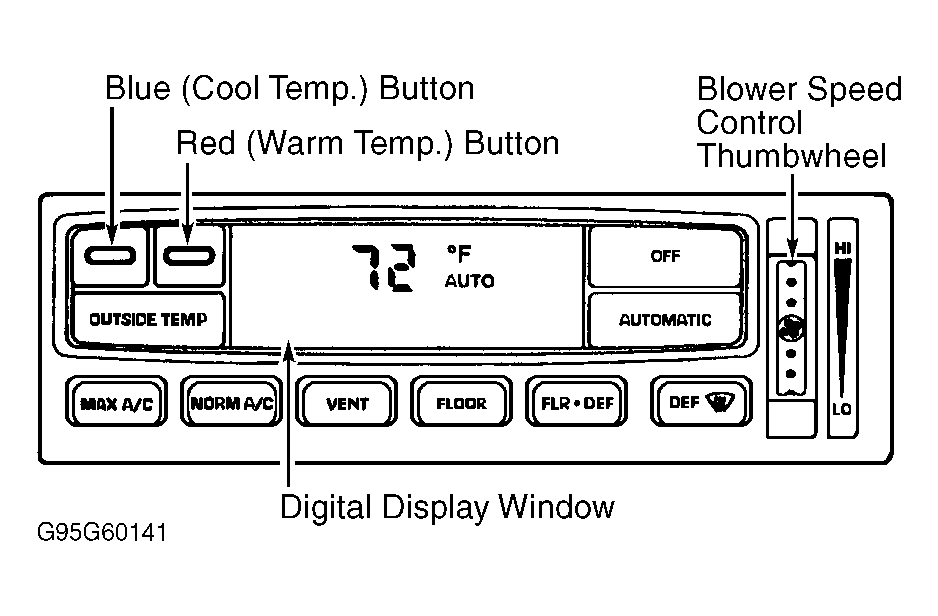

Fig 1: Identifying EATC Module
G95G60141Courtesy of FORD MOTOR CO.
