Remote Keyless Entry System

The remote keyless entry system has 4 main components: a Remote Keyless Entry Module (RKEM) located in trunk behind left wheel well, a keypad located on the driver's door, an antenna located in the wiring harness near the RKEM, and a remote transmitter.

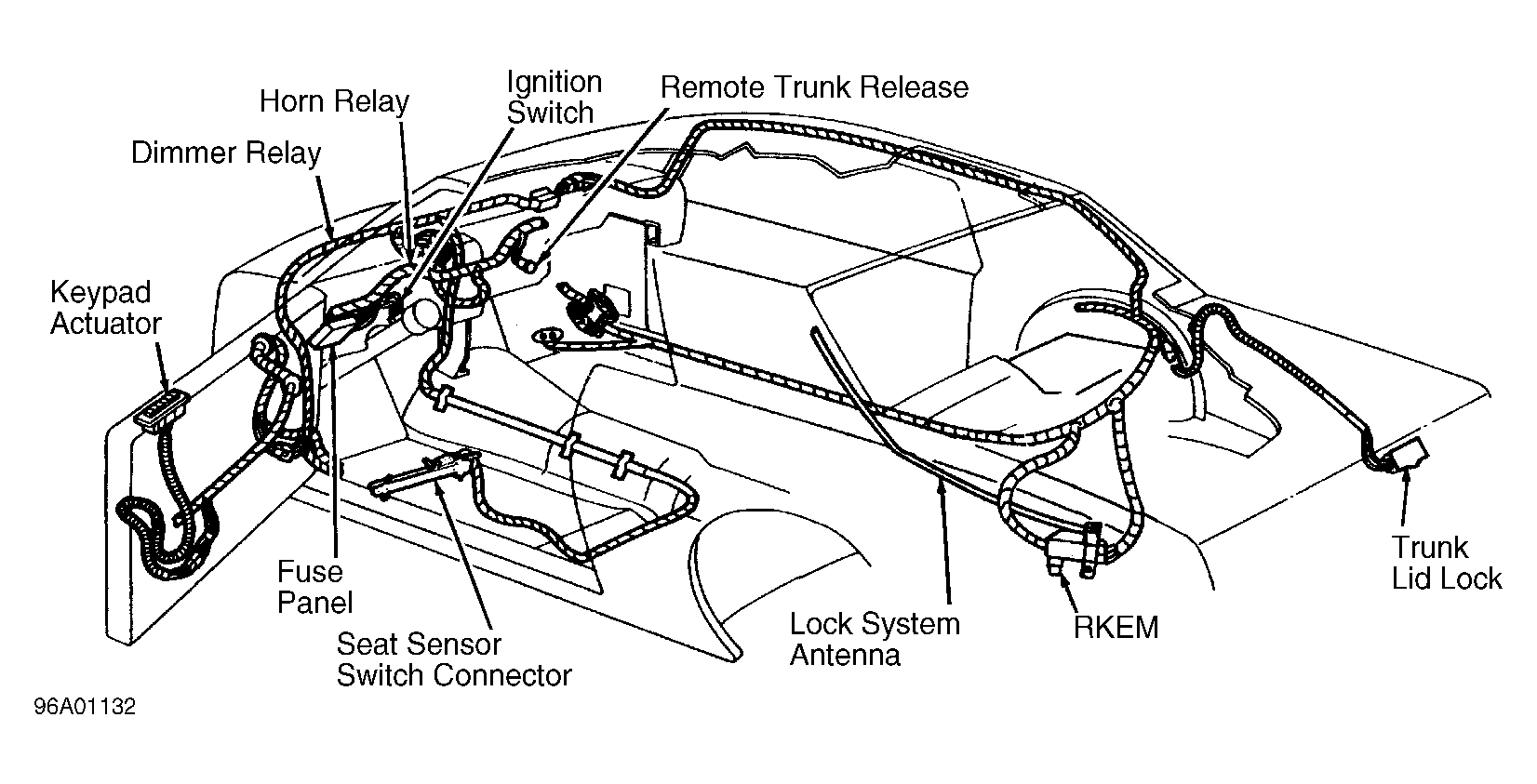

Fig 1: Keyless Entry System Components (Mark VIII)
G96A01132Courtesy of FORD MOTOR CO.
