Keyless Entry System - Remote: Testing: Notes

At least one remote transmitter is required for testing. The following tests make numerous references to RKEM connectors and terminals. See Fig. 2. See DOOR LOCKS & TRUNK RELEASE - POWER article for further information.

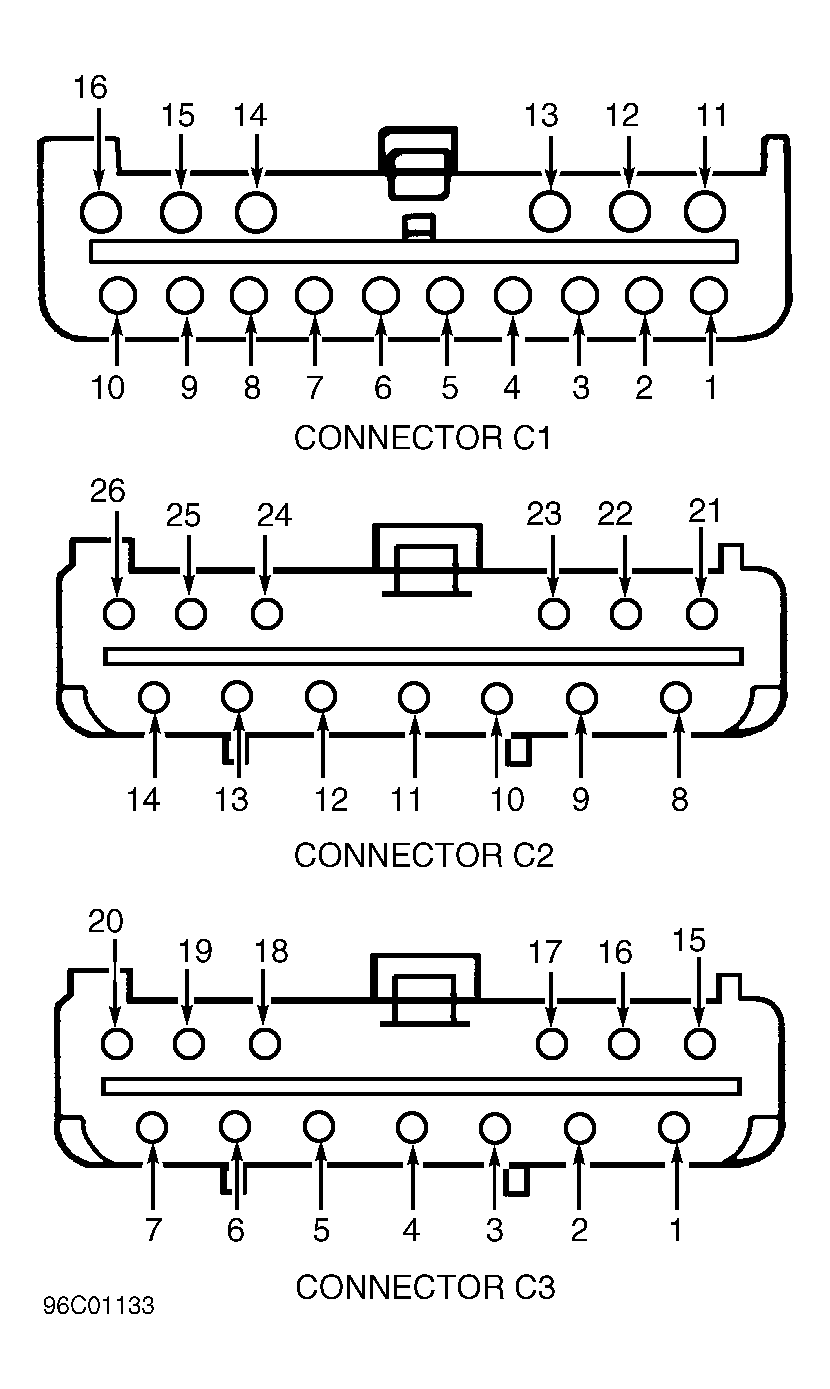

Fig 1: Identifying RKEM Connector Terminals (Mark VIII)

Courtesy of FORD MOTOR CO.
