Toe-In Adjustment (Rear)

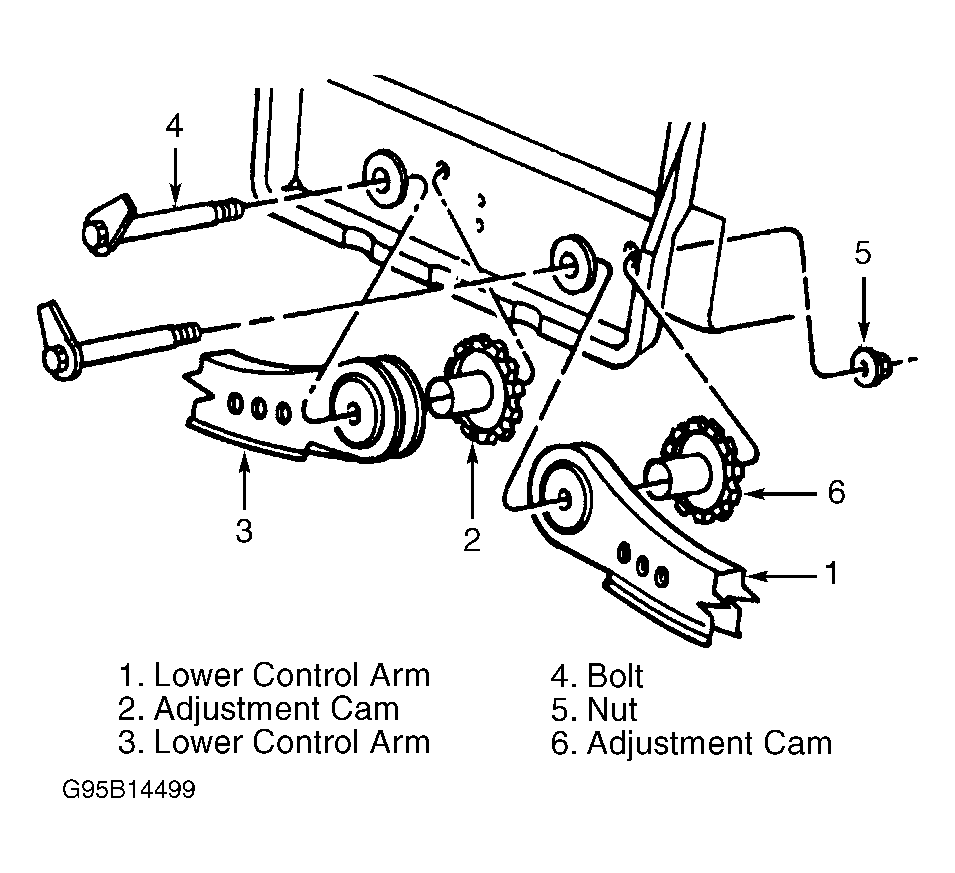

Loosen left or right rear lower suspension arm retaining bolt and rotate alignment cam until toe-in is within specification. See Figure . When adjustment completed, tighten retaining nut to specification. See TORQUE SPECIFICATIONS  .
