Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block

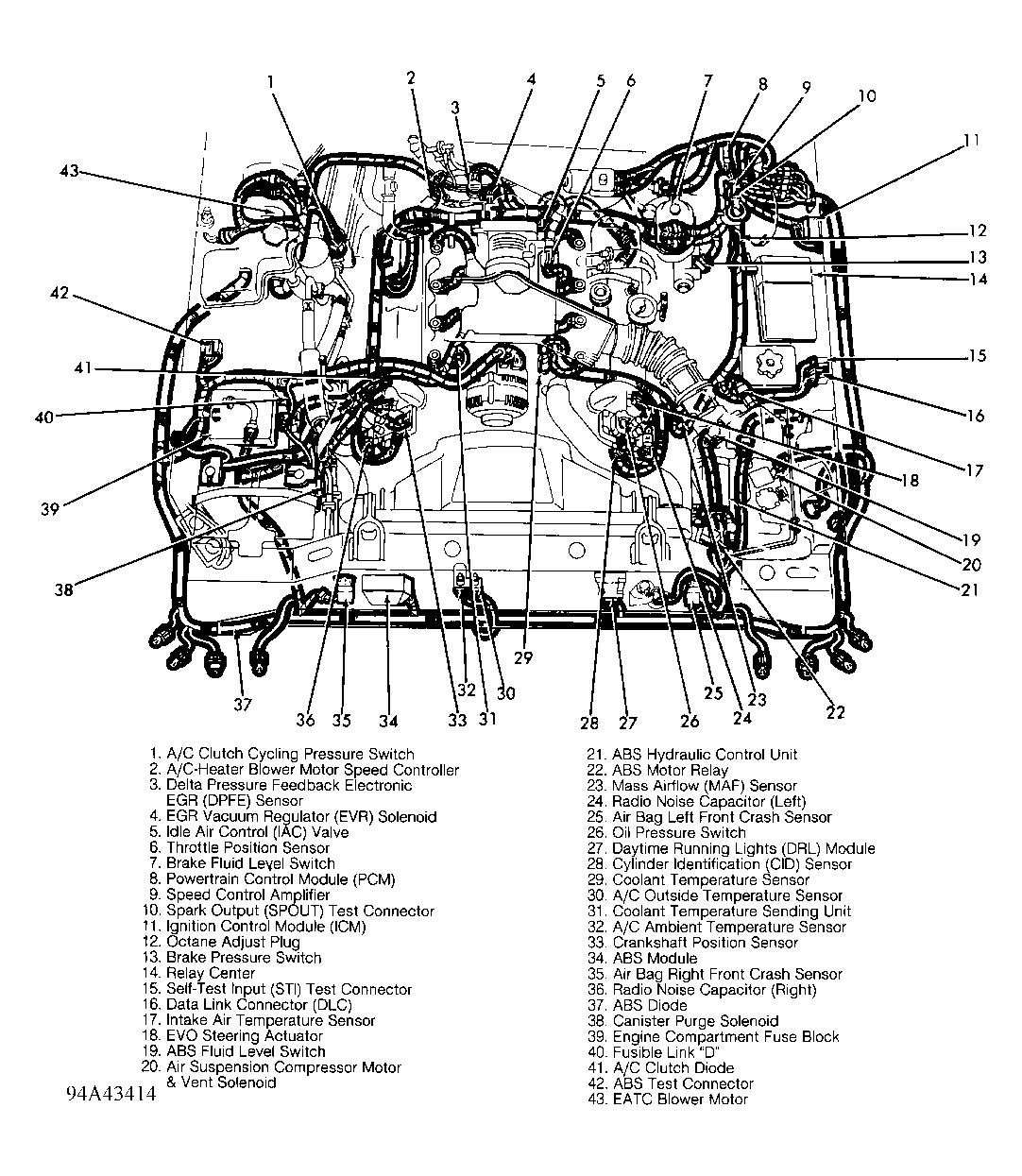

Engine Compartment In engine bay, on right inner fender panel. See Figure .

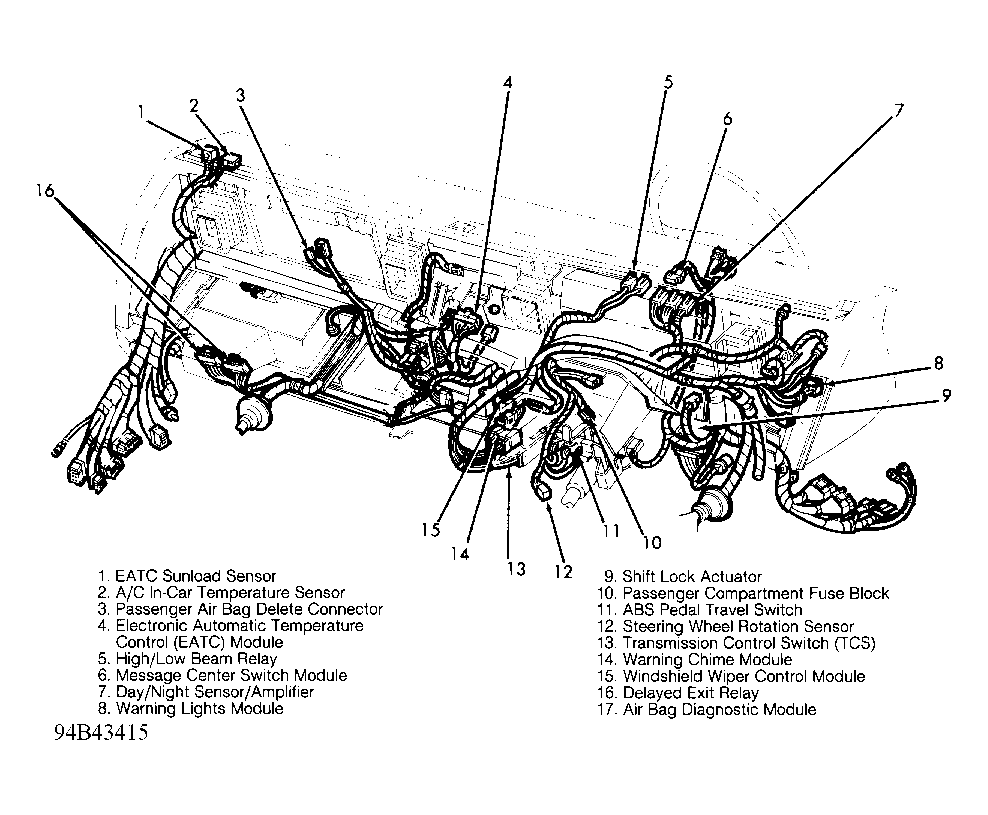

Passenger Compartment Behind left side of dash, to left of steering column. See Figure .
Fusible Link "D" (Gray) Charging System In right side of engine bay, near fuse block. See Figure .
Relay Center In engine bay, on top of left wheelwell. See Figure .
