Wiring Diagrams 1993

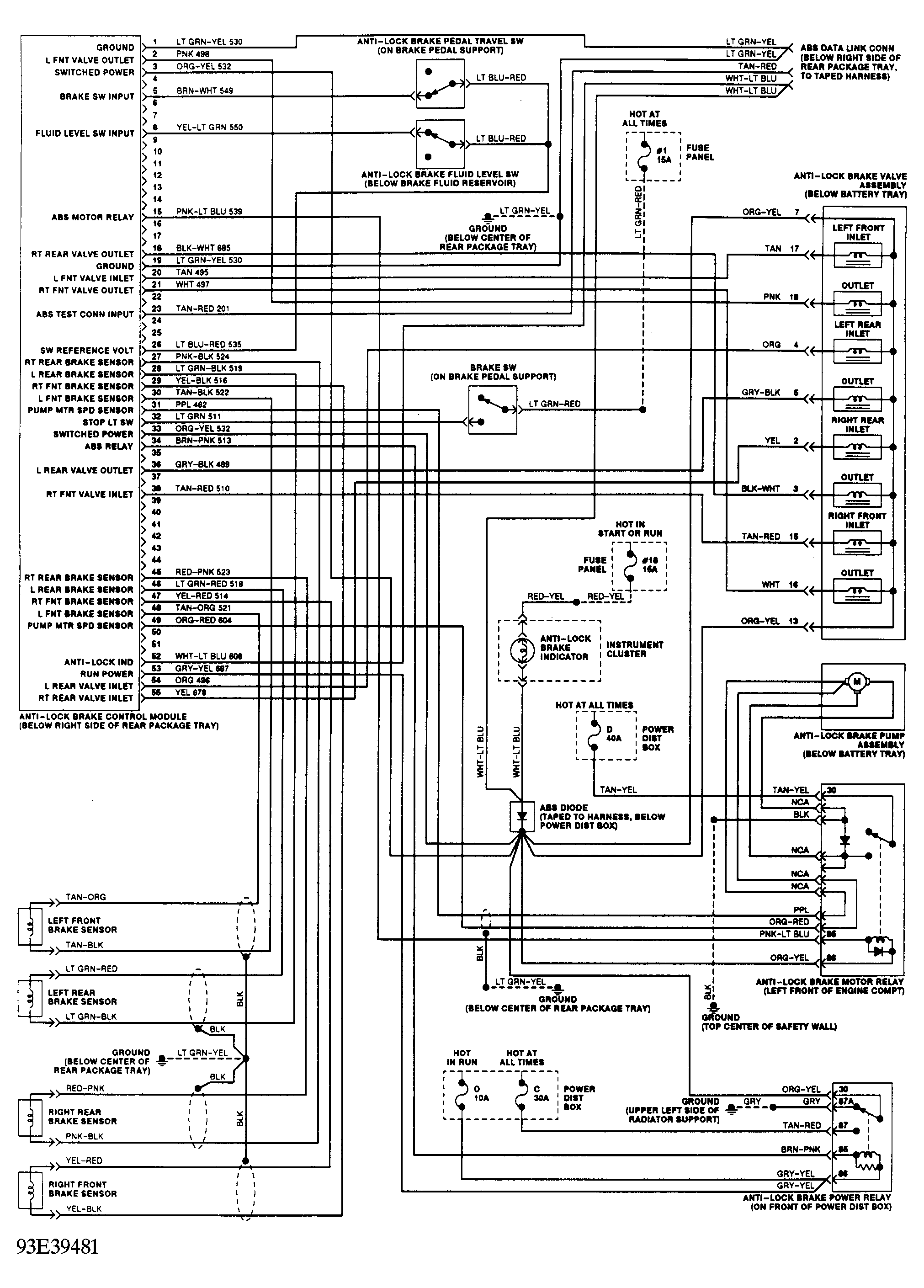

Fig 1: Anti-Lock Brake Wiring Diagram (Continental)
G93E39481Courtesy of FORD MOTOR CO.

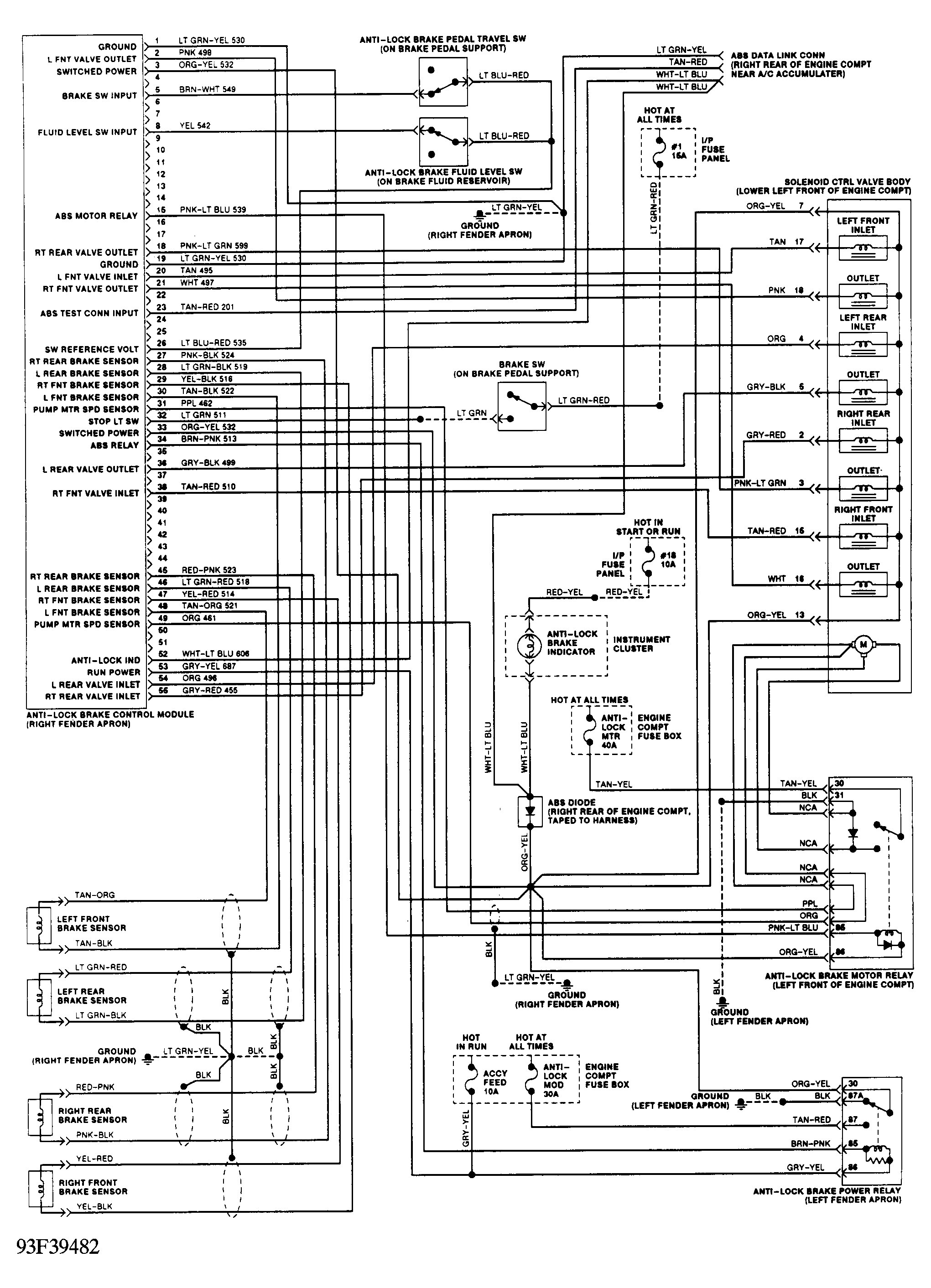

Fig 2: Anti-Lock Brake Wiring Diagram (Sable & Taurus)
G93F39482Courtesy of FORD MOTOR CO.

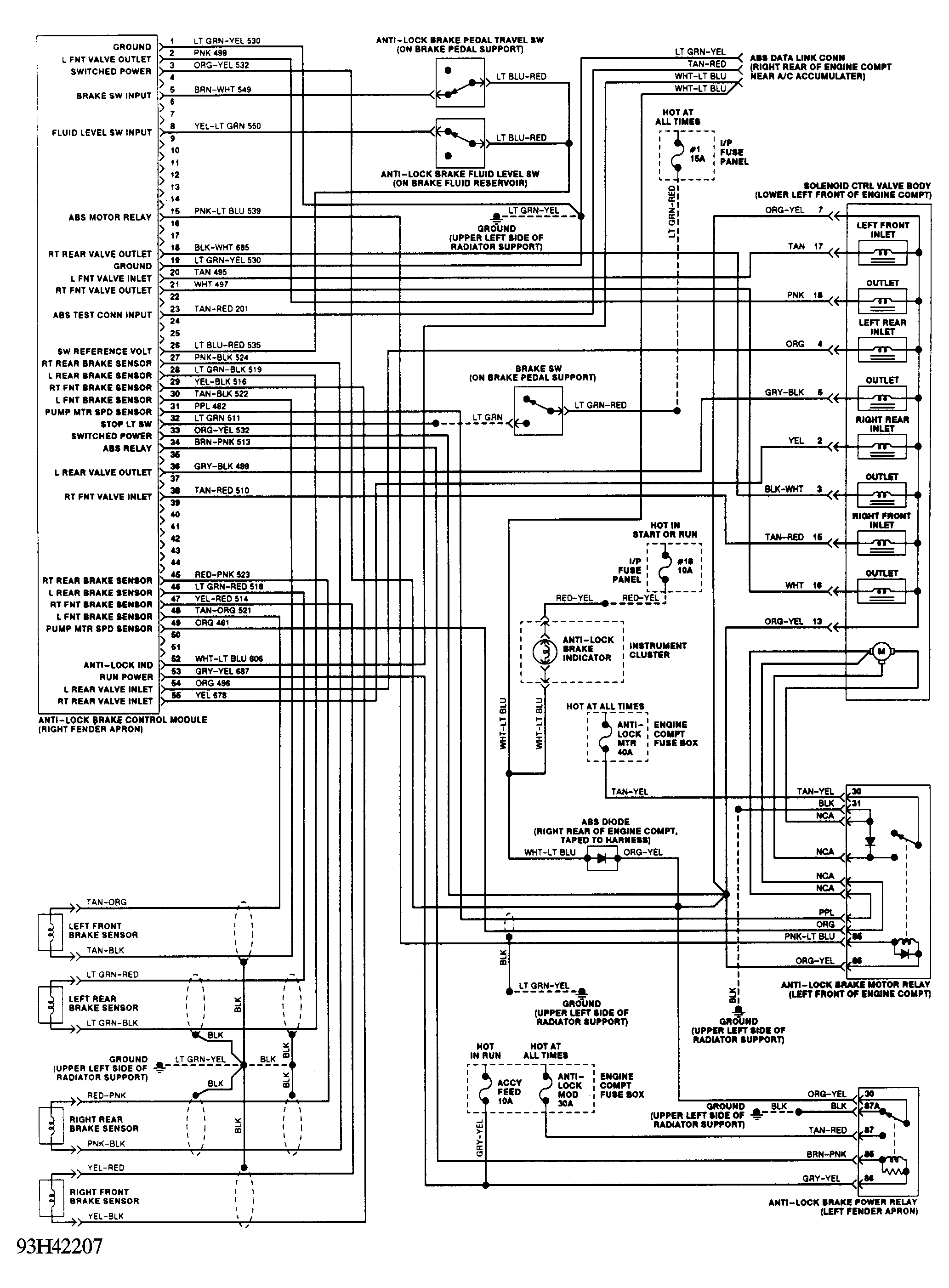

Fig 3: Anti-Lock Brake Wiring Diagram (Taurus SHO)
G93H42207Courtesy of FORD MOTOR CO.
