Home >> Lincoln >> 1992 >> Mark VII LSC >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Anti-Theft Systems >> Removal & Installation >> Control Module >> Removal

Control Module: Removal

  1. Disconnect battery ground cable.
  2. Open luggage compartment deck lid.

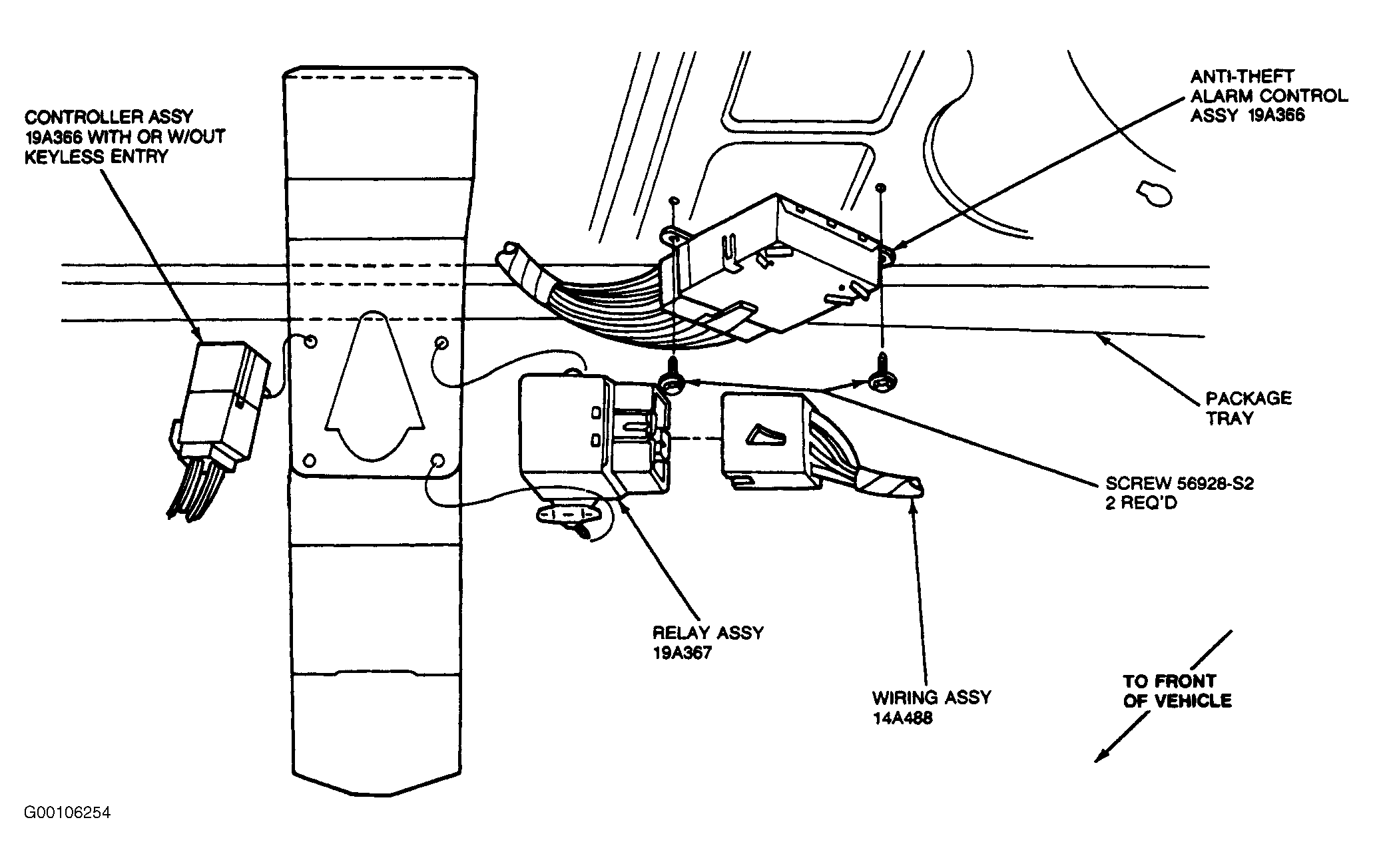

  3. Remove two screws attaching module to package tray. See Figure . Remove control module.
  4. Disconnect electrical connectors from control module.
