Front Window Regulator: Installation
The glass bracket assembly and regulator assembly are installed into the vehicle as one assembly. The glass bracket assembly may be disassembled from the regulator as described in steps 7 and 8 of Window Regulator, Removal.

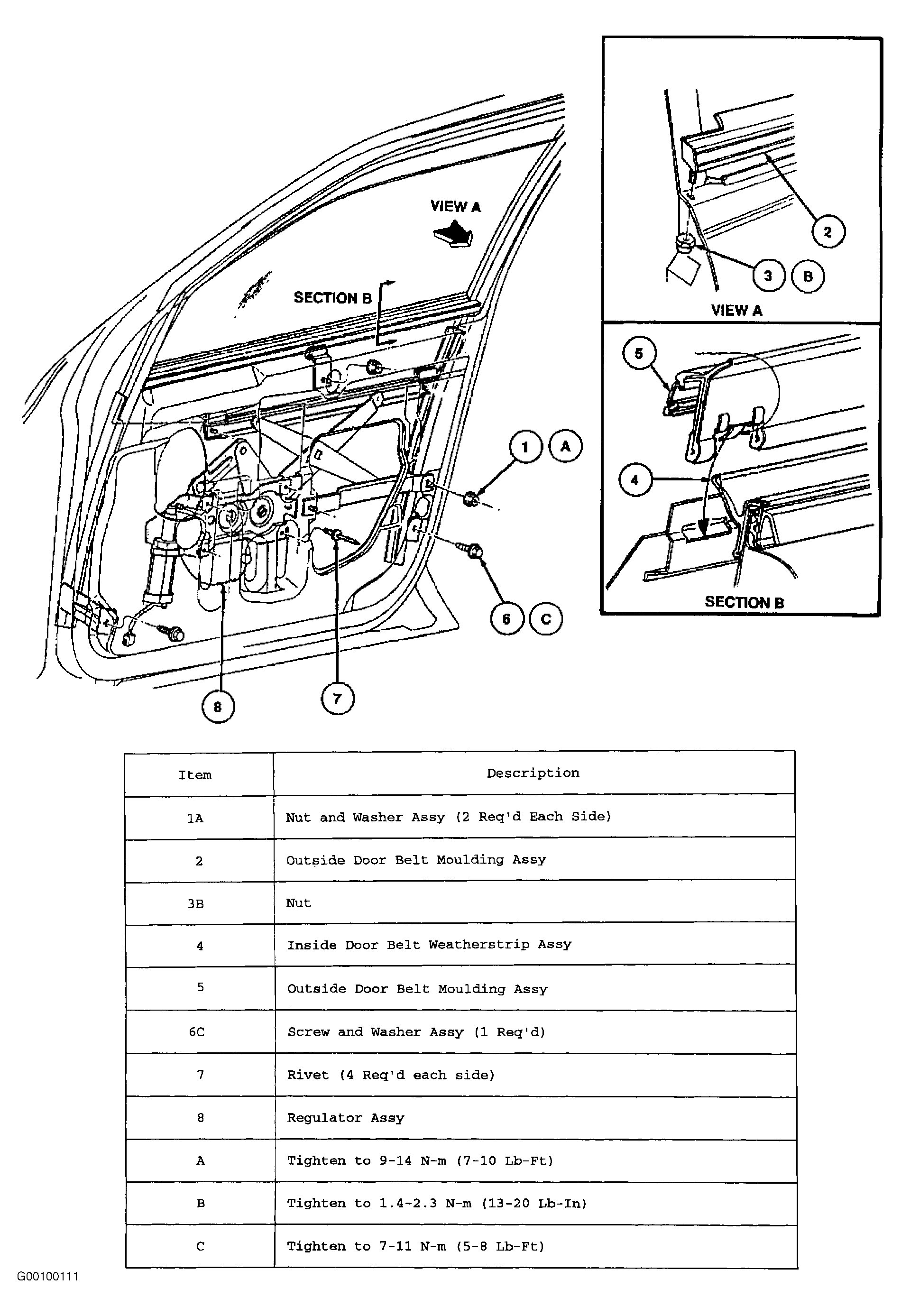

- Install regulator with preassembled glass bracket into vehicle. Set regulator base plate to door inner panel using base plate locator tab as a guide. See Fig 1 .
- Install four rivets to attach regulator to door inner panel.
- Install equalizer bracket.
- Install inside door belt weatherstrip and glass stabilizer.
- Lower regulator arms to access holes in door inner panel. Install door glass as outlined.
- Adjust glass to ensure proper alignment with glass run. Cycle glass for smooth operation.
- Install door trim panel and watershield. See DOOR TRIM PANELS .
