On-Vehicle Service: Lubrication

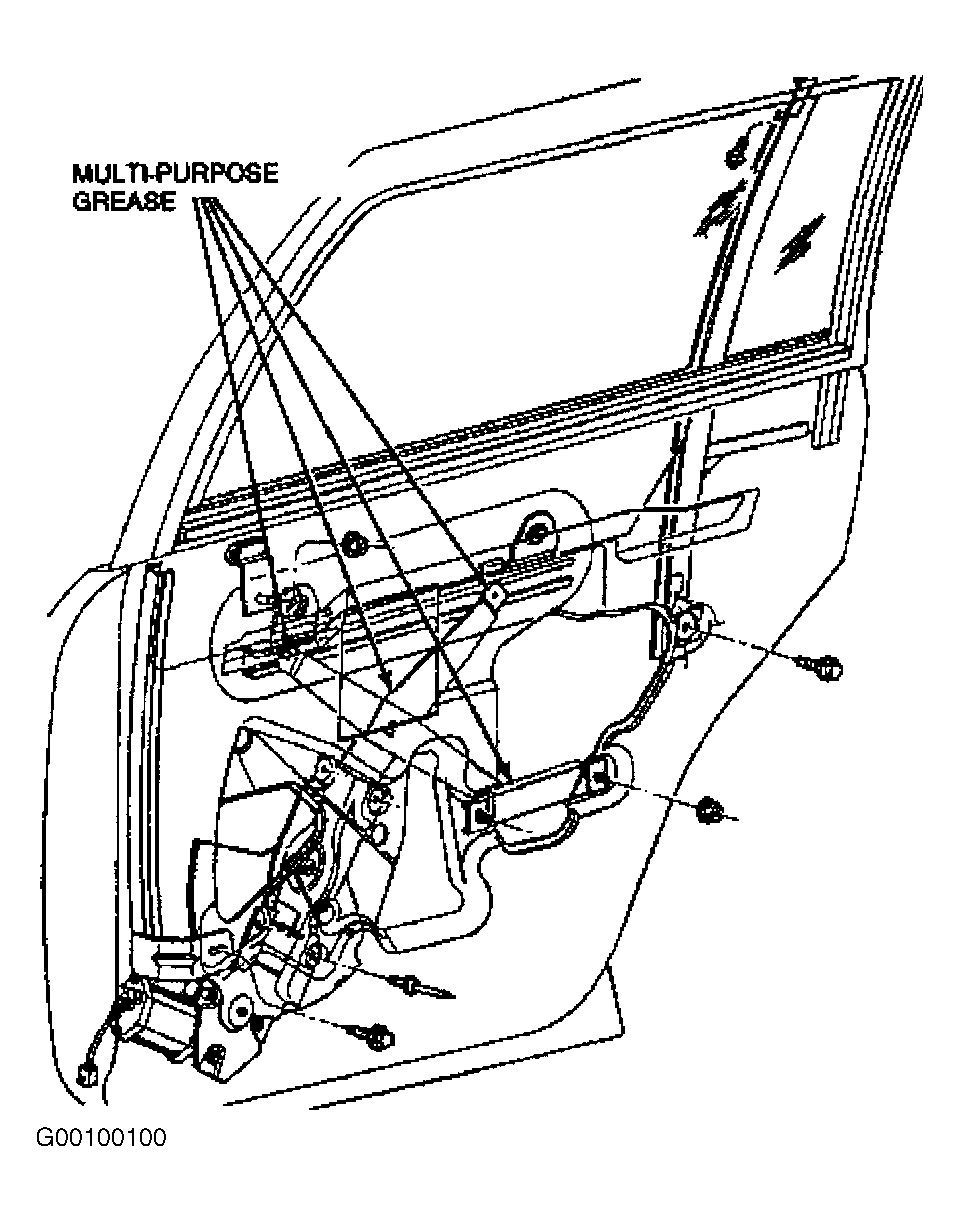

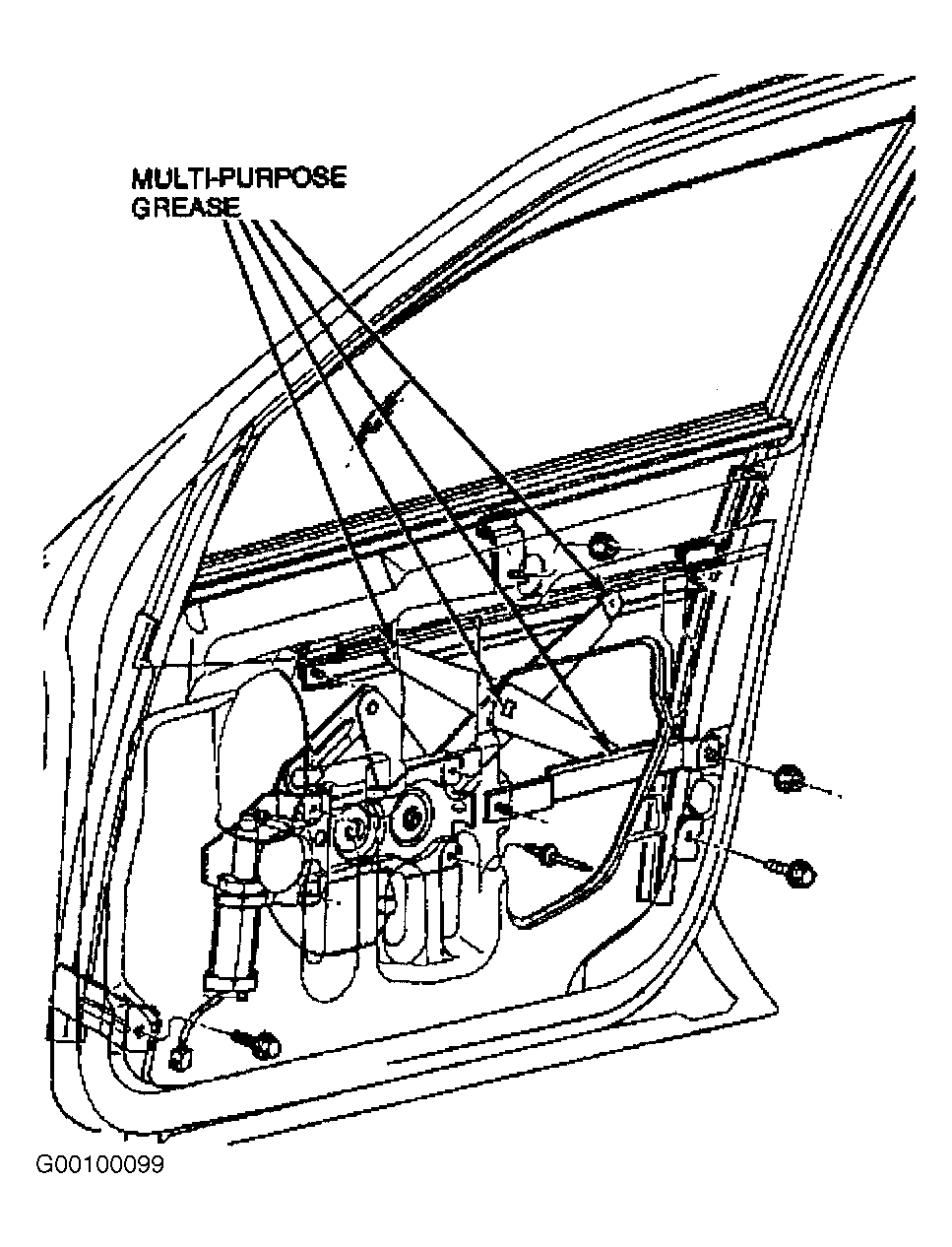

The door window mechanism should be well lubricated to provide ease of operation. The window glass mechanism should be lubricated whenever the glass channel or window regulator is removed or excessive effort is required to operate the windows. Lubricate entire outer surface prior to assembly with Multi-Purpose Grease (Spray) D7AZ-19584-AA (ESB-M1C106-B and ESR-M1C159-A) or equivalent. Use a generous amount of Multi-Purpose Grease (Tube) D0AZ-19584-AA (ESB-M1C93-A and ESR-M1C159-A) or equivalent on tube run for smooth operation. See Fig 1 or Fig 2 .
