Component Locations

COMPONENT LOCATIONS

Component Location
Fuse Panel Behind Left Side Of Instrument Panel, Left Of Steering Column
Power Window Motors In Bottom Of Each Door
Power Distribution Block On Left Inner Fender Panel
Ground G100 Top Front Of LH Fender Apron. See Fig 2 .
Ground G300 Below LH Side Of LH Front Seat. See Fig 3 .
Window Safety Relay Behind Lower Left Center Of Instrument Panel. See Fig 4 .

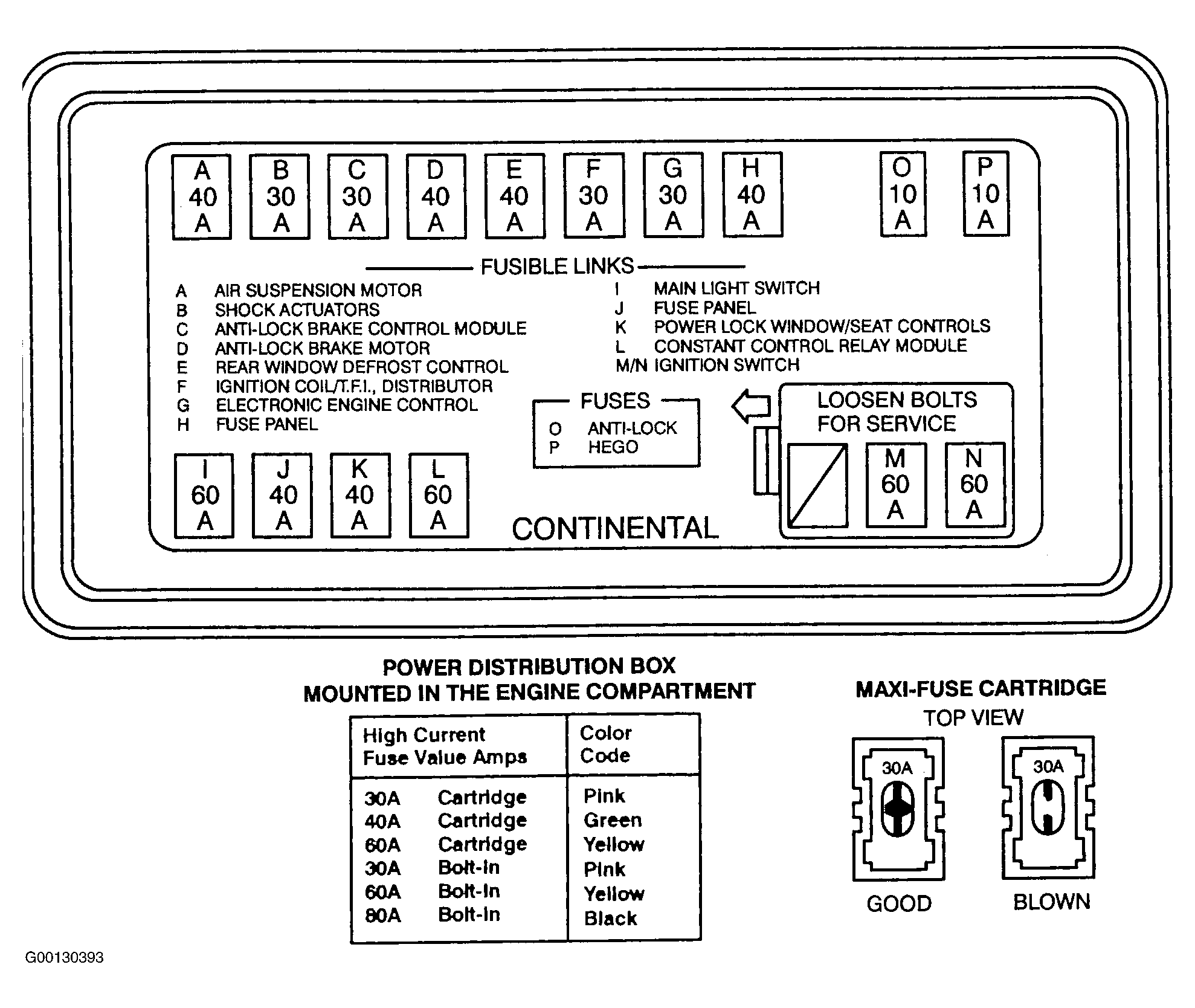

Fig 1: Identifying Power Distribution Box Components
G00130393
Fig 2: Locating Ground G100
G00101703

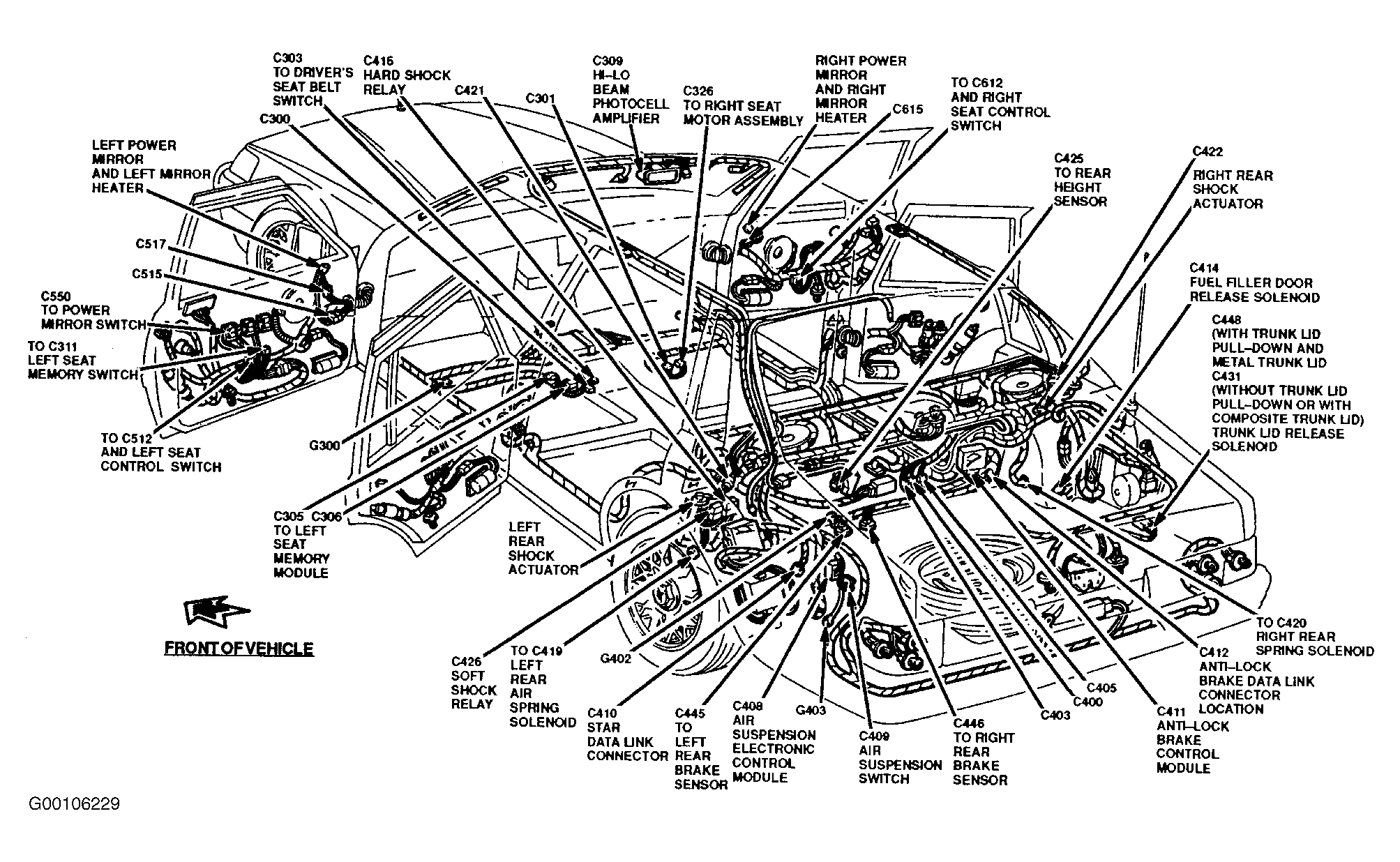

Fig 3: Locating Ground G300
G00106229

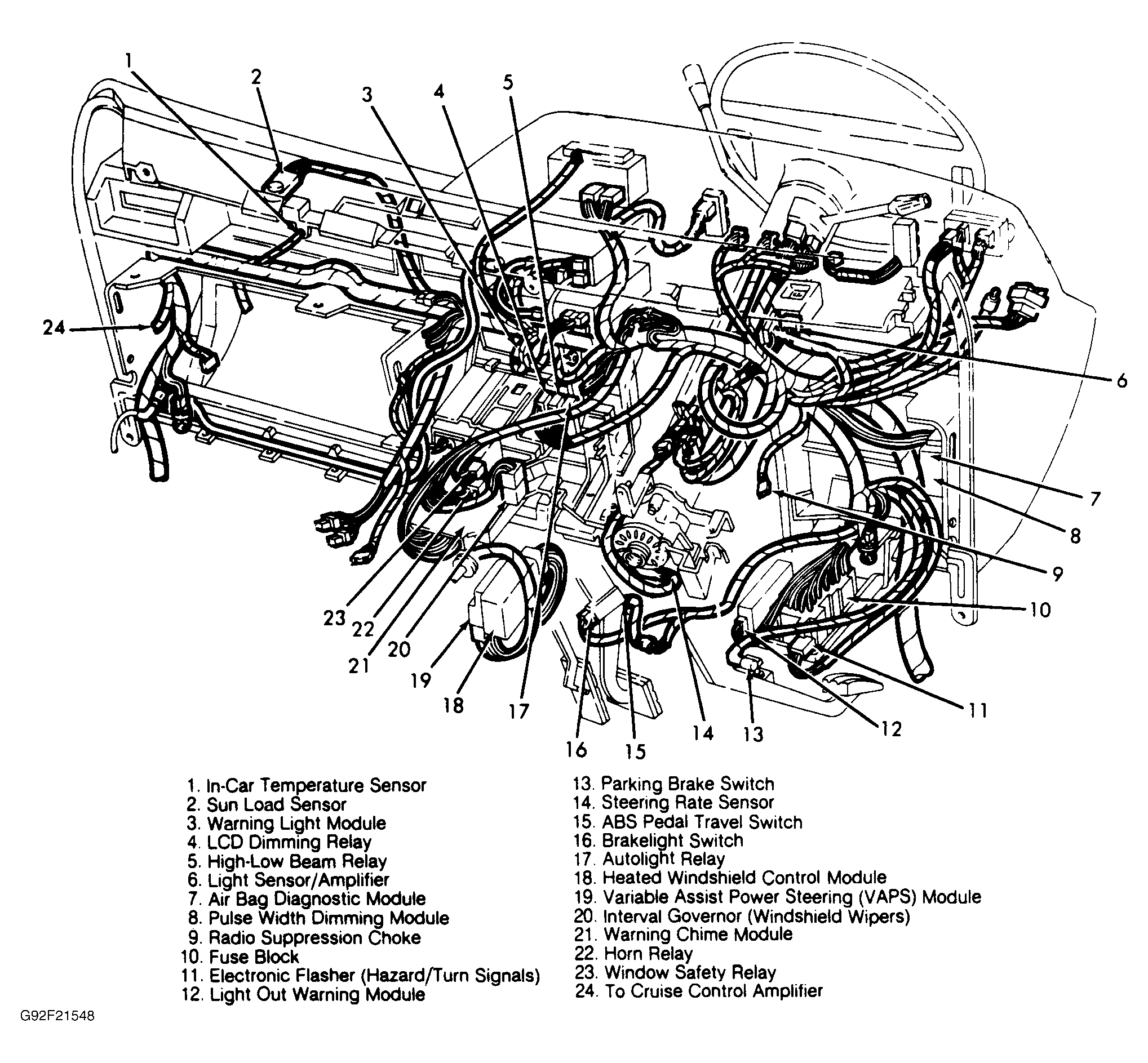

Fig 4: Locating Window Safety Relay
G92F21548
